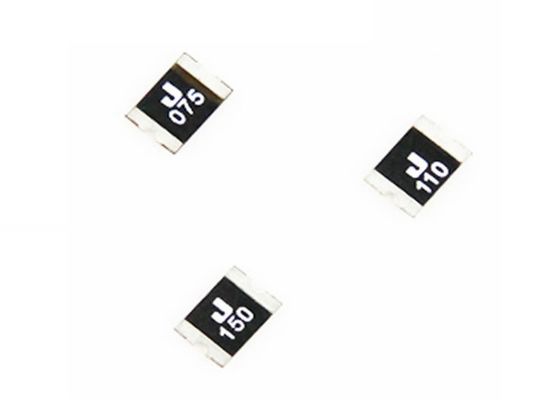

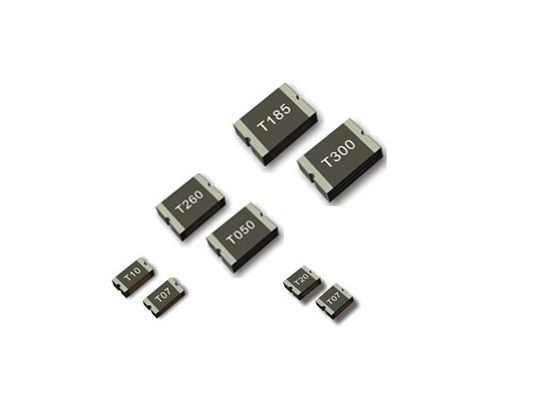

Compact Design MSMD Series 1812 Footprint 4.6x3.2mm 4532 SMT Surface Mount PTC Resettable Fuse 6-60VDC 0.1-3A

1 Reel
MOQ
Negotaible
Price
Compact Design MSMD Series 1812 Footprint 4.6x3.2mm 4532 SMT Surface Mount PTC Resettable Fuse 6-60VDC 0.1-3A
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Surface Mount PTC Resettable Fuse
Footprint: 1812(4532)
Dimension: 4.5*3.2mm
V Max: 6.0 - 60.0 VDC
Imax: 10 - 100 A
I Hold: 0.1 - 3 A
Attachment: PCB,SMT
Allowable Operation Temperature: -40 °C To 85 °C
Material: Terminals: Electroless Nickel Under Immerion Gold
Weight: 0.025g
Solderability: 245 °C / 3 Sec
Resistance To Soldering Heat: 260 °C / 10 Sec
High Light:

smd ptc resettable fuse

,

pptc resettable fuse
Basic Infomation
Certification: UL.RoHS
Model Number: MSMD Series
Payment & Shipping Terms
Packaging Details: 1500pcs per reel or 2000pcs per reel
Delivery Time: 10 Workdays
Payment Terms: T/T
Supply Ability: 100,000,000 Pieces Per Month
Product Description



Compact Design MSMD Series 1812 Footprint 4.6x3.2mm 4532 SMT Surface Mount PTC Resettable Fuse 6-60VDC 0.1-3A





Quick Details



100% compatible with the MSMD type Directly solderable on printed circuit boards,The 1812 Series PTC provides surface mount overcurrent protection for applications where resettable protection is desired.



Current - Hold (Ih) (Max): 100mA ~ 3A
Current - Max: 10A ~ 100A
Current - Trip (It): 300mA ~ 5.2A
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Package / Case: 1812 (4532 Metric), Concave
Packaging: Tape & Reel (TR)
Resistance - Initial (Ri) (Min): 12 mOhms ~ 1.6 Ohms
Resistance - Post Trip (R1) (Max): 40 mOhms ~ 15 Ohms
Time to Trip: 20ms ~ 5s
Type: Polymeric
Voltage - Max: 6V ~ 60V



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Electronics Perormances



P/N













(Ω)

IH, (A)

IT,(A)

Vmax,(v)

Imax,(A)

(A)

(Sec.)

Pd typ(W)

Rmin

R1max

MSMD010

0.10

0.30

60

10

0.5

1.50

0.8

0.700

15.000

MSMD014

0.14

0.34

60

10

1.5

0.15

0.8

0.400

6.500

MSMD020

0.20

0.40

30

10

8.0

0.02

0.8

0.750

5.00

MSMD020/60

0.20

0.40

60

10

1.5

0.15

0.8

0.400

6.000

MSMD030

0.30

0.60

30

10

8.0

0.10

0.8

0.300

3.000

MSMD035

0.35

0.70

16

10

8.0

0.10

0.8

0.200

1.800

MSMD050

0.50

1.00

16

30

8.0

0.15

0.8

0.150

1.000

MSMD075

0.75

1.50

16

40

8.0

0.20

0.8

0.110

0.450

MSMD075/24

0.75

1.50

24

40

8.0

0.20

0.8

0.110

0.450

MSMD075/33

0.75

1.50

33

40

8.0

0.20

0.8

0.110

0.450

MSMD110

1.10

2.20

6

100

8.0

0.30

0.8

0.040

0.225

MSMD110/16

1.10

2.20

16

100

8.0

0.50

0.8

0.040

0.225

MSMD110/24

1.10

2.20

24

100

8.0

0.50

0.8

0.055

0.180

MSMD125

1.25

2.50

6

40

8.0

0.40

0.8

0.035

0.140

MSMD150

1.50

3.00

6

100

8.0

0.50

0.8

0.030

0.120

MSMD150/12

1.50

3.00

12

100

8.0

0.50

1.0

0.030

0.120

MSMD150/24

1.50

3.00

24

20

8.0

1.50

1.0

0.030

0.140

MSMD160

1.60

3.20

8

100

8.0

0.50

0.8

0.025

0.120

MSMD160/12

1.60

3.20

12

100

8.0

1.00

1.0

0.025

0.120

MSMD160/16

1.60

3.20

16

100

8.0

1.00

1.0

0.025

0.120

MSMD200

2.00

4.00

16

100

8.0

3.00

0.8

0.020

0.080

MSMD250/16

2.50

5.00

16

100

8.0

5.00

1.2

0.015

0.100

MSMD260

2.60

5.20

16

100

8.0

5.00

0.8

0.015

0.080

MSMD300

3.00

6.00

12

100

8.0

5.00

0.8

0.012

0.060





Product Dimensions & Marking (Unit: mm)



Compact Design MSMD Series 1812 Footprint 4.6x3.2mm 4532 SMT Surface Mount PTC Resettable Fuse 6-60VDC 0.1-3A 1

P/N

Marking



 A B C D
Min. Max. Min. Max. Min. Max. Min.

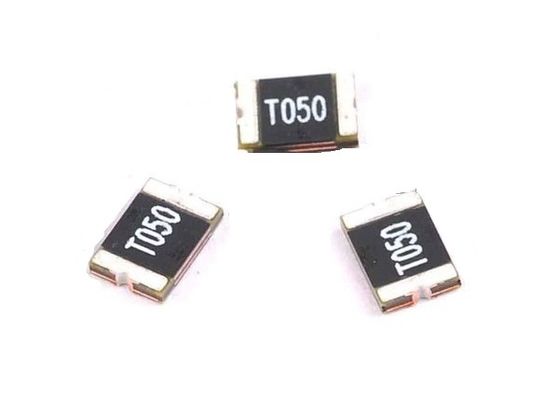

MSMD010 T010 4.37 4.73 3.07 3.41 0.80 1.20 0.30
MSMD014 T014 4.37 4.73 3.07 3.41 0.80 1.20 0.30
MSMD020 T020 4.37 4.73 3.07 3.41 0.80 1.20 0.30
MSMD020/60 T020 4.37 4.73 3.07 3.41 0.80 1.20 0.30
MSMD030 T030 4.37 4.73 3.07 3.41 0.80 1.20 0.30
MSMD035 T035 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD050 T050 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD075 T075 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD075/24 T075 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD075/33 T075 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD110 T110 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD110/16 T110 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD110/24 T110 4.37 4.73 3.07 3.41 0.90 1.30 0.30
MSMD125 T125 4.37 4.73 3.07 3.41 0.60 1.00 0.30
MSMD150 T150 4.37 4.73 3.07 3.41 0.45 0.85 0.30
MSMD150/12 T150 4.37 4.73 3.07 3.41 0.45 0.85 0.30
MSMD150/24 T150 4.37 4.73 3.07 3.41 0.90 1.30 0.30
MSMD160 T160 4.37 4.73 3.07 3.41 0.45 0.85 0.30
MSMD160/12 T160 4.37 4.73 3.07 3.41 0.45 0.85 0.30
MSMD160/16 T160 4.37 4.73 3.07 3.41 0.45 0.85 0.30
MSMD200 T200 4.37 4.73 3.07 3.41 0.70 1.10 0.30
MSMD250/16 T250 4.37 4.73 3.07 3.41 0.70 1.10 0.30
MSMD260 T260 4.37 4.73 3.07 3.41 0.70 1.10 0.30
MSMD300 T300 4.37 4.73 3.07 3.41 0.70 1.10 0.30





Reliability



Resistance to Soldering Heat
260 °C / 10 sec
Passing Aging
+85 °C, 1000 Hours -> +/- 5% Typical Resistance Change
Humidity Aging
+85 °C, 85% r.h., 1000 Hours -> +/- 5% Typical Resistance Change
Thermal Shock +85 °C to -40 °C, 20 Times -> +/- 10% Typical Resistance Change
Vibration
MIL-STD-883C, Method 2007.1, Test Condition A
Resistance to Solvents
MIL-STD-202, Methode 215





Application



Hard disk drives

PC motherboards

PC peripherals

PCMCIA cards

USB port protection

PCI cards

Plug and play protection for motherboards and peripherals

Game console port protection





Features



Fast response

Low resistance

Low profile

Compact design

Compatible with high temperature solders
