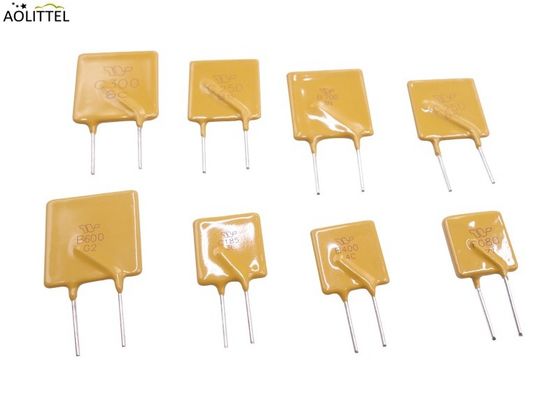

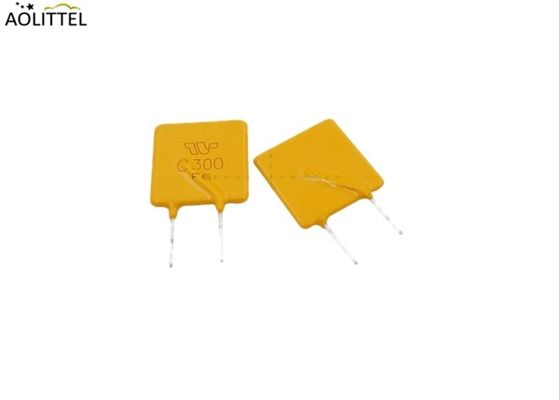

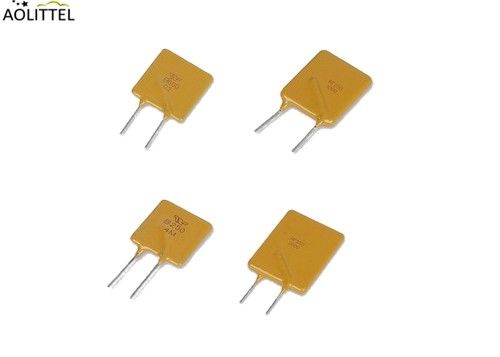

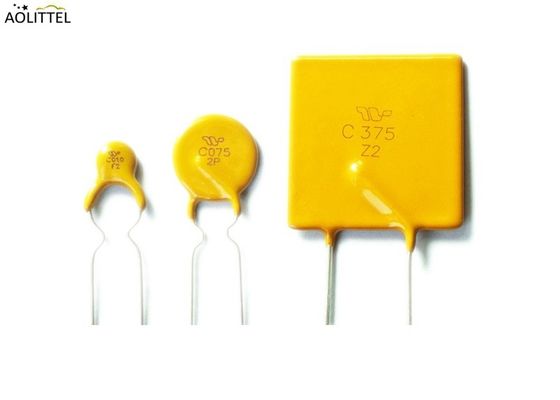

Universal 60V 72V 0.75A PolyTron PPTC Thermistor Radial PTC Resettable Fuse TRC075 For Automotive Application

1000 Pieces
MOQ
0.03 to 0.05 USD Per Pieces
Price
Universal 60V 72V 0.75A PolyTron PPTC Thermistor Radial PTC Resettable Fuse TRC075 For Automotive Application
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PPTC Thermistor Radial PTC Resettable Fuse
Hold Current: 0.75A
Rated Voltage: 60V/72V
Trip Current: 1.50A
Max Current: 40A
Max Trip Time: 6.3 Sec
Power: 0.9W
Flame Retardant Epoxy Polymer Insulating Material: UL 94V-0
Highlight:

smd ptc resettable fuse

,

positive temperature coefficient fuse
Basic Infomation
Certification: UL,CSA,TUV,SGS
Model Number: TRC075
Payment & Shipping Terms
Packaging Details: Bulk,1000pcs per polybag
Delivery Time: 10 Workdays
Payment Terms: T/T
Supply Ability: 10,000,000 Pieces Per Month
Product Description



Universal 60V 72V 0.75A PolyTron PPTC Thermistor Radial PTC Resettable Fuse TRC075 For Automotive Application





Application



• Medical equipment
• White goods
• Industrial power transmission
• Telecommunications
• Computers and peripherals
• Consumer and automotive electronics
• Rechargeable battery packs

• Automotive electronics



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Product features



• PolyTron™ radial leaded thru-hole PTC device

• Maximum 60 volts,even 72 volts

• Current ratings from 0.05 to 5 amps

• Fast time-to-trip

• Low resistance

• Halogen free, Lead free, RoHS compliant





Dimension (mm)



Universal 60V 72V 0.75A PolyTron PPTC Thermistor Radial PTC Resettable Fuse TRC075 For Automotive Application 1

P/N A B C D E Physical Characteristics
Max. Max. Typ. Min. Max. Style Lead Φ mm Material
TRC005 7.4 12.7 5.1 7.6 3.1 1 0.51 CP
TRC010 7.4 12.7 5.1 7.6 3.1 1 0.51 CP
TRC017 7.4 12.7 5.1 7.6 3.1 1 0.51 CP
TRC020 7.4 12.7 5.1 7.6 3.1 1 0.51 CP
TRC025 7.4 12.7 5.1 7.6 3.1 1 0.51 CP
TRC030 7.4 13.4 5.1 7.6 3.1 1 0.51 CP
TRC040 9.7 14.5 5.1 7.6 3.1 1 0.51 CP
TRC050 9.7 15.2 5.1 7.6 3.1 1 0.61 Cu
TRC065 9.7 15.2 5.1 7.6 3.1 1 0.61 Cu
TRC075 10.4 16.0 5.1 7.6 3.1 1 0.61 Cu
TRC090 11.7 16.7 5.1 7.6 3.1 1 0.61 Cu
TRC110 13.0 18.0 5.1 7.6 3.1 2 0.81 Cu
TRC135 14.5 19.6 5.1 7.6 3.1 2 0.81 Cu
TRC160 16.3 21.3 5.1 7.6 3.1 2 0.81 Cu
TRC185 17.8 22.9 5.1 7.6 3.1 2 0.81 Cu
TRC250 21.3 26.4 10.2 7.6 3.1 2 0.81 Cu
TRC300 24.9 30.0 10.2 7.6 3.1 2 0.81 Cu
TRC375 28.4 33.5 10.2 7.6 3.1 2 0.81 Cu
TRC500 28.4 33.5 10.2 7.6 3.1 2 0.81 Cu





Electrical Performances



P/N             (Ω)
IH, (A) IT,(A) Vmax,(v) Imax,(A) (A) (Sec.) PDtyp(W) Rmin Rmin R1max
TRC005 0.05 0.15 60 40 0.25 5.0 0.22 7.30 11.10 25.00
TRC010 0.10 0.20 60 40 0.50 4.0 0.38 2.30 8.10 12.0
TRC017 0.17 0.34 60/72 40 0.85 3.0 0.48 2.00 5.21 8.00
TRC020 0.20 0.40 60/72 40 1.00 2.2 0.40 1.30 2.84 4.50
TRC025 0.25 0.50 60/72 40 1.25 2.5 0.45 0.90 1.95 3.00
TRC030 0.30 0.60 60/72 40 1.50 3.0 0.50 0.70 1.36 2.10
TRC040 0.40 0.80 60/72 40 2.00 3.8 0.55 0.48 0.95 1.40
TRC050 0.50 1.00 60/72 40 2.50 4.0 0.75 0.38 0.78 1.20
TRC065 0.65 1.30 60/72 40 3.25 5.3 0.90 0.24 0.54 0.74
TRC075 0.75 1.50 60/72 40 3.75 6.3 0.90 0.23 0.45 0.62
TRC090 0.90 1.80 60/72 40 4.50 7.2 1.00 0.14 0.31 0.49
TRC110 1.10 2.20 60/72 40 5.50 8.2 1.50 0.15 0.25 0.40
TRC135 1.35 2.70 60/72 40 6.75 9.6 1.70 0.12 0.19 0.32
TRC160 1.60 3.20 60/72 40 8.00 11.4 1.90 0.09 0.14 0.24
TRC185 1.85 3.70 60/72 40 9.25 12.6 2.10 0.08 0.12 0.21
TRC250 2.50 5.00 60/72 40 12.50 15.6 2.50 0.05 0.08 0.15
TRC300 3.00 6.00 60/72 40 15.00 19.8 2.80 0.04 0.06 0.12
TRC375 3.75 7.50 60/72 40 18.75 24.0 3.20 0.03 0.05 0.10
TRC500 5.0 10.0 60/72 40 25.0 24.0 3.2 0.02 0.05 0.100



Recommended Wave Solder Profile.



Universal 60V 72V 0.75A PolyTron PPTC Thermistor Radial PTC Resettable Fuse TRC075 For Automotive Application 2

Notes:

1. (1-3)°C/sec

2. Approximately 200°C/sec

3. 5°C/sec Maximum





Environmental Specifications



Characteristic Value
Operating Temperature Range -40°C to +85°C
Surface Temperature Trip State 125°C max
Thermal Shock +85°C to -40°C , 10 cycles, 5% typical resistance change
Solvent Resistance MIL-STD-202 Method 215, no change
Humidity Age Test +85°C, 85% R.H., 1000 hours ±5% typical resistance change. Specified temperature (23°C ± 3°C)
Storage Temperature Range -10°C to +40°C
Storage Duration 12 months
Storage Relative Humidity -75%
Storage Conditions Keep away from corrosive atmosphere and sunlight





Recommended Reworking Conditions with Soldering Iron



• Soldering Iron Tip Temperature: 360°C max.
• Solder Time: 3 seconds max.
• Distance from Thermistor: 2mm min.





Thermal Derating Chart – I hold (Amps)



P/N Ambient Operating Temperature
-40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃
TRC005 0.08 0.07 0.06 0.05 0.04 0.04 0.03 0.03 0.02
TRC010 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.04
TRC017 0.26 0.23 0.20 0.17 0.14 0.12 0.11 0.09 0.07
TRC020 0.31 0.27 0.24 0.20 0.16 0.14 0.13 0.11 0.08
TRC025 0.39 0.34 0.30 0.25 0.20 0.18 0.16 0.14 0.10
TRC030 0.47 0.41 0.36 0.30 0.24 0.22 0.19 0.16 0.12
TRC040 0.62 0.54 0.48 0.40 0.32 0.29 0.25 0.22 0.16
TRC050 0.78 0.68 0.60 0.50 0.41 0.36 0.32 0.27 0.20
TRC065 1.01 0.88 0.77 0.65 0.53 0.47 0.41 0.35 0.26
TRC075 1.16 1.02 0.89 0.75 0.61 0.54 0.47 0.41 0.30
TRC090 1.40 1.22 1.07 0.90 0.73 0.65 0.57 0.49 0.36
TRC110 1.71 1.50 1.31 1.10 0.89 0.79 0.69 0.59 0.44
TRC135 2.09 1.84 1.61 1.35 1.09 0.97 0.85 0.73 0.54
TRC160 2.48 2.18 1.90 1.60 1.30 1.15 1.01 0.86 0.64
TRC185 2.87 2.52 2.20 1.85 1.50 1.33 1.17 1.00 0.74
TRC250 3.88 3.40 2.98 2.50 2.03 1.80 1.58 1.35 1.00
TRC300 4.65 4.08 3.57 3.00 2.43 2.16 1.89 1.62 1.20
TRC375 5.81 5.10 4.46 3.75 3.04 2.70 2.36 2.03 1.50
TRC500 7.75 6.80 5.95 5.00 4.05 3.60 3.15 2.71 2.00


Package info


Model                                              Q’ty/bag

TRC005-TRC090                          1000 pcs

TRC110-TRC185                            500 pcs

TRC250-TRC500                            200 pcs
