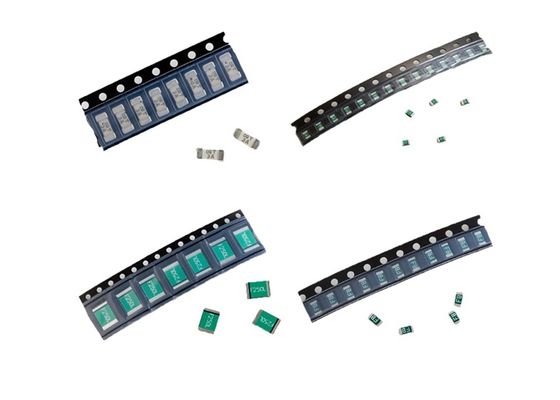

Reset Chip Polymer PTC Thermistor Surface Mount SMD PPTC Resettable Fuses 2012 0.1A 15V For USB Devices

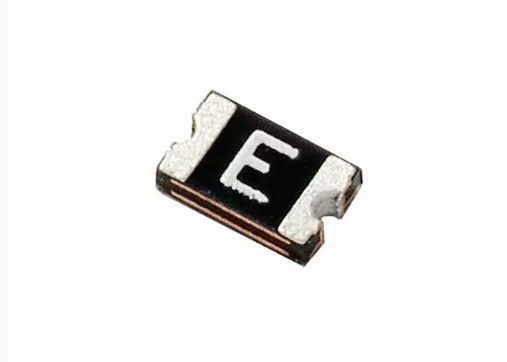

Description
Aolittel's unique polymer formulation PTC (positive temperature coefficient) devices offer superior circuit protection, with added resettable feature, in traditional radial lead AND SMD Chip packages. Similar to our extensive line of traditional fuse products, our resettable fuses protect against harmful overcurrent and short circuit conditions. However, our PTC devices can also be used to protect against over temperature conditions not necessarily caused by excessive current. Aolittel's PTC devices will reset after power to the circuit is removed, the fault is cleared, and power is reapplied to the circuit. This reset-ability protects electronic equipment, which remains fully functional, and eliminates the need for service personnel to physically replace a fuse. Our PTC devices are used in a wide variety of industrial, computer, battery, consumer electronics, telecom and automotive applications where they help protect valuable electronic systems and reduce warranty and services costs.
______________________________________________________________________________
Download________
Electrical Characteristics at 23℃
| P/N |
Hold current |
Trip current |
Max.voltage |
Max current |
Max time to trip |
Rated power |
Resistance(Ω) |
| IH, (A) |
IT,(A) |
Vmax,(v) |
Imax,(A) |
(A) |
(Sec.) |
Pd typ(W) |
Rmin |
R1max |
| PSMD010 |
0.10 |
0.30 |
15.0 |
40 |
0.5 |
1.50 |
0.50 |
1.000 |
7.500 |
| PSMD020 |
0.20 |
0.50 |
9.0 |
40 |
8.0 |
0.02 |
0.50 |
0.650 |
3.500 |
| PSMD035 |
0.35 |
0.75 |
6.0 |
40 |
8.0 |
0.10 |
0.50 |
0.250 |
1.200 |
| PSMD050 |
0.50 |
1.00 |
6.0 |
40 |
8.0 |
0.10 |
0.50 |
0.150 |
0.900 |
| PSMD075 |
0.75 |
1.50 |
6.0 |
40 |
8.0 |
0.20 |
0.60 |
0.090 |
0.350 |
| PSMD100 |
1.00 |
2.00 |
6.0 |
40 |
8.0 |
0.30 |
0.60 |
0.060 |
0.250 |
| PSMD110 |
1.10 |
2.20 |
6.0 |
40 |
8.0 |
0.30 |
0.60 |
0.060 |
0.210 |
Features
RoHS & Halogen-Free (HF) compliant
Hold current ratings from 0.05 to 3A
Voltage ratings from 6V computer and electronic applications to 60V
Operating & storage temperature range: -40~+85℃
Agency Approval: UL / cUL / TUV
Compact design to save board space - 0805 footprint, Miniature 0805 SMT package
Protects against overcurrents, short circuits, and high temperatures
Resettable - no need to replace
Small size results in very fast time to react to fault events
Symmetrical design
Low profile
Recommended Applications
USB port protection - USB 2.0, 3.0 & OTG
HDMI 1.4 Source protection
PC motherboards - Plug and Play protection
Mobile phones - Battery and port protection
PDAs / digital cameras
Game console port protection
Portable Electronics
Port Protection
Test Equipment
Computers & Peripherals

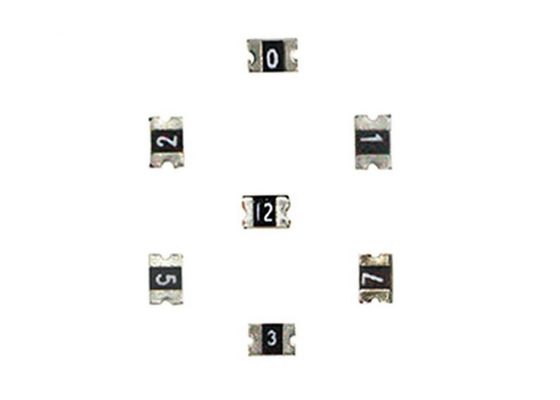

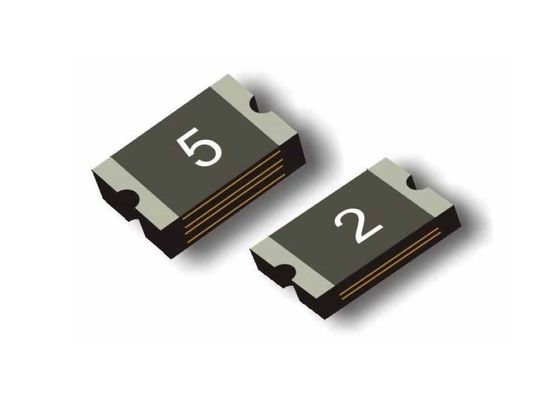

Structure & Dimensions
| P/N |
Marking
|
A |
B |
C |
D |
| Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
| PSMD010 |
1 |
2.00 |
2.30 |
1.20 |
1.50 |
0.55 |
0.95 |
0.20 |
| PSMD020 |
2 |
2.00 |
2.30 |
1.20 |
1.50 |
0.55 |
0.95 |
0.20 |
| PSMD035 |
3 |
2.00 |
2.30 |
1.20 |
1.50 |
0.40 |
0.80 |
0.20 |
| PSMD050 |
4 |
2.00 |
2.30 |
1.20 |
1.50 |
0.40 |
0.80 |
0.20 |
| PSMD075 |
5 |
2.00 |
2.30 |
1.20 |
1.50 |
0.75 |
1.25 |
0.20 |
| PSMD100 |
6 |
2.00 |
2.30 |
1.20 |
1.50 |
0.75 |
1.25 |
0.20 |
| PSMD110 |
6 |
2.00 |
2.30 |
1.20 |
1.50 |
0.75 |
1.25 |
0.20 |
Ihold & Itrip Thermal Derating Curve
Thermal Derating Chart – I hold (Amps)
| P/N |
Ambient Operating Temperature |
| -40℃ |
-20℃ |
0℃ |
25℃ |
40℃ |
50℃ |
60℃ |
70℃ |
85℃ |
| PSMD010 |
0.15 |
0.13 |
0.12 |
0.10 |
0.09 |
0.08 |
0.07 |
0.06 |
0.05 |
| PSMD020 |
0.28 |
0.25 |
0.23 |
0.20 |
0.17 |
0.14 |
0.12 |
0.10 |
0.07 |
| PSMD035 |
0.47 |
0.44 |
0.39 |
0.35 |
0.30 |
0.27 |
0.24 |
0.20 |
0.14 |
| PSMD050 |
0.68 |
0.62 |
0.55 |
0.50 |
0.40 |
0.37 |
0.33 |
0.29 |
0.23 |
| PSMD075 |
1.00 |
0.90 |
0.79 |
0.75 |
0.63 |
0.57 |
0.53 |
0.42 |
0.35 |
| PSMD100 |
1.45 |
1.35 |
1.20 |
1.00 |
0.92 |
0.84 |
0.75 |
0.65 |
0.52 |
| PSMD110 |
1.45 |
1.35 |
1.20 |
1.10 |
0.92 |
0.84 |
0.75 |
0.65 |
0.52 |
