UL Standard V-0 Self-extinguising ATM APM Micro MINI Blade Auto Fuse 11mm 15A 32V Blue 10A 7.5A 5A For Car Truck Boat
Features
Rated voltage: less than 32V DC
Choose higher-order materials to 58V
Cause breaking capacity: 1000A @ 32V DC
Operating temperature: -40 C ~ + 125 C
Blade fuses (also called spade or plug-in fuses), with a plastic body and two prongs that fit into sockets, are mostly used in cars, trucks and other vehicles.
Each fuse is printed with the rated current in ampheres on the top.
Specifically designed for amp, cars, trucks, car amp, i20 car, mini atm, rv, atc, ford, taxi, SUV, boat, general DC applications etc
Transparent for quick detection of blown fuses
Color Colored coded with documentation for confident and easy installation
Protect your car and your electrical device from short circuit, overload etc.
Mini-Blade Automotive Fuses
Equivalent to MIN and ATM fuses
Voltage rating of 32Vdc
Used for low voltage applications
Specifications
| Attribute |
Value |
| Current Rating |
15 A |
| Fuse Type |
Blade |
| Blade Size |
Mini |
| Voltage Rating |
32 V |
| Colour |
Blue |
| Width |
3.8mm |
| Height |
16.5mm |
| Minimum Operating Temperature |
-55°C |
| Maximum Operating Temperature |
+125°C |
| Operating Temperature Range |
-55 → +125 °C |
Size(mm)
Part Numbering
| Ampere Rating(A) |
Part Number |
Housing Colors |
Resistance Value |
Voltage Drop |

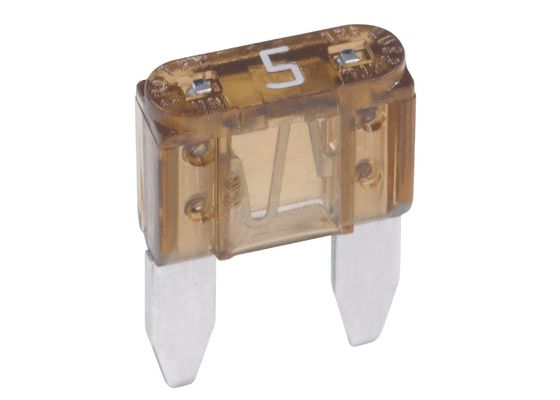

| 5A |
1271 |
Tan |
16.7 mΩ |
112 mV |
| 7.5A |
1272 |
Brown |
11.1 mΩ |
112 mV |

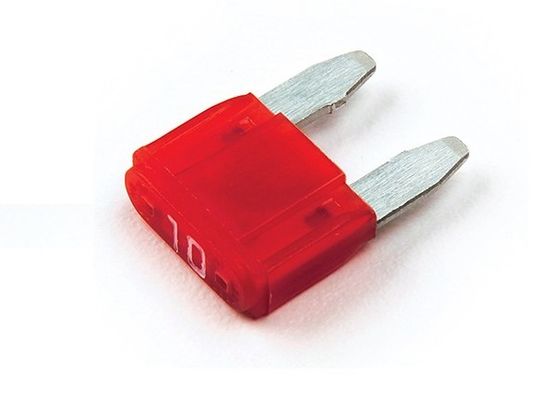

| 10A |
1273 |
Red |
7.82 mΩ |
106 mV |

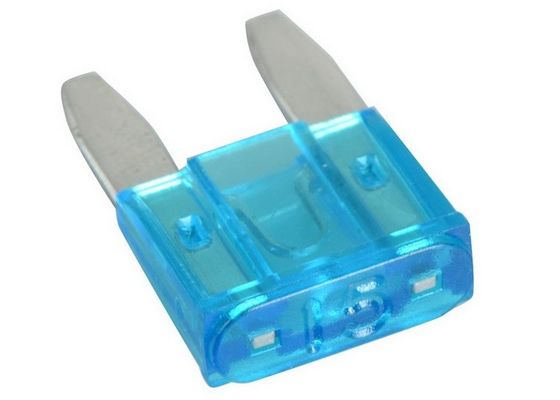

| 15A |
1274 |
Blue |
4.93 mΩ |
99 mV |
Time-Current Characteristic
| % of Ampere Rating(A) |
Operating Time |
| MIN |
MAX |
| 110% |
100 hrs. |
- |
| 135% |
0.75 sec. |
600 sec. |
| 160% |
0.25 sec. |
50 sec. |
| 200% |
0.15 sec. |
5 sec. |
| 350% |
0.04 sec. |
0.5 sec. |
| 600% |
0.02 sec. |
0.1 sec. |
Description
The blade fuses are fast-acting, blade-mounting 15A car fuses, features plastic housing with push-on spade terminals.Designed for auto, battery and general DC appliancations, fit most type of fuse holders or blocks.
These Automobile Blade Fuses are perfect for professionals, DIYers, and more.
Implementation of standards
SAE J2077 , JASO D612
ISO 8820-3 ,QC/T 420
Time-Current Characteristic Curve
Blade Fuse Series
|
BFSL Mini Blade Fuse : This state-of-the-art blade fuse was realized by reducing the width of the BFMN to offer space reduction
|
BFSL-3 Auto Fuse : BFSL-3 is a multi terminal state-of-the-art blade fuse
|
|
BFLP Automotive Fuse : BFLP is a lower-cost and more compact BFMN
|
BFMN Car Fuse : BFMN is a lower-cost and more compact BFAT
|
|
BFMN-S Auto Fuse :The BFMN-S is a blade fuse with excellent self-extinguising properties equivalent to UL standard V-0
|
BFAT-D Medium Blade Fuse
The BFAT-D is blade fuse that had spread extensively in non-automotive application
|
|
BFAT-S Car Blade Fuse : The BFAT-S is a BFAT with Ag plated terminals
|
