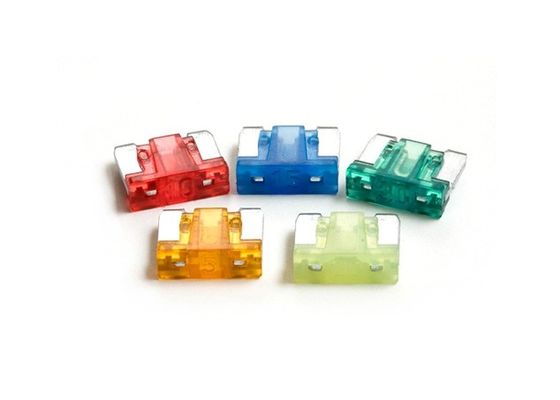

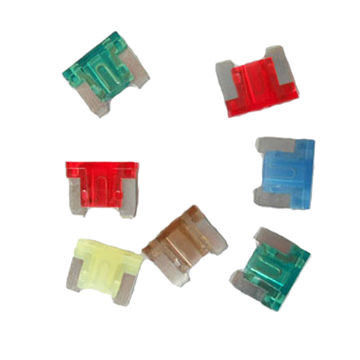

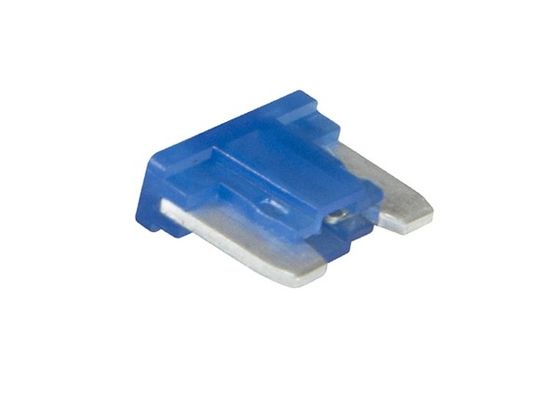

Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car

1000 Pieces
MOQ
Negotiable
Price
Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car
Features Gallery Product Description Request A Quote
Features
Specifications
Fuse Type: Low Profile Mini Blade Fuse
Alloy: Zinc
Body: Plastic PA66
Standards: According To SAE J2077 / ISO 8820-9
Rated Current: 15A
Color: Blue
Voltage: 32VDC (58V/60V Available)
Component Level Temperature Range: -40˚C To +125˚C
System Level Temperature Range: -40˚C To +105˚C
Interrupting Rating: 1000A @ 32 VDC
Highlight:

mini blade car fuses

,

mini blade fuses for cars

Basic Infomation
Place of Origin: Dongguan,China
Model Number: AB10015
Payment & Shipping Terms
Packaging Details: Bulk ,Gross weight : 0.4 g
Delivery Time: 10 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10,000,000 Pieces Per Month
Product Description



Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car





Quick details



Series MINI Low Profile
Product Blade Fuse
Current Rating 15A
Voltage Rating DC 32V DC
Mounting Style Holder
Termination Style Blade
Fuse Type Medium / Normal Blow
Indicator Style Element Window
Color Blue
Minimum Operating Temperature -40 C
Maximum Operating Temperature +125 C
Length 10.9mm



Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 0





Dimension



Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 1

* Fast Acting, Low Voltage For UP To 32v DC
* Material *Body: Plastic PA66.
                *Metal: Zinc Alloy
* Standard According To SAE J2077 / ISO 8820-9
* To Permit More Fuses in The Same Amount of Space
* Fuses Are Color-Coded For Easy Amperage Identification.

* Voltage Rating: 32 VDC
* Interrupting Rating: 1000A @ 58 VDC
* Component Level Temperature Range: -40˚C to +125˚C
* System Level Temperature Range: -40˚C to +105˚C

        105°C is a typical system level temperature requirement.




Time-Current Characteristics



Time-Current Characteristics
% of Rating Opening Time Min / Max (s)
MIN MAX
110 4s
135 0.75s 1800s
200 0.15s 5s
350 0.04s 0.5s
600 0.02s 0.1s





Electrical Performances



Part

number

Current

Rating

(A)

Housing

Material

Color

Voltage

Drop

(mV)

Cold

Resistance
(mΩ)

I²t
(A2s)
AB10005 5 Tan 116 10.91 25
AB10007.5 7.5 Brown 116 10.91 68
AB10010 10 Red 109 7.70 93
AB10015 15 Blue 102 4.80 270
AB10020 20 Yellow 98 3.38 380
AB10025 25 Natural 92 2.52 625
AB10030 30 Green 84 1.97 1130





General



The Low Profile MINI® fuse has similar performance characteristics as the standard MINI® fuse. The lower overall height allows for more space and weight savings. The Low Profile MINI® fuse is designed to mate with tuning-fork terminals, which provides additional weight and material savings in fuse box designs by eliminating the need for female box terminals.



Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 2
Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 3





Time-Current Characteristic Curves



Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 4





Temperature Rerating Curve



Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 5

*Component Level Temperature = the maximum ambient temperature that a single fuse will survive. This does not factor-in the heat from a populated fuse box, but does include the heat from the current load with the proper rerating.



**System Level Temperature represents the ambient temperature of the fuse box at a location within the vehicle. The temperature within a populated fuse box (in a given location) will be higher. The limiting factor is the plating. Sn-plating’s temperature limit is ≈130°C, and Ag-plating allows up to 150°C at the terminal interface.





Using "Mini" Size Fuses in "Low-Profile" Fuse Slots



Over the past decade or so, many manufacturers who previously used mini sized fuses have switched to low-profile mini fuses. (Mini fuses are also known as ATM fuses; Low-Profile fuses are also known as ATT fuses). If you've dealt with these fuse types before, you'll notice that they are the same width. The low-profile mini fuses are essentially a variation on the traditional mini fuse where the blades are shorter. Because the fuses are the same width, this means that on most applications, mini fuses will actually fit in low-profile slots. Note that as low-profile fuses don't have a protruding fuse blade, they will not fit in a mini size slot.

Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 6





What does this mean to me?


As low-profile fuses are a newer standard of fuse, they aren't quite as common as the older mini style fuse. For that reason, it may be difficult to find spare fuses or add-a-fuses (AKA "fuse taps) in the low-profile size. If you aren't able to source low-profile ones from your local auto parts or hardware store, perhaps look into using a mini size fuse/fuse tap.

Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 7

If you are using a fuse tap, note that your original low-profile fuses will not fit in the slots on the mini size fuse tap. This means that you'll need to get mini size fuses for that fuse tap. Add-a-fuses have two fuse slots on them but you may be able to just put a fuse in the second slot for the accessory you're adding. Be sure to read our post on how-to-use an add-a-fuse for more details!





Are there any downsides to using a Mini fuse in a Low-Profile slot?



The mini fuse or fuse tap will be a bit taller than the low-profile slot, so on some vehicles there may not be enough room to close a fuse panel cover. Note that in the case of a fuse tap, even low-profile fuses will add a significant amount of height compared to the original fuse. This means that you may come across this issue with the fuse panel cover regardless if you are running a fuse tap. In the picture below you can see the difference in height between just the low-profile fuse and a low-profile fuse tap.

Low Profile 10.9mm Zinc Alloy Mini Blade Fuse Rated 32VDC 58VDC 60VDC 15A Blue For Automotive Passenger Car 8

This isn't an issue we come a lot very often as most fuse boxes have a decent amount of space. On Toyota or Lexus vehicles which have a plastic fuse chart cover over the passenger compartment fuse box, both low-profile and mini fuse taps will prevent this cover from fitting. In these cases we recommend putting that fuse panel cover in with your owner's manual.
