Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized

1000 Pieces
MOQ
Negotiable
Price

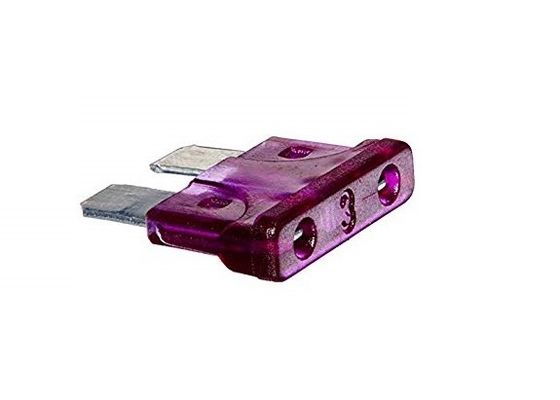

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 19mm Auto Blade Fuse
Size: 19x5.2x19.2mm
Rated Current: 3A
Voltage Rating: 32V/58V/60V/80V
Encapsulation: Plastic PA66
Metal: Zinc Alloy
Standard: SAE J1284/ UL 248
Fuse Type: Fast-acting
High Light:

mini blade car fuses

,

mini blade fuses for cars
Basic Infomation
Certification: RoHS,UL
Model Number: AB19003
Payment & Shipping Terms
Packaging Details: Bulk, 1000pcs per bag
Delivery Time: 2 Weeks
Payment Terms: T/T,Paypal
Supply Ability: 100,000,000 Pieces Per Month
Product Description



Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized





General



The Aolittel AB19 Blade Fuse is an ATOPlastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized 0 style blade fuse rated at 32V/58V/60V/80V, featuring a three part construction with copper contacts for excellent reliability in harsh environment conditions and low voltage drop. Current ratings 3A thru 45A. Filled with arc-quenching material.



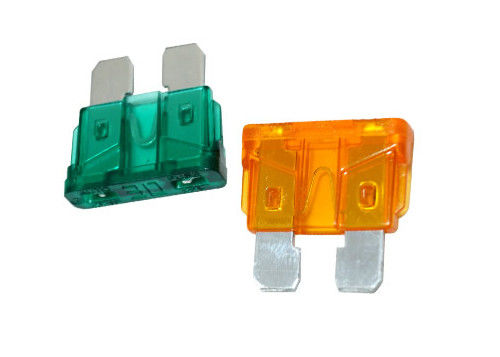

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized 1





Size



Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized 2

Fast Acting, Low Voltage For UP To 32V/60V DC
Material *Body: Plastic.
*Metal: Zinc Alloy
Standard According To SAE J1284
Circuit Protection To Replace Fusible Wire OR Fusible Link.
Fuses Are Color-Coded For Easy Amperage Identification.





Electrical Performances



Part Number Ampere(A) Voltage
(VDC)		 Body Color
AB19001 1A 32V/60V Black
AB19002 2A 32V/60V Gray
AB19003 3A 32V/60V Violte
AB19004 4A 32V/60V Pink
AB19005 5A 32V/60V Tan
AB1907.5 7.5A 32V/60V Brown
AB19010 10A 32V/60V Red
AB19015 15A 32V/60V Blue
AB19020 20A 32V/60V Green
AB19025 25A 32V/60V Natural
AB19030 30A 32V/60V Green
AB19035 35A 32V/60V bottle green
AB19040 40A 32V/60V Orange
AB19045 45A 32V/60V Violte


Time-Current Characteristics

In 110%In 135%In 200%In 350%In 600%In
20-120A >100Hours Min. Max. Min. Max. Min. Max. Min. Max.
60 s 3600 s 2 s 60 s 0.2 s 7 s 0.04 s 0.1 s





Pre-Arcing Time-Limits



Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized 3

FI = 1.43 (max.operating current: 0.7 x Irat at 23°C)





Size groups





Blade Size Blade Group Dimensions L × W × H Common Ratings (Maximum Current)
Micro2 APT, ATR 9.1 × 3.8 × 15.3 mm 5, 7.5, 10, 15, 20, 25, 30
Micro3 ATL 14.4 × 4.2 × 18.1 mm 5, 7.5, 10, 15
LP-Mini APS, ATT 10.9 × 3.81 × 8.73 mm 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini APM, ATM 10.9 × 3.6 × 16.3 mm 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Regular

APR, ATC (Closed),

ATO (open), ATS

 19.1 × 5.1 × 18.5 mm 0.5, 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40

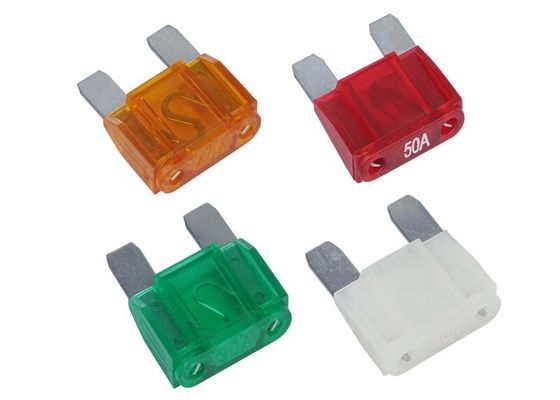

Maxi APX 29.2 × 8.5 × 34.3 mm 20, 25, 30, 35, 40, 50, 60, 70, 80, 100, 120





Color coding



Color

Continuous ampere

(=rated current)

Instantaneous

fusing ampere

Continuous

fusing ampere
Blue 1.5 3.5 3
Yellow 2.25 5 4.5
Red on Yellow 2.5 6 5
Green 3 7 6
Nut Brown 4 10 8
Red on Green 5 12 10
Green on Black 5 12 10
Red on Brown 6 14 12
Light Brown 7.5 18 15
Pink 12.5 30 25
White 17.5 40 35
Purple on Yellow 25 60 50
Yellow on Red 30 75 60

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized 4

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized 5
