Name: Silver Plated SET Type Slow Blow Square Ceramic SMD Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL
Brand: Silver Plated SET Type Slow Blow Square Ceramic SMD Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL
SKU: SET 003
Rating: 4.6 (163 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Surface Mount Fuse

Body: Ceramic

Terminal: Silver Plated Brass Caps

PSE: 1A~7A

UL: 200mA~7A

CSA: 200mA~7A

Size: 6125/2410

Speed: Slow Blow

Current: 3 Amp

Voltage: 125V

High Light:

surface mount resettable fuse

surface mount thermal fuse

Basic Infomation

Certification: PSE CSA UL

Model Number: SET 003

Payment & Shipping Terms

Packaging Details: 1000 Fuses in 7 inches dia. reel. 12mm wide tape, per EIA Standard 481

Delivery Time: 2 Weeks

Payment Terms: T/T,Paypal

Supply Ability: 5KKPCS Per Month

Gallery

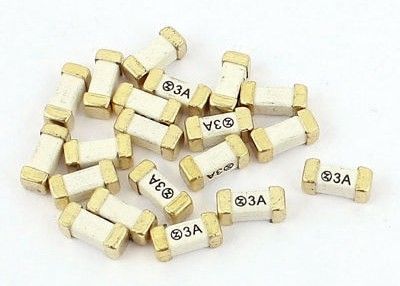

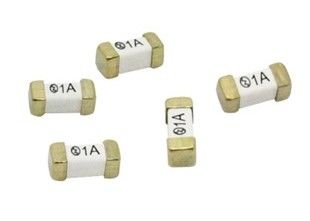

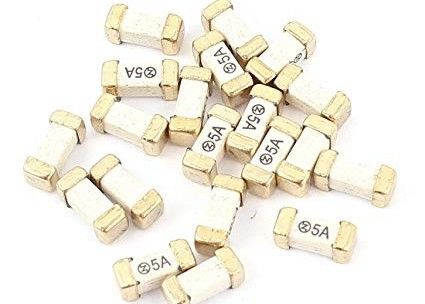

Silver Plated SET Type Slow Blow Square Ceramic SMD Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL

Product Description

Silver Plated SET Type Slow Blow Square Ceramic Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL

Features

A hollow precise ceramic tube design
Small volume ,current rating from 62mA to 15A. Voltage rating 125Vac/dc.
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability, 2 terminal caps can choice plating gold or silver.
Meet RoHS Requirement
Operating temperature range: -55C to +125C
Our SET,SEF series products, because the materials used in these fuses include
high melting temperature type solder and this solder contains more than 85%
lead (Pb), so these products can conform to the exempts of the requirements of
RoHS Directive (2002/95/EC)

Silver Plated SET Type Slow Blow Square Ceramic SMD Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL 0

Approval

PSE 1A~7A
UL Recognized 200mA~7A
CSA Listed 200mA~7A

Specification

Product Type	Amp (A)	Vol. (V)	cold resistance	max voltage drop	I²T value	Breaking capacity	Weight(single product)
SET .200	200 mA	125V	1.5751	750	0.06	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .250	250 mA	125V	1.2585	700	0.068	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .300	300 mA	125V	1.2512	600	0.09	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .350	350 mA	125V	0.9366	550	0.1	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .375	375 mA	125V	0.5232	500	0.2109	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .400	400 mA	125V	0.515	450	0.24	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .450	450 mA	125V	0.5009	450	0.3037	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .500	500 mA	125V	0.3291	400	0.375	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .700	700 mA	125V	0.2648	360	0.49	50A at 125V AC/DC 300A at 32V DC	0.12658
SET .750	750 mA	125V	0.16	320	0.626	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 001	1 A	125V	0.109	250	1.909	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 002	2 A	125V	0.055	210	8.56	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 003	3 A	125V	0.0228	190	22.54	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 004	4 A	125V	0.014	160	35.82	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 005	5 A	125V	0.013	150	54.8	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 006	6 A	125V	0.009	140	64.8	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 007	7 A	125V	0.0074	130	89.83	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 1.50	1.5 A	125V	0.0511	230	3.835	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 2.50	2.5 A	125V	0.0287	200	16.55	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 003	3 A	125V	0.0228	190	22.540	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 3.15	3.15 A	125V	0.0224	185	23.000	50A at 125V AC/DC 300A at 32V DC	0.12658
SET 3.50	3.5 A	125V	0.019	180	29.4	50A at 125V AC/DC 300A at 32V DC	0.12658

Electrical Characteristic

Rated current	1 ln	2 ln		3 ln		8 ln
Rated current	MIN	MIN	MAX	MIN	MAX	MIN	MAX
62mA~10A	4 hr	1 sec	60 sec	0.2 sec	3 sec	0.02 sec	0.1 sec

Environmental Temperature at 25°C

Interrupting Rating

50 amperes at 125V AC/DC
300 amperes at 32V DC

Material Dimension

Applications
　- Video / telecom / Network
　- Computer and Peripherals
　- Digital products
　- Power supply / Commercial

Physical Specification

Material
Body: Ceramic
Terminations: Silver Plated Brass Caps

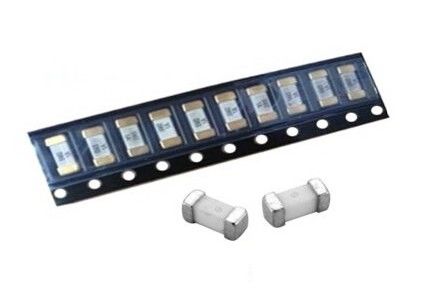

Packaging
1,000 Fuses in 7 inches dia. reel, or 5,000
fuses in 13inches dia. reel,
12mm wide tape, per EIA Standard 481

Environmental Specification

Operating Temperature	-55°C to +125°C
Thermal Shock	MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
Resistance to Solder Heat	MIL-STD-202G, Method 210, Test Condition B(10sec, at 260°C)
Insulation Resistance	MIL-STD-202G, Method 302, Test Condition A
Salt Spray	MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Vibration	MIL-STD-202G, Method 201 (10-55 Hz,0.06 inch, total excursion)
