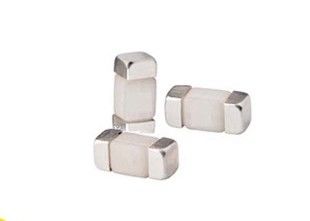

Withstand Inrush CQ24LT 002 6.1x2.6mm Ceramic Time Lag Chip Fuse 2A 350V 6125 For LED Lighting Overcurrent Protection
Description
2410 wire-in air SMD fuses are very suitable for secondary level over-current protection applications. These lead-free surface mount devices offer increased reliability and have eliminated the risk of end cap removal common in traditional ceramic body fuses. Additionally, the straight in-air wire element has demonstrated consistent fusing and cutting characteristics. These 2410 fuses utilize nickel and tin plated copper terminations and feature high reliability and resilience with strong arc suppression characteristics.
Application
• Industrial equipment
• LCD/PDP TV
• Backlight inverter
• Power supplier
• Telecom system
• Networking
• Game systems
• White goods
• Automotive
Main Features
Halogen free, RoHS-compliant and 100% lead-free
Copper or copper alloy composite fuse link
Fiberglass enforced epoxy fuse body
Wide range of current rating
-55°C to 125°C operating temperature range
Materials & Dimension
Construction Body Material: Ceramic
Termination Material: Silver(Ag),Nickel(Ni),Tin(Sn)
Fuse Element: Silver(Ag)
Recommended Land Pattern--Reflow Solder
Unit:mm
| |
L2 |
L1 |
W |
| 1-20A |
2.95 |
1.96 |
3.15 |
Part Numbering
Part number system
CQ24LT 001
CQ24LT -- Series
001 -- AMP Code (Refer to below table )
| PN |
Ampere
Rating
[ In ] |
Voltage
Rating
( V ) |
Nominal
Resistance
Cold Ohms |
Nominal
Melting I t
A Sec |
| CQ24LT 001 |
1A |
350V
|
1.100 |
0.700 |
| CQ24LT 1.50 |
1.5A |
0.500 |
1.570 |
| CQ24LT 002 |
2A |
0.203 |
1.800 |
| CQ24LT 2.50 |
2.5 A |
0.155 |
2.430 |
| CQ24LT 003 |
3 A |
0.045 |
3.240 |
| CQ24LT 3.15 |
3.15A |
0.039 |
3.770 |
| CQ24LT 3.50 |
3.5 A |
0.036 |
4.410 |
| CQ24LT 004 |
4A |
0.028 |
5.760 |
| CQ24LT 005 |
5A |
0.021 |
9.750 |
| CQ24LT 006 |
6A |
0.016 |
13.32 |
| CQ24LT 6.30 |
6.3A |
0.015 |
15.08 |
| CQ24LT 007 |
7A |
0.014 |
19.60 |
| CQ24LT 008 |
8A |
0.013 |
25.60 |
| CQ24LT 010 |
10A |
0.011 |
40.00 |
| CQ24LT 012 |
12A |
0.009 |
57.60 |
| CQ24LT 015 |
15A |
0.006 |
101.2 |
| CQ24LT 020 |
20A |
0.005 |
192.0 |
BENEFITS
• Very fast acting at 200% overload current level
• Excellent inrush current withstand capability
• High reliability and resilience
• Strong arc suppression characteristics
• Copper terminal with nickel and tin plating
Electrical Characteristic
| Rated current |
1 In |
2 In |
3 In |
8 In |
| Min. |
Min. |
Max. |
Max. |
Max. |
| 1-20A |
4 hour |
1 sec |
60 sec |
3 sec |
0.1 sec |
Environmental Temperature at 25°C
Interrupting Rating
1A~20A :
100 amperes at 350V AC
100 amperes at 125V AC
100 amperes at 125V DC
300 amperes at 32V DC
Soldering Method
*Reflow Soldering : 260°C, 30Sec. max.
*Wave Soldering : 260°C, 10Sec. max.
*Hand Soldering : 350°C, 3Sec. max.
Tape and Reel Specification
Tape & Reel Quantity: 2500 pcs/reel
| Item |
W |
P |
E |
F |
P1 |
D |
D1 |
| Criterion |
12.00 |
4.00 |
1.75 |
5.50 |
2.00 |
1.50 |
1.00 |
| Tolerance |
±0.10 |
±0.10 |
±0.10 |
±0.05 |
±0.05 |
±0.10 |
±0.10 |
| Item |
P0 |
10P0 |
A0 |
B0 |
KO |
t |
| Criterion |
4.00 |
4.00 |
2.85 |
6.30 |
1.45 |
0.24 |
| Tolerence |
±0.10 |
0.20 |
±0.10 |
±0.10 |
±0.10 |
±0.05 |
Environmental Specification
| Operating Temperature |
-55°C to +125°C |
| Vibration |
MIL-STD-202G, Method 201(10-55 Hz, 0.06 inch, total excursion) |
| Salt Spray |
MIL-STD-202G, Method 101, Test Condition B (48Hrs) |
| Insulation Resistance |
MIL-STD-202G, Method 302, Test Condition A |
| Resistance to Solder Heat |
MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C) |
| Thermal Shock |
MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C) |
Temperature Rerating Curve
Note:
1. Derating depicted in this curve is in addition to the standard derating of 25% for continuous operation.
Average Time Current Curves
