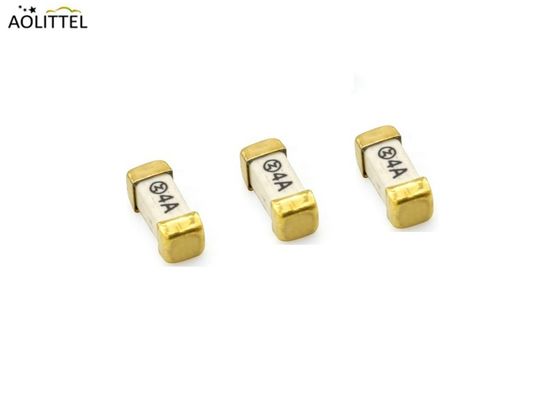

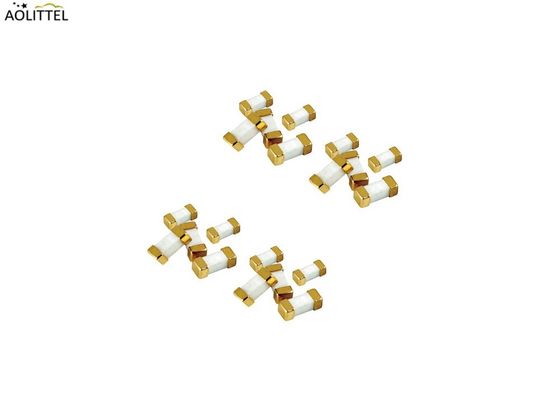

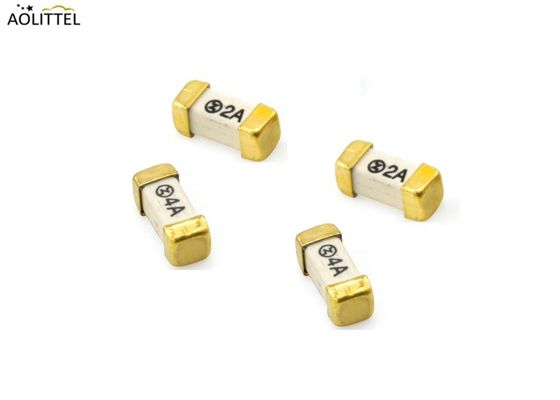

Bel Fuse SSQ 4 Equivalent 6125 Metric Fast Blow 4 A 125 VAC 125 VDC Surface Mount Fuses SFE1400 With Sliver Plated

1000 Pieces
MOQ
USD 0.035 to 0.05 Per Pieces
Price
Bel Fuse SSQ 4 Equivalent 6125 Metric Fast Blow 4 A 125 VAC 125 VDC Surface Mount Fuses SFE1400 With Sliver Plated
Features Gallery Product Description Request A Quote
Features
Specifications
Product Category: Surface Mount Fuses
Fuse Type: Fast Blow
Current Ratings: 4 A
Voltage Rating AC: 125 VAC
Voltage Rating DC: 125 VDC
Fuse Size / Group: 2410 (6125 Metric)
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Packaging: Tape In Reel
Resistance: 25 MOhms
Height: 2.5mm
Width: 2.5mm
Length: 6.1mm
Interrupt Rating: 50 A At 125 VAC, 10 KA At 86 VDC, 300 A At 125 VDC
Factory Pack Quantit: 1000
Plating: Gold Or Sliver
High Light:

surface mount chip fuse

,

surface mount thermal fuse
Basic Infomation
Place of Origin: CHINA
Certification: UL,CUL
Model Number: SFE1400
Payment & Shipping Terms
Packaging Details: Tape in reel, 1000pcs per reel.
Delivery Time: 7-9 days
Payment Terms: T/T
Supply Ability: 5,000,000 Pieces Per Week
Product Description



Bel Fuse SSQ 4 Equivalent 6125 Metric Fast Blow 4 A 125 VAC 125 VDC Surface Mount Fuses SFE1400 With Sliver Plated





Advantages



Quick acting
2410 SMD mini size
Wide ampere range 100mA to 15A
Tape in reel for auto-insert SMD process
Compatible with 260 Degree ,IR Pb-free solder process
RoHS 6 Complaint (MSL=1)
Leadfree





______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Application



Notebook
PC computer
Industrial equipment
Medical equipment

POE,POE+
LCD LED TV





Safety Agency Approvals



Agency Ampere Range Agency File Number
CUL 50mA ~ 15A E340427(JDYX2)
UL 50mA ~ 15A E340427(JDYX8)





Completed series overview



SMD Fuse
No. Size Blow Voltage Seires
1 0603 F 32V 06.000
2 0603 T 32V 06.100
3 1206 F 32V 12.000
4 1206 T 32V 12.100
5 6125 T 250V SET
6 6125 F 250V SEF
7 2410 F 125V SFE
8 2410 T 125V STE
9 1808 F 300V SSF
10 1808 T 300V SST
11 1032 T 125V R1032
12 1032 F 125V R1032





Physical Specification



Materials Body: Ceramic
Terminations: Gold or sliver plated brass caps
Marking On fuse
Current rating in black color,logo stamped in end caps





Electrical Performances



Part

No.

Ampere

Rating

Voltage

Rating

Breaking

Capacity

Nominal Cold

Resistance

(Ohms)

I2TMelting

Integral(A2.S)

 Agency Approvals
UL CUL
SFE0250 250mA 125VAC

50A@300VAC

50A@250VAC

200A@125VAC

 0.860 0.145 ● ●
SFE0300 300mA 0.620 0.162 ● ●
SFE0315 315mA 0.550 0.189 ● ●
SFE0375 375mA 0.470 0.200 ● ●
SFE0400 400mA 0.380 0.238 ● ●
SFE0500 500mA 0.320 0.275 ● ●
SFE0600 600mA 0.285 0.470 ● ●
SFE0630 630mA 0.256 0.566 ● ●
SFE0700 700mA 0.208 0.805 ● ●
SFE0750 750mA 0.175 1.240 ● ●
SFE0800 800mA 0.155 1.880 ● ●
SFE1100 1A 0.148 3.500 ● ●
SFE1125 1.25A 0.102 4.760 ● ●
SFE1150 1.5A 0.085 6.305 ● ●
SFE1200 2A 0.044 8.950 ● ●
SFE1250 2.5A 0.043 16.025 ● ●
SFE1300 3A 0.033 21.560 ● ●
SFE1315 3.15A 0.029 22.750 ● ●
SFE1350 3.5A 0.027 27.050 ● ●
SFE1400 4A 0.025 31.808 ● ●
SFE1500 5A 0.019 40.250 ● ●
SFE1600 6A 0.018 67.245 ● ●
SFE1630 6.3A 0.017 73.550 ● ●
SFE1700 7A 0.016 76.280 ● ●
SFE1800 8A     0.015 80.750 ● ●
SFE2100 10A     0.014 110.380 ● ●
SFE2120 12A     0.013 158.080 ● ●
SFE2150 15A     0.012 160.680 ● ●





Dimension



unit:mm



Bel Fuse SSQ 4 Equivalent 6125 Metric Fast Blow 4 A 125 VAC 125 VDC Surface Mount Fuses SFE1400 With Sliver Plated 1





Material info



NO. Part Name Material
1 End caps Au Plated Brass Cap
2 Body Non-Transparent Square Ceramic Tube
3 Fuse element Cu-Ag Alloy wire



Tag:

smd fuses

surface mount chip fuse

surface mount thermal fuse
