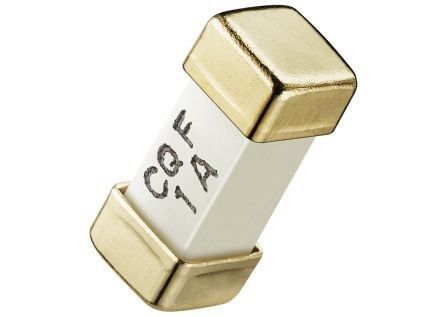

SEF 2410 Speed F 6.1x2.6x2.6mm Fast Acting Square Ceramic Cartridge Fuse Surface Mount Fuse 1A 65V 125V
Features
A hollow precise ceramic tube design
Small volume ,current rating from 62mA to 15A. Voltage rating 125Vac/dc.
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability, 2 terminal caps can choice plating gold or silver.
Meet RoHS Requirement
Operating temperature range: -55 C to +125 C
Our SET,SEF series products, because the materials used in these fuses include
high melting temperature type solder and this solder contains more than 85%
lead (Pb), so these products can conform to the exempts of the requirements of RoHS Directive (2002/95/EC)
Application
• Cell phones
• Battery packs
• Digital cameras
• DVD players
• Hard disk drives
Approval
PSE 1A~15A
Certified products for U.S. and Canada 62mA~5A
Recognized Component for Canada and U.S. 6A~15A
CSA Listed 62mA~10A
Dimension(mm)
Material :Tube (Body): Non-Transparent ceramic tube fuse. No breaking or deformation is allowed.
Two brass end caps: Made of brass of good conductivity. (Silver Plating)
Silver Alloy: Fuse element.
Electrical Characteristic
| Rated Current |
1 In |
2 In |
| MIN |
MAX |
| 62mA~10A |
4 hr |
5 sec |
| 12A~15A |
4 hr |
60 sec |
Part number
| Product Type |
(A) |
(V) |
cold resistance |
max
voltage drop
|
I²T value |
Breaking capacity |
Weight(single product) |
| SEF .062 |
62 mA |
125V |
11.275 |
1000 |
0.000961 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .080 |
80 mA |
125V |
9.955 |
900 |
0.001 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .100 |
100 mA |
125V |
9.513 |
900 |
0.0015 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .125 |
125 mA |
125V |
5.8395 |
800 |
0.00312 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .200 |
200 mA |
125V |
2.0195 |
600 |
0.008 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .250 |
250 mA |
125V |
1.105 |
500 |
0.00938 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .300 |
300 mA |
125V |
0.8554 |
450 |
0.018 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .375 |
375 mA |
125V |
0.7819 |
400 |
0.0211 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .400 |
400 mA |
125V |
0.52 |
350 |
0.032 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .500 |
500 mA |
125V |
0.4895 |
300 |
0.0375 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .700 |
700 mA |
125V |
0.2814 |
280 |
0.1205 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF .750 |
750 mA |
125V |
0.2425 |
270 |
0.1531 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 001 |
1 A |
125V |
0.1407 |
250 |
0.385 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 002 |
2 A |
125V |
0.0594 |
200 |
0.894 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 003 |
3 A |
125V |
0.0333 |
160 |
1.475 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 004 |
4 A |
125V |
0.0209 |
150 |
3.882 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 005 |
5 A |
125V |
0.0179 |
130 |
5.48 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 006 |
6 A |
125V |
0.0117 |
120 |
8.52 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 007 |
7 A |
125V |
0.0104 |
120 |
9.931 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 008 |
8 A |
125V |
0.0095 |
110 |
18.82 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 010 |
10 A |
125V |
0.0067 |
90 |
22.5 |
35A at 125V AC
50A at 125V DC
300A at 32V DC |
0.1243 |
| SEF 012 |
12 A |
65V |
0.0042 |
80 |
43.2 |
50A at 65V AC/DC
300A at 24V DC |
0.1243 |
| SEF 015 |
15 A |
65V |
0.0029 |
70 |
112.5 |
50 amperes at 65V AC/DC
300 amperes at 24V DC |
0.1243 |
| SEF 1.50 |
1.5 A |
125V |
0.113 |
220 |
0.725 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 2.50 |
2.5 A |
125V |
0.0384 |
180 |
1.182 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
| SEF 3.50 |
3.5 A |
125V |
0.0268 |
150 |
2.055 |
50A at 125V AC/DC
300A at 32V DC |
0.1243 |
Quick details
| Attribute |
Value |
| Current Rating |
1 A |
| Voltage Rating |
125 V |
| Fuse Speed |
F |
| Fuse Size |
6.1 x 2.6 x 2.6mm |
| Overall Length |
6.1mm |
| Body Material |
Ceramic |
| High Rupture Capacity |
Yes |
|
Breaking Capacity at
Max Voltage Rating
|
35 A @ 125 V ac,
50 A @ 125 V ac/dc,
300 A @ 32 V dc
|
|
Max Operating
Temperature
|
+125°C |
| Resistance |
0.1407Ω |
| Series |
SEF |
|
Min Operating
Temperature
|
-55°C |
| Material |
Body: Ceramic
Terminations: Silver Plated Brass Caps
|
| Packaging |
1000 Fuses in 7 inches dia. reel.
12mm wide tape, per EIA Standard 481
|
Interrupting Rating
62mA~8A: 50 amperes at 125V AC/DC 300 amperes at 32V DC
10A: 35 amperes at 125V AC 50 amperes at 125V AC/DC 300 amperes at 32V DC
12A~15A: 50 amperes at 65V AC/DC 200 amperes at 86V AC/DC 300 amperes at 24V DC
Environmental Specification
Operating Temperature -55°C to +125°C
Vibration MIL-STD-202G, Method 201 (10-55 Hz, 0.06 inch, total excursion)
Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance MIL-STD-202G, Method 302, Test Condition A
Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock: MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
