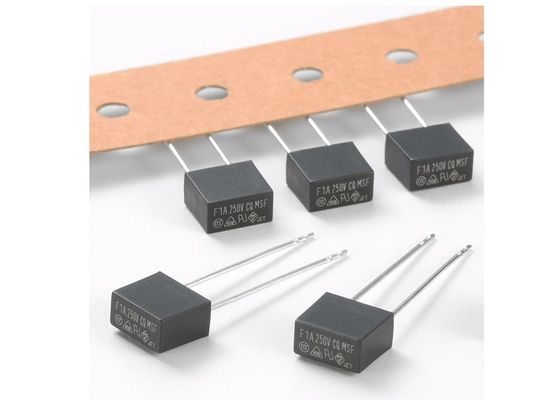

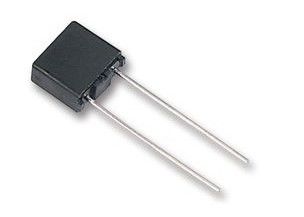

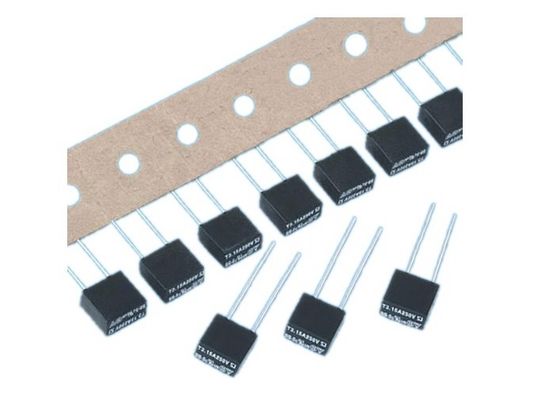

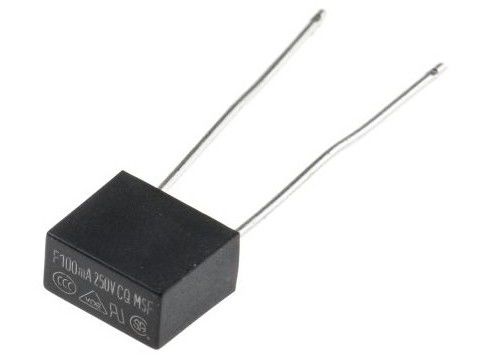

UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
Approval
VDE 50mA~6.3A
CSA Acceptance 50mA~6.3A
UL Recognized 50mA~6.3A
PSE 1A~6.3A
CCC 50mA~5A
CQC 6.3A
Electrical Characteristic
Rated
current |
1.5In |
2.1In |
2.75 In |
4 In |
10 In |
| MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
MAX |
| 50mA~5A |
60 min |
30 min |
10 ms |
3 sec |
3 ms |
300 ms |
20 ms |
| 6.3 A |
60 min |
30 min |
10 ms |
5 sec |
3 ms |
300 ms |
20 ms |
Environmental Temperature at 25°C
Mechanical Dimensions
Specification
| Product Type |
(A) |
(V) |
cold resistance |
maximum voltage drop |
I²T value |
Breaking capacity |
Weight(single product) |
| MSF .050 |
50 mA |
250V |
4.197 |
850 |
0.000675 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .063 |
63 mA |
250V |
2.802 |
750 |
0.001429 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .080 |
80 mA |
250V |
1.71 |
650 |
0.007258 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .100 |
100 mA |
250V |
1.16 |
600 |
0.009 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .125 |
125 mA |
250V |
1.0002 |
550 |
0.012656 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .160 |
160 mA |
250V |
1.4923 |
500 |
0.02304 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .200 |
200 mA |
250V |
1.0965 |
480 |
0.0324 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .250 |
250 mA |
250V |
0.7007 |
440 |
0.081563 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .315 |
315 mA |
250V |
0.382 |
400 |
0.093768 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .400 |
400 mA |
250V |
0.3006 |
370 |
0.1296 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .500 |
500 mA |
250V |
0.2471 |
350 |
0.30375 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .630 |
630 mA |
250V |
0.146 |
320 |
0.375071 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF .800 |
800 mA |
250V |
0.104 |
300 |
0.6912 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 001 |
1 A |
250V |
0.08 |
280 |
0.72 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 002 |
2 A |
250V |
0.033 |
240 |
3.6 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 004 |
4 A |
250V |
0.0133 |
160 |
19.44 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 005 |
5 A |
250V |
0.0109 |
150 |
21.375 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 1.25 |
1.25 A |
250V |
0.0581 |
280 |
1.125 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 1.60 |
1.6 A |
250V |
0.0406 |
250 |
2.1888 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 2.50 |
2.5 A |
250V |
0.0229 |
200 |
7.03125 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 3.15 |
3.15 A |
250V |
0.0179 |
180 |
8.037225 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 004 |
4A |
250V |
0.0133 |
160 |
19.44000 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 005 |
5A |
250V |
0.0109 |
150 |
21.37500 |
35A or 10*rated current at 250V AC |
0.35419 |
| MSF 6.30 |
6.3 A |
250V |
0.0087 |
150 |
46.4373 |
35A or 10*rated current at 250V AC |
0.35419 |
Interrupting Rating
35 amperes or 10 x rated current; whichever is greater at 250V AC.
Environmental Specification
Operating Temperature -55°C to +125°C
Vibration MIL-STD-202G, Method 201(10-55 Hz x 3axis/no load)
Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance MIL-STD-202G, Method 302, Test Condition A (After Opening) 10,000 ohms minimum
Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock: MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
Physical Specification
Materials Base and Cap: Black thermoplastic, UL 94-V0
Round Pins: Copper, Tin-plated
Packaging
1. In bulk: 1,000 pcs per box.
2. On Tap: Ammo pack, 1,000 pcs box
