Name: CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm
Brand: CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm
SKU: MST 002
Rating: 4.9 (179 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Miniature Fuse

Voltage: 250VAC(300VAC/400VAC)

Characteristic: Time Delay

Material: Plastic

Current: 2A (40mA~10A )

Size: 8.35mmx7.7mmx4.3mm

High Light:

micro mini fuse

mini cartridge fuse

Basic Infomation

Certification: SEMKO VDE TUV CSA UL PSE CCC CQC KTL

Model Number: MST 002

Payment & Shipping Terms

Packaging Details: Tape or Bulk

Delivery Time: 10 Workdays

Payment Terms: T/T,Paypal

Supply Ability: 5KKPCS Per Month

Gallery

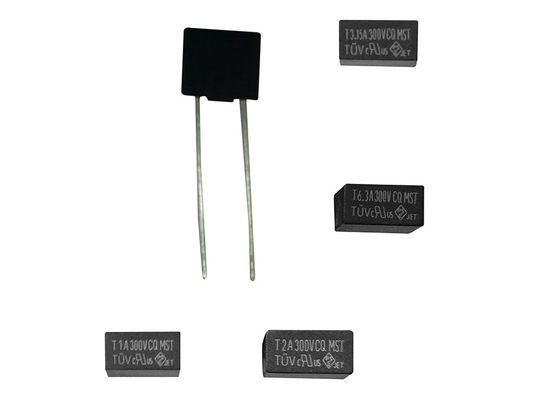

CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm

Product Description

CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm

Features

Ø 8.35*7.7 mm Micro fuse
Small volume,
Rating Current : MST 40mA~10A ;
Rating Voltage : 250V / 277V / 300Vac
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability.
Operating temperature range: -55°C to +125°C

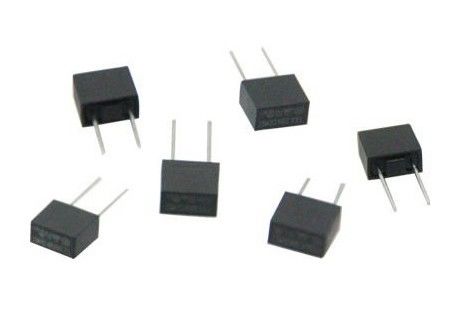

CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm 0

Approval

VDE 40mA~6.3A
TUV 8A/10A
CSA Acceptance 40mA~6.3A
UL Recognized 40mA~6.3A
PSE 1A~10A
SEMKO 40mA~4A
CCC 40mA~6.3A
KTL 40mA~6.3A
CQC 8A/10A
Recognized Component for Canada and U.S. 500mA~10A
PSE 1A~10A
TUV 500mA~10A
CQC 500mA~10A
Recognized Component for Canada and U.S. 40mA~10A
PSE 1A~10A
TUV 40mA~10A

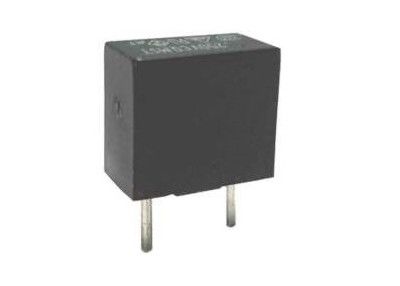

CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm 1

Specification

Product Type	(A)	(V)	cold resistance	maximum voltage drop	I²T value	Breaking capacity	Weight(single product)
MST .040	40 mA	250V 300V 400V	12.864	600	0.0158	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .050	50 mA	250V 300V 400V	8.9	550	0.0225	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .063	63 mA	250V 300V 400V	5.4053	480	0.0446	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .080	80 mA	250V 300V 400V	3.687	400	0.076	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .100	100 mA	250V 300V 400V	2.4063	350	0.108	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .125	125 mA	250V 300V 400V	1.6194	300	0.1223	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .160	160 mA	250V 300V 400V	1.2458	280	0.17	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .200	200 mA	250V 300V 400V	0.824	260	0.306	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .250	250 mA	250V 300V 400V	0.63	240	0.6019	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .315	315 mA	250V 300V 400V	0.38	220	0.8216	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .400	400 mA	250V 300V 400V	0.27	200	1.4832	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .500	500 mA	250V 300V 400V	0.195	190	2.7	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .630	630 mA	250V 300V 400V	0.1322	180	3.1792	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .800	800 mA	250V 300V 400V	0.0907	160	5.76	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 0.630	6.3 A	250V 300V 400V	0.0074	100	310.77	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 001	1 A	250V 300V 400V	0.075	140	8.73	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 002	2 A	250V 300V 400V	0.0316	100	36	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 004	4 A	250V 300V 400V	0.0136	100	158.4	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 005	5 A	250V 300V 400V	0.01	100	202.5	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 008	8 A	250V 300V 400V	0.0057	100	368.64	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 010	10 A	250V 300V 400V	0.0034	100	288	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 1.25	1.25 A	250V 300V 400V	0.055	130	14.766	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 1.60	1.6 A	250V 300V 400V	0.0425	120	23.04	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 2.50	2.5 A	250V 300V 400V	0.0241	100	56.25	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 3.15	3.15 A	250V 300V 400V	0.0188	100	93.768	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 6.30	6.3 A	250V 300V 400V	0.0074	100	310.77	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993

* 300V/400V optional

Electrical Characteristic

Rated current	1.5In	2.1In	2.75 In		4 In		10 In
Rated current	MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX
40mA~5A	60 min	2 min	400 ms	10 sec	150 ms	3 sec	20 ms	150 ms
6.3 A~10A	60 min	2 min	400 ms	10 sec	150 ms	3 sec	15 ms	150 ms

Environmental Temperature at 25°C

Interrupting Rating

35 amperes or 10 x rated current ; whichever is greater at 250V AC.
130 amperes at 250V AC.(optional)
50 amperes at 300V AC.(optional)

Material

Base and Cap: Black thermoplastic, UL 94-V0
Round Pins: Copper, Tin-plated

Dimension

CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm 2

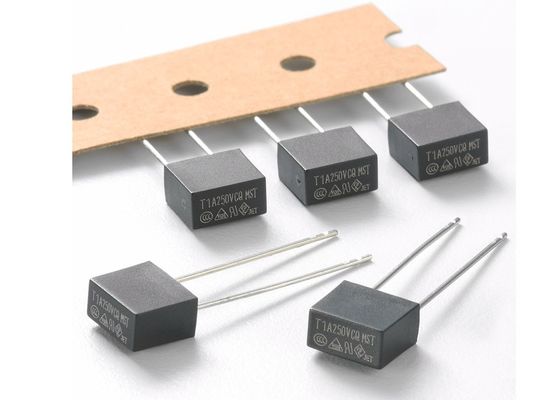

Tape & Reel Quantity

1. In bulk: 1,000 pcs per box.
2. On Tap: Ammo pack, 1,000 pcs box

* The curves are average value, for reference only *
