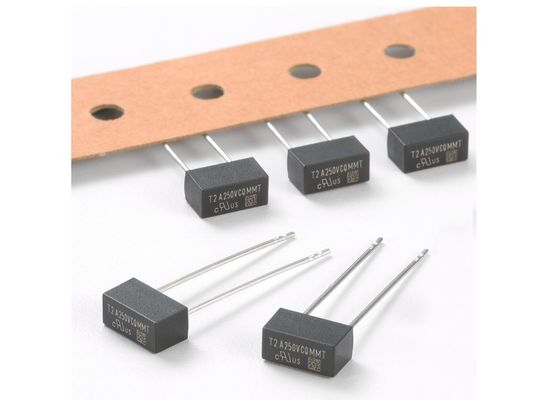

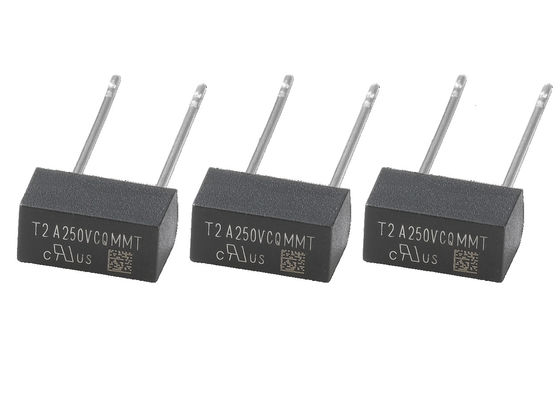

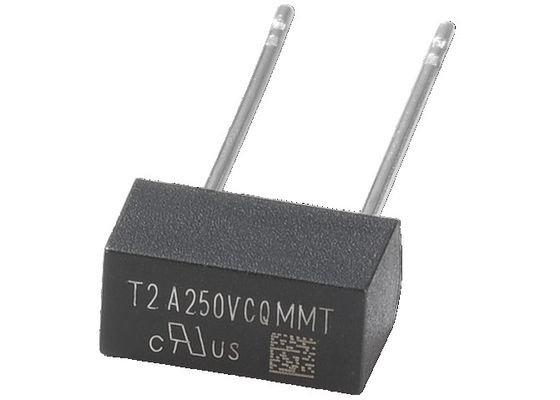

Thinnest MMT Series Plastic Box Time Lag Radial Lead Micro Fuse 8.35x5x3.95mm 2A 250V 300V 400V TUV CQC KC PSE UL

Thinnest MMT Series Plastic Box Time Lag Radial Lead Micro Fuse 8.35x5x3.95mm 2A 250V 300V 400V TUV CQC KC PSE UL

Description

MMT is the thinnest fuse series in the world, which presents high interrupting rating and takes out high current inrush. Unique circuit design and high frequency welding technology comprise high qualities of MMT which are approved with UL regulation. The manufacturing process of MMT fuses are regulated with international standard. In global price war of electronic components, we focus on providing top quality fuses. The followings are the competitive advantages of MMT:
1. The thinnest shape
MMT is 8.35x5x3.95 (mm), which is thinnest of the similar type fuses currently. In response to the current thin lighting equipment designed, miniaturized circuit fuse will be making use of electronic products to reduce the volume.
2. Rolling all-inclusive internal circuit structure and high frequency welding technology
MMT internal circuits are rolling all-inclusive structure, which is assembled by high frequency welding technology. High frequency welding technology can partially heat for welding points, in addition to the welding point, no other internal wiring material damage due to heating processes, which makes more stable internal circuit structure to get better anti-pulse characteristics.
3. International quality approval system
Focuses on establishing environment friendly manufacturing processes. Besides, we have approved with international quality approval system as ISO9001, ISO14064, ISO50001, OHSAS18001, and SONY Green Partner.
As one of three major fuse manufactures in the world, we strives to provide top quality fuse. We have developed global agent network which covers Asia, Europe, Americas and Oceania, and we also attend international electronic component exhibitions to promote our sophisticated fuses and make us well-known.


Application: Power Supply, Consumer Electronic, Industrial Controller, LED Lighting System, Charger

Approvals

Electrical Characteristic

Size

Part numbering

Interrupting Rating

35 amperes or 10 x rated current; whichever is greater at 250V AC.
160 amperes at 250V AC (Optional)
130 amperes at 300V AC (Optional)
100 amperes at 250V DC (Optional)

Environmental Specification

Operating Temperature
-55°C to +125°C
Vibration
MIL-STD-202G, Method 201(10-55 Hz x 3axis/no load)
Salt Spray
MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance
MIL-STD-202G, Method 302, Test Condition A
(After Opening) 10,000 ohms minimum
Resistance to Solder Heat
MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock
MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
100 amperes at 400V AC (Optional)

Physical Specification

Material
Base and Cap: Black thermoplastic, UL 94-V0
Round Pins: Copper, Tin-plated

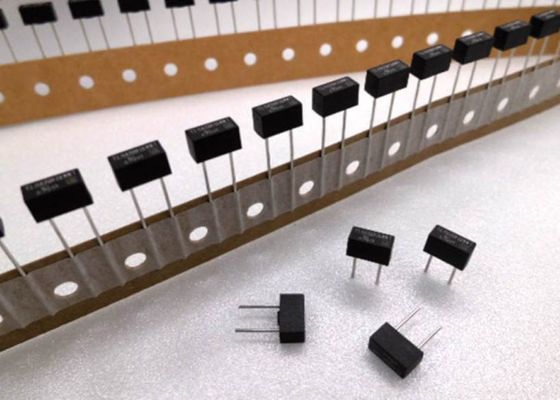

Packaging

1. In bulk: 1,000 pcs per box.
2. On Tape: Ammo pack, 1,000 pcs box
