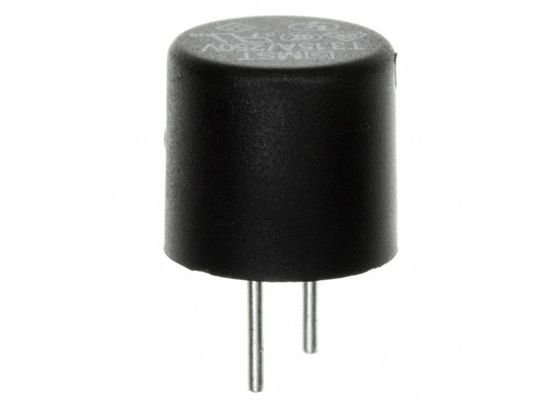

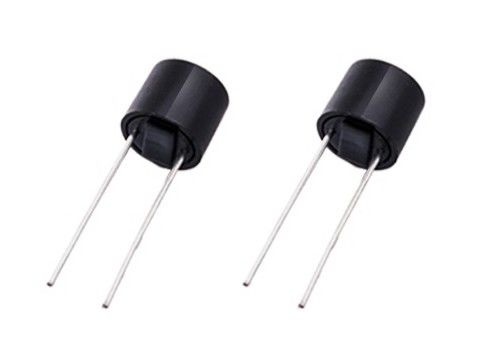

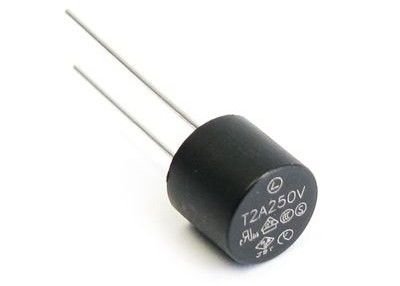

8.5x7.2mm SR-5-2A-AP Subminiature Sized Round Plastic Time-lag Micro Fuse SRT1200A T2A250V With Lead Spacing 5.08mm

8.5x7.2mm SR-5-2A-AP Subminiature Sized Round Plastic Time-lag Micro Fuse SRT1200A T2A250V With Lead Spacing 5.08mm

Time-Delay Fusesfeature a plastic cap and base with flammability UL 94V0 for additional protection. They protect against harmful overcurrents in primary and secondary applications and have a small, rectangular-leaded design to minimize PCB space.

Agency approvals

UL: 250mA to 4A and 250V
VDE: 250mA to 4A and 250V
CCC: 250mA to 4A and 250V
SEMKO: 250mA to 4A and 250V
PSE: 1A to 5A and 250V
KTL: 250mA to 4A and 250V

Dimension (mm)

Part numbering

Electrical Characteristics

Environmental data

• Solderability: EIA-186-9E Method 9

• High frequency vibration: MIL-STD-202F, Method 201A

• Operating temperature: -40°C to +125°C

• Soldering heat resistance: 260°C, 10 Sec. max (IEC 60068-2-20)

Features

• Radial leaded time-delay thru-hole fuse

• Designed to IEC 60127-3, Sheet 4

• Internationally accepted for primary and secondary overcurrent protection

• Place directly into PCB or plug into BK/PCS holder

• High inrush withstand capability

• Compatible with leaded and lead-free reflow and wave solder

Applications

Power supplies
Power adapters
Battery chargers
Notebooks
Printers
TVs / displays
White goods
Set top boxes
Air conditioners
Lighting ballasts
