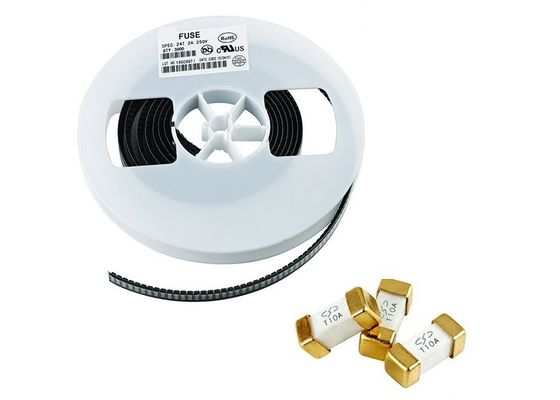

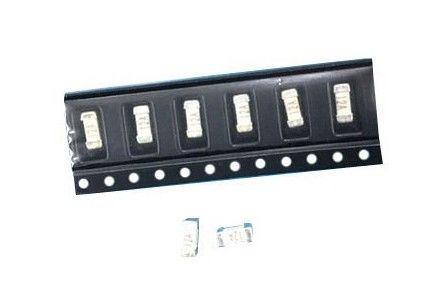

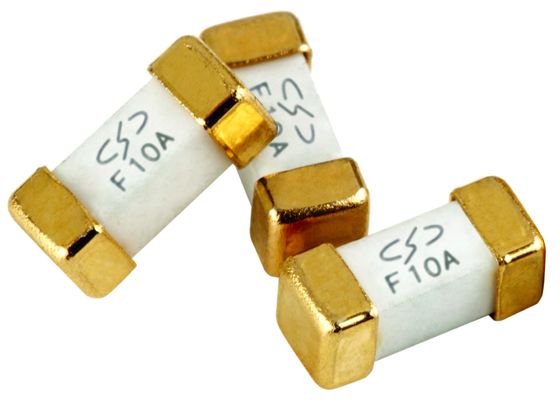

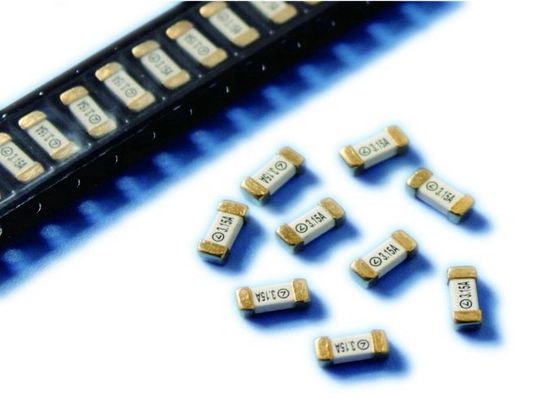

2410 Nano AirMatrix Square Ceramic Surface Mount Fuse , Slow Blow Fuse 24E1315A 3.15A 250V 6125

5000PCS
MOQ
Negotiable
Price
2410 Nano AirMatrix Square Ceramic Surface Mount Fuse , Slow Blow Fuse 24E1315A 3.15A 250V 6125
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Slow Blow Fuse
Size: 2410
Metric: 6125
Current: 3.15A
Voltage: 250V
Speed: Time Delay
Package: Tape In Reel
SPQ: 5000PCS Per Reel
Highlight:

surface mount resettable fuse

,

surface mount thermal fuse
Basic Infomation
Certification: UL KC PSE CQC
Model Number: 24E1315A
Payment & Shipping Terms
Packaging Details: Reel,5KPCS/Reel
Delivery Time: 10 Workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10KKPCS Per Month
Product Description



2410 Nano AirMatrix Square Ceramic Surface Mount Fuse , Slow Blow Fuse 24E1315A 3.15A 250V 6125





Description



Surface Mount, "brick", ceramic tube/end cap constructions. Provide board level primary and secondary circuit protection in a wide variety of applications, including battery chargers, power supplies, modems, routers, consumer electronics, PoE, PoE+, Backplane Short Circuit Protection, etc.



2410 Nano AirMatrix Square Ceramic Surface Mount Fuse , Slow Blow Fuse 24E1315A 3.15A 250V 6125 0





Features



Extremely small size with 250 VAC rating
Surface mount fuses in AC applications
Excellent inrush current withstanding capability
Fiberglass enforced epoxy fuse body
Copper termination with nickel and tin plating
100% lead-free
Operating temperature range: -55°C to +125 °C (with derating)
Compliant with IEC 60127-4
Sizes: 2410





Application



Lighting: Ballast, LED Drivers
Power: Chargers, Adapters, Power Boards
Medical Equipment
Indutrial Equipment
White Goods







Ordering information



Catalog Ampere Voltage Melting Integral
No. Rating Rating (A2.S)
24E0125A/B 125mA 250V/125V 0.06
24E0160A/B 160mA 250V/125V 0.08
24E0200A/B 200mA 250V/125V 0.09
24E0250A/B 250mA 250V/125V 0.11
24E0315A/B 315mA 250V/125V 0.14
24E0400A/B 400mA 250V/125V 0.26
24E0500A/B 500mA 250V/125V 0.5
24E0630A/B 630mA 250V/125V 0.8
24E0750A/B 750mA 250V/125V 1.3
24E0800A/B 800mA 250V/125V 1.5
24E1100A/B 1A 250V/125V 2.3
24E1125A/B 1.25A 250V/125V 3.2
24E1150A/B 1.5A 250V/125V 5.6
24E1160A/B 1.6A 250V/125V 5.9
24E1200A/B 2A 250V/125V 7.8
24E1250A/B 2.5A 250V/125V 10
24E1300A/B 3A 250V/125V 22
24E1315A/B 3.15A 250V/125V 23
24E1350A/B 3.5A 250V/125V 26
24E1400A/B 4A 250V/125V 39
24E1500A/B 5A 250V/125V 58
24E1600A/B 6A 250V/125V 95
24E1630A/B 6.3A 250V/125V 110
24E1700A/B 7A 250V/125V 120





Clearing Time Characteristics



% of Ampere Rating Opening Time
100% 4 hours Min
200% 1s-60s
800% 20ms-100ms





Fuse Selection and Temperature De-rating Guideline



2410 Nano AirMatrix Square Ceramic Surface Mount Fuse , Slow Blow Fuse 24E1315A 3.15A 250V 6125 1

The ambient temperature affects the current carrying capacity of fuses. When a fuse is operating at a temperature higher than 25oC, the fuse shall be “derated”. To select a fuse from the catalog, the following rule may be followed: Catalog Fuse Current Rating = Nominal Operating Current / 0.75 / % De-rating at the maximum operating temperature. Example: At maximum operating temperature of 65oC, % De-rating is 90%. The nominal operating current is 4 A. The current rating for fuse selected from the catalog shall be: 4 / 0.75 / 90% = 5.9 or 6.3 A.





Environmental Tests



Reliability Test Test Condition and Requirement Test Reference
Reflow & Bend 3 reflows at 245°C followed by a 2 mm bend, 20% DCR change max. (10% for ≤ 1 A), no mechanical damage Refer to  QIQ034 ,QIQ048
Solderability 245°C, 5 seconds, new solder coverage 90% minimum MIL-STD-202 Method 208
Soldering Heat Resistance 260°C, 10 seconds, 20% DCR change max. (10% for ≤ 1 A), new solder coverage 75% minimum MIL-STD-202 Method 210
Life 25°C, 2000 hours, 80% rated current (75% for < 1 A), voltage drop change≤ ±20% Refer to QIQ106
Thermal Shock -65°C to +125°C, 100 cycles, 10% DCR change max., no mechanical damage MIL-STD-202 Method 107
Mechanical Vibration 5 – 3000 Hz, 0.4 inch double amplitude or 30 G peak, 10% DCR change max., no mechanical damage MIL-STD-202 Method 204
Mechanical Shock 1500 G, 0.5 milliseconds, half-sine shocks, 10% DCR change max., no mechanical damage MIL-STD-202 Method 213
Salt Spray 5% salt solution, 48 hour exposure, 10% DCR change max., no excessive corrosion MIL-STD-202 Method 101
Moisture Resistance 10 cycles, 15% DCR change max., no excessive corrosion MIL-STD-202 Method 106
