Name: Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block
Brand: AOLITTEL
SKU: CY
Rating: 5 (188 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: ANL Auto Fuse Holder

Suitable Fuse: 5AG/AGU

Number Of Way: 1 Way,2 Way,3 Way,4 Way

Application: Car Audio System

Name: Auto Fuse Holder

Type: Heavy Duty

High Light:

automotive fuse holder

miniature fuse holder

Basic Infomation

Brand Name: AOLITTEL

Model Number: CY

Payment & Shipping Terms

Packaging Details: Bulk

Delivery Time: 2 Weeks

Payment Terms: T/T

Supply Ability: 10,000,000 Pieces Per Month

Gallery

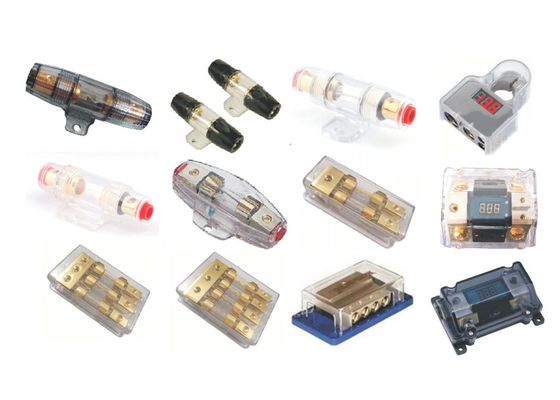

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block

Product Description

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block

Description

ANL Fuse Holder - High power ANL fuse holder with cover. Large diameter wire ports on each side can accept cable sizes up to 2/O. For use with ANL style fuses.High current handling inline waterproof fuse holder that accepts one 0, 2, or 4 gauge in/output and is rated to handle up to 300 amps of current. Finished in a satin nickel plating with hardened black anodized steel set screws and translucent acrylic housing makes the inline fuse holder not only attractive but durable too !

ANL fuse holders are designed for the protection of high power circuits such as main battery feeds, amplifiers, inverters, and more. ANL fuse holders use high power ANL fuses with current ratings ranging from 80 amps up to 300 amps. Available in single and dual fuse configurations. The most common ANL fuse holder is the open air two stud type as shown in our video. The water resistant ANL fuse holders feature integrated gaskets and connections that require no special cable termination such as a lug. You simply insert the stripped end of your cable into the fuse holder and tighten a set screw to secure the cable to the fuse holder.

Features

*Volage Rating:32v DC Below.
*Cover: pc transparent Clear.
*All Metal Material:Stainless Steel Nickel Plated.
*Body Material:Flame Retarding Plastic.
*use MEGA/HMDP Fuse Up to 150amp

*Smoke color protective cover
*Heat resistant base and cover
8Durable finish and conductivity
*Easy installation for multi use combinations
*Nickel Plated

Specification

CY-130A

IN-LINE AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 1

Unique See-Thru material

Clear Housing with Mounting Clip.

All Metal Parts Are 24 Kt.Gold Finish

Accept AGU Fuse Up To 80 Amps.

Perfect Fit For 4/8 Gauge Power Cable

Set Screw Design-No Crimping Required.

CY-130B

IN-LINE AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 2

Unique See-Thru material

Clear Housing with Mounting Clip.

All Metal Parts Are 24 Kt.Gold Finish

Accept AGU Fuse Up To 80 Amps.

Perfect Fit For 4/8 Gauge Power Cable

Set Screw Design-No Crimping Required.

CY-130C

IN-LINE AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 3

Unique See-Thru material

Clear Housing with Mounting Clip.

All Metal Parts Are 24 Kt.Gold Finish

Accept AGU Fuse Up To 80 Amps.

Perfect Fit For 4/8 Gauge Power Cable

Set Screw Design-No Crimping Required.

CY-130D

IN-LINE AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 4

Unique See-Thru material

Clear Housing with Mounting Clip.

All Metal Parts Are 24 Kt.Gold Finish

Accept AGU Fuse Up To 80 Amps.

Perfect Fit For 4/8 Gauge Power Cable

Set Screw Design-No Crimping Required.

CY-130E

IN-LINE AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 5

Unique See-Thru material

Clear Housing with Mounting Clip.

All Metal Parts Are 24 Kt.Gold Finish

Accept AGU Fuse Up To 80 Amps.

Perfect Fit For 4/8 Gauge Power Cable

Set Screw Design-No Crimping Required.

CY-141

2 POSITION AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 6

24 Kt.Gold Finish

Accept two AGU Fuse.

Three 4 AWG Power Cable Input and two 8 AWG Power Cable Output.

CY-151

3 POSITION AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 7

24 Kt.Gold Finish

Accept two AGU Fuse.

Three 4 AWG Power Cable Input and two 8 AWG Power Cable Output.

CY-161

4 POSITION AGU(5AG) FUSE HOLDER

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 8

24 Kt.Gold Finish

Accept two AGU Fuse.

Three 4 AWG Power Cable Input and two 8 AWG Power Cable Output.

PB-1044

One to Four Power Distribution Block

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 9

24 Kt.Gold Finish/Power Cable Output.

Accept two AGU Fuse.

Three 4 AWG Power Cable Input and two 8 AWG

SM01

Two with display fuse holder

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 10

SM02

Two with display fuse holder

2 POSITION.2GA OR 4 GA IN 2GA OR 4GA OUT

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 11

SM03

DIGITAL BATTERY CLIP

1 POSITION.2GA OR 4 GA IN 2GA OR 4GA OUT

Car Audio Amplifier Heavy Duty Multi ANL AGU 5AG Auto Fuse Holder 2 Way 3 Way 4 Way Automotive Inline Fuse Block 12
