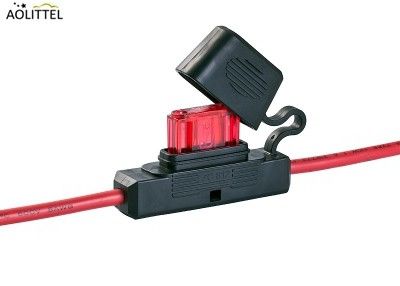

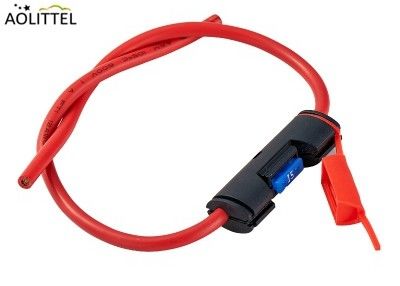

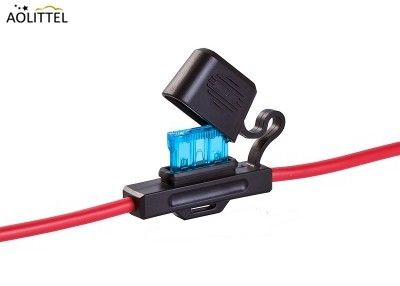

Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A

1000 Pieces
MOQ
USD 0.5 to 5 Per Piece
Price
Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Auto Fuse Holder
Advantage: Splash-waterproof
Insulating Body: Plastic
Applicable: For ATS/ATO Blade Fuse 1A~30A
Cable: UL 1015
Cable Color: Red
Cable Length: To Be Advised
Cable AWG: 12~18AWG
Highlight:

automotive fuse holder

,

miniature fuse holder

Basic Infomation
Place of Origin: CHINA
Model Number: 9012
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 10 Workdays
Payment Terms: T/T, Western Union
Supply Ability: 10,000 Pieces Per Day
Product Description



Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A





General



Molded Auto Fuse Holder would be multi-funcational fuse holder for in-line application.Enable easy fuse installation and replacement with our comprehensive line of fuse blocks,auto fuse holders, and fuse accessories for automotive, electronic, and industrial applications.



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________



Auto Fuse holders for automotive style fuses including MINI, ATO, MAXI, MIDI, MEGA, JCASE and Universal Glass Fuses. Auto Fuse holders are available for In-Line, Bolt-Down, Panel Mount and PCB applications.



Ao littel fuse holder are designed for applicable with ATO, ATC, MINI, ANL, AGU, and AGC type fuses. Fuse holders use a single fuse to provide circuit protection to a single electrical circuit. Some of the fused holders come with integrated tops or covers that fit over the fuse once installed. Many of our fuse holders are waterproof and are suitable for use in harsh environments such as outdoors or in engine compartments. Fuse holders are an easy way to add circuit protection for add-on circuits or for conditions where a traditional fuse block is unsuitable. Many of our fuse holders come with wire leads allowing you to splice the fuse holder onto an existing wire. Other fuse holders, especially the higher current fuse holders, come with connectors or posts, and require some kind of terminal to attach your wires the the holder.



Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 1





Features



Easy auto blade fuse installation and replacement

Existing mould

Have export history

Mature technology





Specification



Splash-waterproof Type

Insulating Body : Plastic

Applicable : For ATS/ATO Fuse 1A~30A



Item No. Wire : UL 1015
AWG Color
ZC-9012A #12 Red
ZC-9012B #14
ZC-9012C #16
ZC-9012D #18





Dimension



Unit : mm



Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 2





Suitable Auto Blade Fuse Specification



Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 3

Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 4



Time-Current Characteristics



Test Current Opening Time
Min. Max.
110% 100hrs. ---
135% 0.75 s 600 s
160% 0.25 s 50 s
200% 0.15 s 5 s
350% 0.04 s 0.5 s
600% 0.02 s 0.1 s



· Fast Acting

· Voltage Rating : DC32V or less

· Interrupting Rating: 1000A @32VDC

· Operating Temperature Range : -40oC to +125oC

· Complies with SAE J1284 / JASOD612 / ISO 8820-3

· Materials :
1. Zinc Alloy
2. Plastic


Characteristics of fuses according to use conditions may change.





Factory



Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 5





Experimental Equipment



Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 6

Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 7

Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 8

Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 9





Related products



Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 10
Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 11
Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 12
Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 13
Custom Made Automotive In-Line Splash-waterproof Auto Fuse Holder 9012 For ATS ATO Fuse 1A~30A 14
Pls contact us for furthermore info.
