IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting

5000 Pieces
MOQ
Negotiable
Price
IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting
Features Gallery Product Description Request A Quote
Features
Specifications
Product Category: Ceramic Tube Fuse
Rated Voltage: 250VAC
Rated Current: 5A(0.1~15A)
Breaking Capacity: 50A
Characteristic: Time-Lag T
Mounting: PCB,THT
Admissible Ambient Air Temp.: -20°C To 70°C
Material: Tube: Ceramic
Material: Endcaps: Nickel-Plated Brass
Material: Axial Leads: Tin-Plated Copper
Unit Weight: 0.6g
Storage Conditions: 0°C To 60°C, Max. 70% R.h.
High Light:

ceramic thermal fuse

,

ceramic automotive fuses
Basic Infomation
Place of Origin: Dongguan,Guangdong,China
Brand Name: Aolittel
Certification: UL,cUL
Model Number: PFU1500A
Payment & Shipping Terms
Packaging Details: Bulk,500pcs per polybag
Delivery Time: 7-10 Days
Payment Terms: T/T
Supply Ability: 100,000,000 Pieces Per Month
Product Description



IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting





Applications



- Digital Consumer Electronics

- Power supplies

- Divine Lighting

- UPS

- Telecom Devices



___________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Dimension (mm)

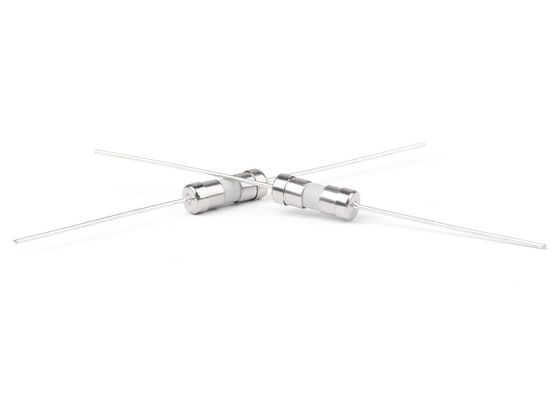

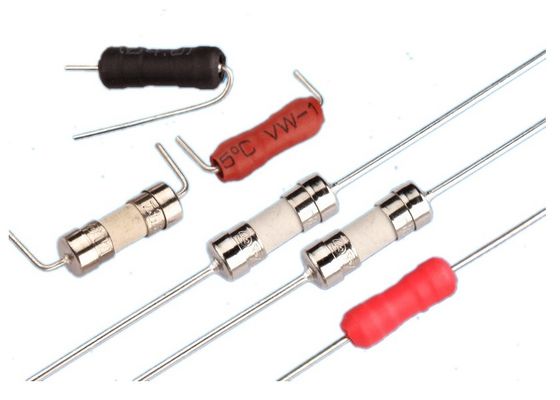

Axial Lead IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting 1 IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting 2

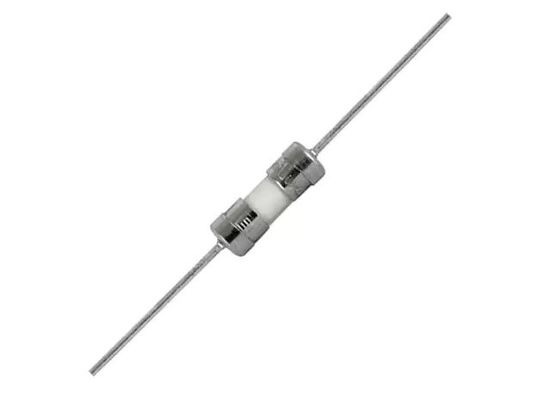

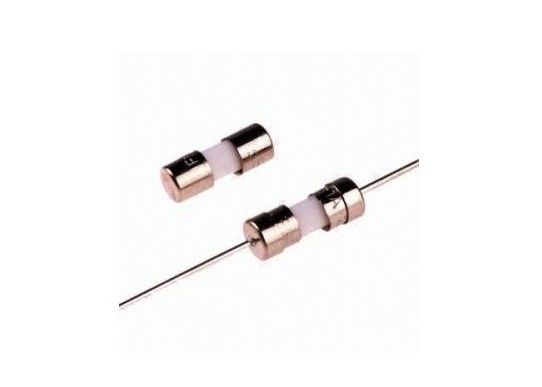

Cartridge Fuses IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting 3 IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting 4





Features



• Designed to UL/CSA 248 Standard.

• Fast-Acting, ceramic body fuse in a compact package.

• This space saving fuse is ideally suited for lighting, power supply, and adapter applications.

• Standards:In accordance with UL 248 -1 / -14





Agency Approvals



Voltage Rating

Agency

Ampere Range

Agency File Number
125V/250V UL 250mA ~ 5A E340427(JDYX)
C-UL 250mA ~ 5A E340427( JDYX7)





Specification



A=250V,B=125V.



Part

No.

Ampere

Rating

Voltage

Rating

Breaking

Capacity

I2TMelting

Integral(A2.S)

Agency Approvals
UL cUL



PSE
PFU0100A/B 100mA 250V/125V 50A@125V/250VAC 0.0015 ○ ○ ○
PFU0125A/B 125mA 250V/125V 50A@125V/250VAC 0.0025 ○ ○ ○
PFU0160A/B 160mA 250V/125V 50A@125V/250VAC 0.0042 ○ ○ ○
PFU0200A/B 200mA 250V/125V 50A@125V/250VAC 0.0065 ○ ○ ○
PFU0250A/B 250mA 250V/125V 50A@125V/250VAC 0.010 ● ● ○
PFU0300A/B 300mA 250V/125V 50A@125V/250VAC 0.018 ● ● ○
PFU0315A/B 315mA 250V/125V 50A@125V/250VAC 0.020 ● ● ○
PFU0350A/B 350mA 250V/125V 50A@125V/250VAC 0.025 ● ● ○
PFU0400A/B 400mA 250V/125V 50A@125V/250VAC 0.035 ● ● ○
PFU0500A/B 500mA 250V/125V 50A@125V/250VAC 0.060 ● ● ○
PFU0630A/B 630mA 250V/125V 50A@125V/250VAC 0.150 ● ● ○
PFU0750A/B 750mA 250V/125V 50A@125V/250VAC 0.350 ● ● ○
PFU0800A/B 800mA 250V/125V 50A@125V/250VAC 0.5 ● ● ○
PFU1100A/B 1A 250V/125V 50A@125V/250VAC 0.6 ● ● ○
PFU1125A/B 1.25A 250V/125V 50A@125V/250VAC 1.2 ● ● ○
PFU1150A/B 1.5A 250V/125V 50A@125V/250VAC 1.6 ● ● ○
PFU1160A/B 1.6A 250V/125V 50A@125V/250VAC 1.8 ● ● ○
PFU1200A/B 2A 250V/125V 50A@125V/250VAC 2.4 ● ● ○
PFU1250A/B 2.5A 250V/125V 50A@125V/250VAC 3.2 ● ● ○
PFU1300A/B 3A 250V/125V 50A@125V/250VAC 6.0 ● ● ○
PFU1315A/B 3.15A 250V/125V 50A@125V/250VAC 7.0 ● ● ○
PFU1350A/B 3.5A 250V/125V 50A@125V/250VAC 7.5 ● ● ○
PFU1400A/B 4A 250V/125V 50A@125V/250VAC 8.0 ● ● ○
PFU1500A/B 5A 250V/125V 50A@125V/250VAC 15 ● ● ○
PFU1600A/B 6A 250V/125V 50A@125V/250VAC 24 ○ ○ ○
PFU1630A/B 6.3A 250V/125V 50A@125V/250VAC 28 ○ ○ ○
PFU1700A/B 7A 250V/125V 50A@125V/250VAC 36 ○ ○ ○
PFU1800A/B 8A 250V/125V 50A@125V/250VAC 40 ○ ○ ○
PFU2100A/B 10A 250V/125V 50A@125V/250VAC 45 ○ ○ ○
PFU2150A/B 15A 250V/125V 50A@125V/250VAC 50 ○ ○ ○





ELECTRICAL CHARACTERISTICS



% of Ampere Rating(In)

Blowing Time
100% * In 4 hours Min
200% * In 60 sec Max





Packaging



1) Quantity



Bulk 500 pcs in per poly bag;

10 poly bags in per inner box;

4 inner boxes in per outer carton



2) Size



A. Inner box: B. Outer carton:
L240±2 * W170±2 * H110±2 L390±5 * W240±5 * H250±5









IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting 5











IEC Standard 250V 3.6x10mm 5x20mm 6x30mm Fast Blow Ceramic Tube Fuse Miniature Cartridge Fuse 5A For Divine Lighting 6













How to Test a Ceramic Fuse



Ceramic fuses act as a safety device that interrupts the electrical power supply when electrical overloads or surges occur. Internal, thin, wire filaments melt and stop the electrical current to prevent harm to an appliance or other electrical device. A homeowner can determine if a glass fuse in blown by performing a visual inspection and looking for a break in the thin wire and a brown discoloration in the center of the fuse. A ceramic fuse, however, shows no damage upon visual inspection. Testing a ceramic fuse is the only way to tell if the fuse has blown.



Step 1 Turn off the power supply to the appliance or other electrical device if the device is hard-wired. If the appliance has a plug, unplug the power cord.
Step 2 Set an ohmmeter or multimeter dial to zero. Multimeters read both volts and ohms. If you are using a multimeter, set the multimeter to the ohm setting.
Step 3 Touch one end of the fuse terminal with the black test probe and the other end of the fuse terminal with the red test probe.
Step 4 Read the ohmmeter display. If the display shows the needle at zero or the digital display shows zero, the fuse is in good working condition. Any other reading above zero indicates the fuse is no longer working and has blown.
