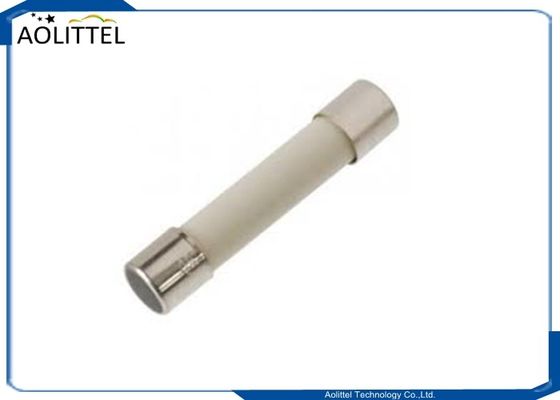

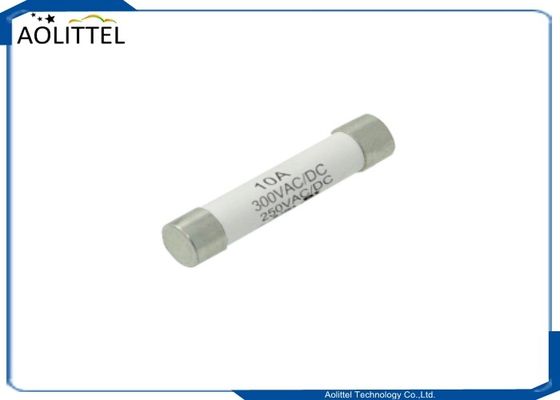

6.300.10 High Breaking Capacity 6x32mm Fast Acting Ceramic Tube Fuses F10A 250V 300V AC DC





Description



Fast Acting, high breaking capacity under 250Vac
6x32mm physical size
Special Engineering Material tube, Silver plated copper cap construction
Designed to UL 248-1
Lead free and Halogen free material

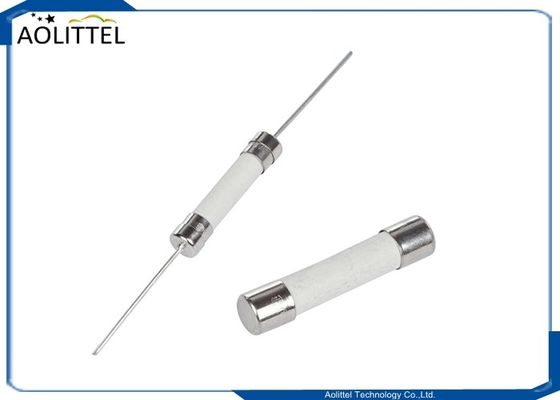

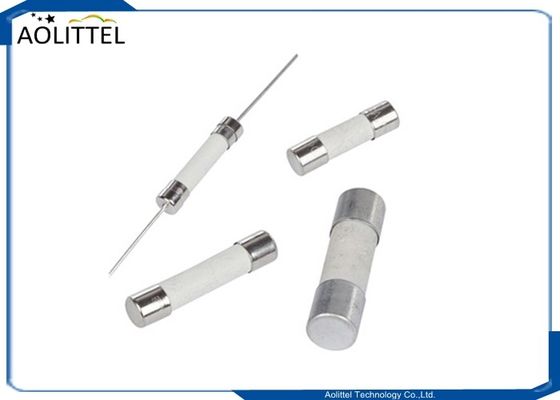

Available in cartridge and axial lead form and with various lead forming dimensions.





Application



• Uninterruptible Power Supplies (UPS)

• Three-Phase Power Supplies





Electrical Characteristcs



Rated Current 100% In 250% In
500mA~50A 4 hours min. 120 sec max.





Ordering Info



P/N Rated Rated Breaking Typical Cold Typical Typical
Voltage Current Capacity Resistance Voltage Pre-Arcing I²t
(V) (A) (KA) (mOhms)² Drop (mV) (A²Sec)³
6.300.0.2 250Vac/dc 300Vac/dc 0 . 2 1KA 1830 780 0.0036
6.300.0.25 0.25 1760 760 0.004
6.300.0.4 0.4 1650 700 0.059
6.300.0.5 0.5 1260 650 0.23
6.300.1 1 1040 600 0.4
6.300.1.25 1.25 390 560 0.55
6.300.1.5 1.5 300 540 0.6
6.300.2 2 110 400 3
6.300.2.5 2.5 80 300 4.5
6.300.3 3 60 270 4.8
6.300.4 4 40 230 10
6.300.5 5 30 200 28
6.300.6 6 20 186 52
6.300.8 8 17 175 100
6.300.10 10 16 170 120
6.300.12 12 8.8 120 148
6.300.15 15 7.5 110 158
6.300.20 20 4.5 140 1005
6.300.25 25 6.0 130 2000
6.300.30 30 2.8 120 3000
6.300.40 40 2.5 115 4220
6.300.50 50 1.6 100 12000



* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25
* Typical Pre-arcing I²t are measured at 10In Current





Dimensions(Unit: mm)



High Breaking Capacity 6x32mm Fast Acting Ceramic Tube Fuses F10A 250V 300V AC DC 0





Parameters



Attribute Value
Current Rating 10 A
Voltage Rating 300 V ac
Fuse Speed F
Fuse Size 6.3 x 32mm
Diameter 6mm
Overall Length 32mm
Body Material Ceramic
High Rupture Capacity Yes
Breaking Capacity at Maximum Voltage Rating 1000 A
Includes Indicator No
Size Designation Miniature
UL Class UL 248-1





Datasheet in JPG



High Breaking Capacity 6x32mm Fast Acting Ceramic Tube Fuses F10A 250V 300V AC DC 1High Breaking Capacity 6x32mm Fast Acting Ceramic Tube Fuses F10A 250V 300V AC DC 2





Recommended Accessories



Accessory Type Series Description Max Application Voltage Max Application Amperage



Holder 150322 In-Line Fuseholder 500 15

Block 354 Low Profile OMNI-BLOK® Fuse Block 600 30

359 High Current Screw Terminal Fuse Block 30

Clip 122 High Current Traditional PC Board Fuse Clip 1000 30

101 Rivet/Eyelet Type Fuse Clip 1000 15 Notes:



1. Do not use in applications above rating.

2. Please refer to fuseholder data sheet for specific re-rating information. 3. Please contact factory for applications greater than the max voltage and amperage shown.
