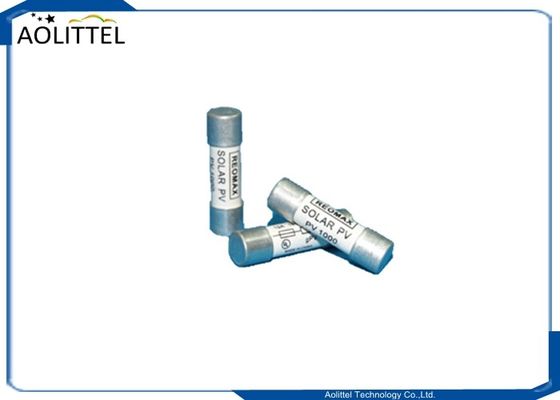

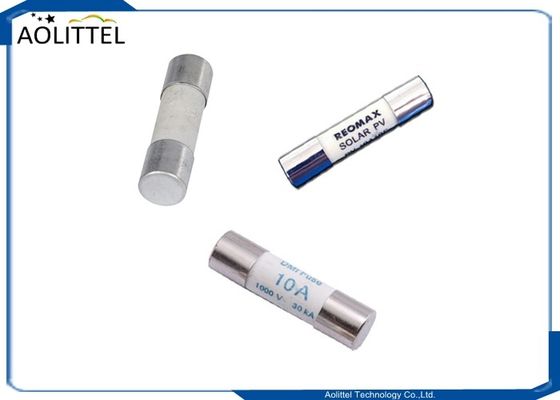

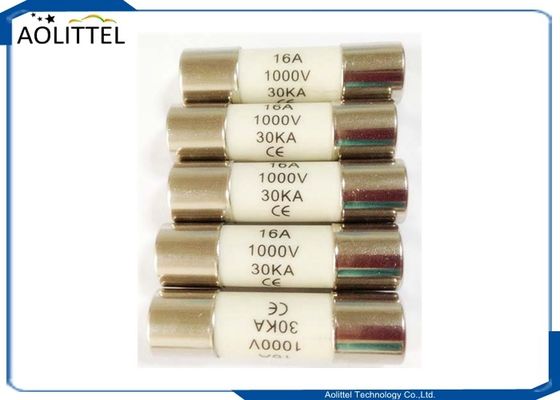

5AG 10x38mm Cylinder Midget Link Photovoltaic Ceramic Tube Fuse 10A 1000V gPV For Digital Multimeters Solar Panel
Description
The PV1000 Solar Protection Fuse links series has been specifically designed for the protection of photovoltaic (PV) systems, this family of Midget style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverse overcurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the PV1000 series is to safely interrupt faulted circuits up to this demanding voltage level.
AOLITTEL offers more than 11 ampere ratings to match specific requirements in a variety of applications.
PV1000 series of 10x38mm, 1000Vdc PV fuses are for protecting and isolating photovoltaic strings. The fuses are specifically designed for use in PV systems with extreme ambient temperature, high cycling and low fault current conditions (reverse current, multi-array fault) string arrays. Four styles available for application flexibility
10 x 38mm, 10 Amp, 1000V ceramic fuse. Commonly used in protection circuits of digital multimeters.
10x38mm midget fuses help provide supplemental overcurrent protection and have the capability to limit currents with fast-acting reliability. 10x38mm midget fuses can be used in a variety of applications. Select a series below based on the electrical requirements of your system.
Features
• Meets UL and IEC photovoltaic standards for global acceptance
• Low watts loss performance for energy efficiency
• Low temperature rise performance for more precise sizing
• In-line crimp terminal version is easy to apply in wire harness construction
Typical applications
• Combiner boxes
• Inverters
• PV wire harnesses
Size (mm)
Specification
|
Part No.
|
Rated
Current
|
Rated
Voltage
|
Breaking
Capacity
|
I2t (A2S)
|
Watts Loss(W)
|
| Pre-Arcing |
Total at 1000V |
0.8In |
1.0In |
| PV1000.1A |
1A |
1000V
(DC)
|
10kA,
Time Constant
<1ms
|
0.15 |
0.4 |
0.8 |
1.5 |
| PV1000.2A |
2A |
1.3 |
3.4 |
0.7 |
1.1 |
| PV1000.3A |
3A |
4 |
12 |
0.8 |
1.3 |
| PV1000.3.5A |
3.5A |
6.5 |
20 |
0.9 |
1.4 |
| PV1000.4A |
4A |
10 |
28 |
1.1 |
1.4 |
| PV1000.5A |
5A |
19 |
50 |
1.1 |
1.4 |
| PV1000.6A |
6A |
32 |
93 |
1.2 |
1.8 |
| PV1000.8A |
8A |
3.2 |
33 |
1.2 |
2.2 |
| PV1000.10A |
10A |
30 |
70 |
1.3 |
2.3 |
| PV1000.12A |
12A |
50 |
200 |
1.5 |
2.8 |
| PV1000.15A |
15A |
60 |
230 |
1.8 |
3 |
Installation Recommendations
Propose installation way as following picture.
A.Fuse clips installation
B.Multi-Pole Holders Assembly Kit(1/2/3/4 pole)
Packaging
Bulk
10 pcs in per poly bag; 1 poly bags in per inner box ; 18 inner boxes in per outer carton(6 * 3 levels)
A. Inner box : 54x42x23mm B. Outer carton 24x17x11cm
Suitable PV Fuse Holder
