Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack
Features Gallery Product Description Request A Quote
Features
Specifications
Sensor Type: DS18B20 Temperature Sensor
Chip: Original Dallas Maxim DS18B20
Housing: Ф8*30 Nylon Shell
Cable: AWG24 *3C, OD3.4mm
Connector: 3.5mm Audio Plug (3 Pole, Black)
Operating Temp: -55℃ To +125℃ (-67℉to +257℉)
High Light:

miniature temperature sensor

,

micro bit temperature sensor

Basic Infomation
Brand Name: Aolittel
Model Number: DS18B20-300L30D8M
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 2-3 Weeks
Payment Terms: T/T, MoneyGram
Supply Ability: 5,000,000 Pieces Per Month
Product Description


Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack


Application
Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System,Fish Tank (saltwater environment).

__________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________


Dimension  (mm)

Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 1


Internal Wiring Diagram

Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 2

Pin 1 Soldering to black GND ;
Pin 2 Soldering to white DQ ;
Pin 3 Soldering to red VDD;


Material List


NOMaterial NameItem/PN
2ChipDigital sensor chip DS18B20 (Imported original Dallas Maxim)
2CoatingEpoxy resin (Black)
2HousingФ8*30 Nylon shell
2Lead wire

Skin: Silica gel line or TPE(Black or Gray), Neri: Teflon ,AWG24 *3C, OD3.4mm, L=300mm


2Terminal3.5mm Audio plug (3 pole, Black)

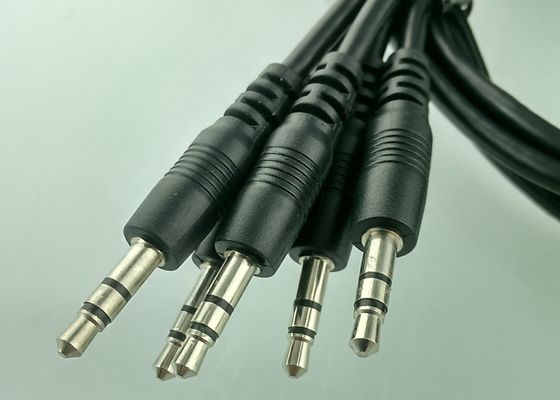

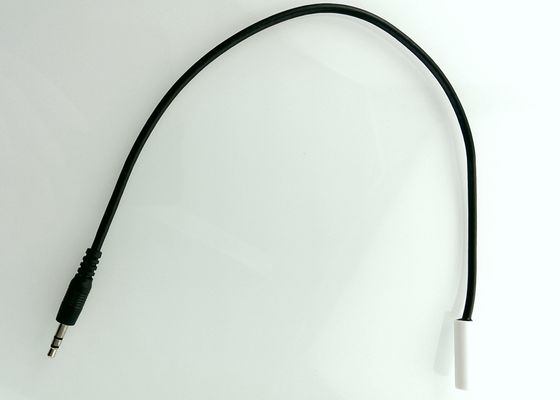

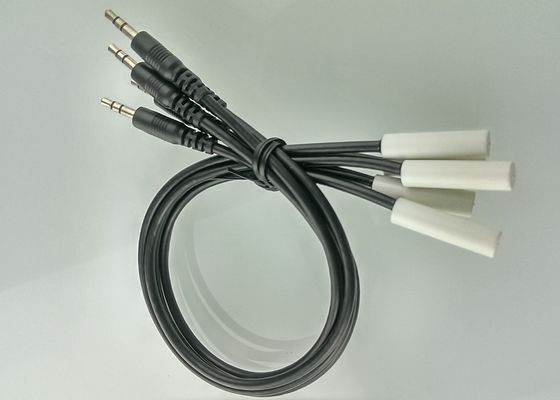

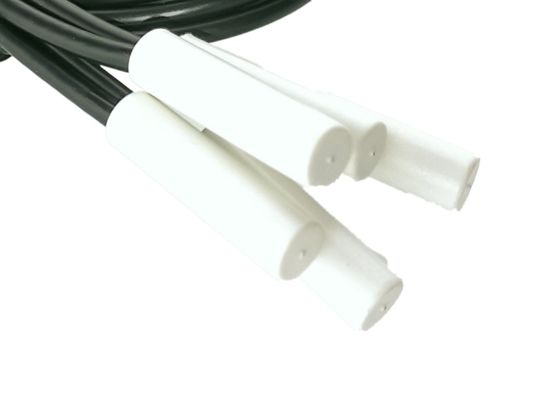

Actual Product Photos

Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 3
Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 4
Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 5



Description

This is the latest DS18B20 digital temperature sensor from Maxim IC. Reports degrees C with 9 to 12-bit precision, -55C to 125C (+/-0.5C). Each sensor has a unique 64-Bit Serial number etched into it - allows for a huge number of sensors to be used on one data bus. This is a wonderful part that is the corner stone of many data-logging and temperature control projects.


Structure

DS18B20 is a waterproof temperature sensor packed in a metal and waterproof housing. For communication with Croduino/Arduino, it uses only one wire and it is possible to put up to 127 sensors on one code and measure temperature in 127 different places by using just one wire!


Features

Ambient temperature range wall mount.
High impact ABS plastic enclosure.
Surface or wall mount.
Available with a Maxim DS18S20
No external power required, or can be optionally powered for faster operation.
Automatic unique device addressing.
Wide temperature measuring range: -55℃ to +125℃ (-67℉to +257℉)
Adopts ds18b20 temperature sensor chip, high accuracy and sensitive
Each pin of the chip is separated by heat Shrinkable pipe and sealed by adhesive inside, avoid short circuit and waterproof
Ideal choice for environment, Lab, refrigerator, car, Green house temperature monitoring
Flexibility resistance, Better thermal conductivity.
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.


Specification


Temperature Range (Teflon):
-55 to 125 ºC
Accuracy (-10 to +85 ºC):
-0.5 to +0.5 ºC
Accuracy (-55 to +122 ºC):
-2 to +2 ºC
Resolution (DS18S20):
0.5 ºC
Resolution (DS18B20) - Programmable:
0.0625 or 0.5 ºC
Supply Voltage:
3.0 - 5.5 Volts
Active Current:
1 MilliAmp
Standby Current:
100 NanoAmps
Input Logic High:
2.2 - 5.5 Volts
Input Logic Low:
-0.3 - +0.8 Volts
Dimensions (L X W X D):
2.40 X 1.85 X 0.93 Inches


This guide explores how to connect a DS18B20 one-wire temperature sensor to a CircuitPython board and read its temperature from Python code using a few simple CircuitPython modules.

DS18B20 temperature sensors like the DS18B20 are devices that can measure temperature with a minimal amount of hardware and wiring. These sensors use a digital protocol to send accurate temperature readings directly to your development board without the need of an analog to digital converter or other extra hardware. You can get one-wire sensors in different form factors like waterproof and high temperature probes--these are perfect for sensing temperature in many different projects and applications. And since these sensors use the one-wire protocol you can even have multiple of them connected to the same pin and read all their temperature values independently. With just a few connections and some CircuitPython code you'll be sensing temperature in no time!


DS18B20 Programmable Resolution 1-Wire Digital Thermometer

Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 6Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 7
Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 8Arduino Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack 9
For detailed datasheet, pls download PDF here :    _______________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________
