Home /Products/Micro Temperature Sensor/Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher

Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher

1000 Pieces
MOQ
0.8~1.5 US Dollars Per Pieces
Price
Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher
Features Gallery Product Description Request A Quote
Features
Specifications
Sensor Type: NTC Temperature Sensor For Washing Machine
NTC Thermistor: R60=1.204KΩ±2% B25/85=3966K±1.5%
Stainless Steel Dimension: 10.0X14.5X30.5mm
Terminal: 6.3 Type PBTB Connect Socket Black
Response Time: 16 Sec
Operating Temperature: -20~+130C
High Light:

miniature temperature sensor

,

microchip temperature sensor
Basic Infomation
Brand Name: AOLITTEL
Model Number: ALT482X3966XA45AX
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 2 Weeks
Payment Terms: T/T, Western Union
Supply Ability: 800,000 Pieces Per Month
Product Description

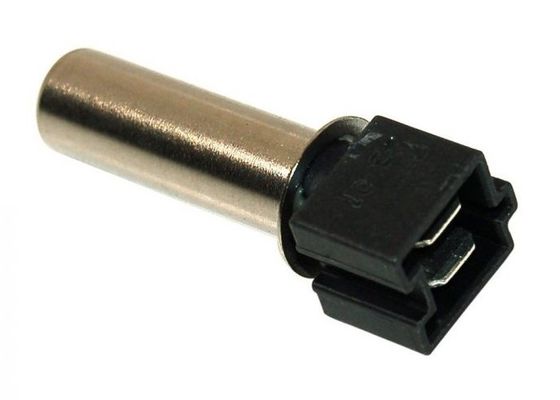

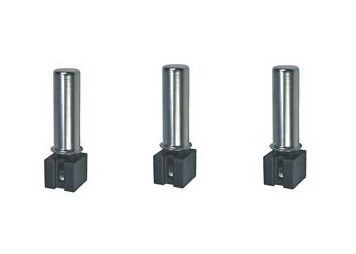

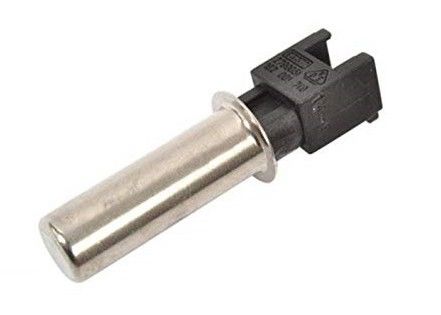

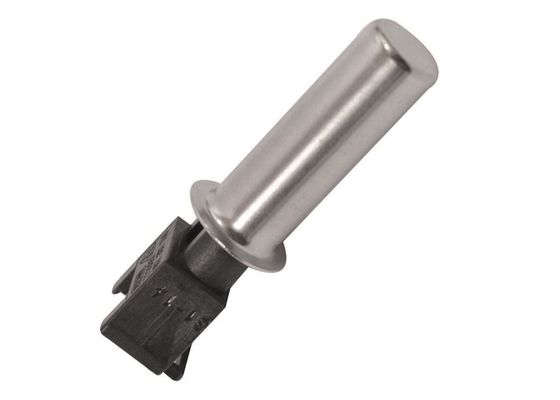

Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher





Anatomical drawing (mm)





Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher 0

NO COMPONENT MATERIAL AND SPECIFICATIONS MARK
2-1. THERMISTOR

MFB482X3950FB

(R60=1.204KΩ±2% B25/85=3966K±1.5%)


2-2. CAP 10.0X14.5X30.5 Expanded stainless steel shell (DES1410001 A-0) SUS304
2-3. EPOXY FILLING G-308:GU-308:G-008X Black
2-4. TERMINAL 6.3 Type PBTB Connect socket Black PBTB






Feature



Stainless steel is humid and corrosion resistant, and is mainly used in household cleaning appliances. In addition, voltage withstand standard is increased, and voltage of the sensor ranges from 1500V to 3750V.





Application



The sensor is mainly used in washing machine, clothes dryer, all-in-one washer and dryer, etc.

Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher 1



Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher 2




Electrical Performances

Number Item Symbol Test Conditions Min. Nor. Max. Unit
4-1. Resistance At 0℃ R0

Ta=0±0.05℃

PT≦0.1mw

 15.031 15.768 16.505 kΩ
4-2. Resistance At 25℃ R25

Ta=25±0.05℃

PT≦0.1mw

 4.661 4.828 4.995 kΩ
4-3. Resistance At 30℃ R30

Ta=30±0.05℃

PT≦0.1mw

 3.764 3.89 4.016 kΩ
4-4. Resistance At 40℃ R40

Ta=40±0.05℃

PT≦0.1mw

 2.5 2.573 2.645 kΩ
4-5. Resistance At 60℃ R60

Ta=60±0.05℃

PT≦0.1mw

 1.18 1.204 1.228 kΩ
4-6. Resistance At 83℃ R83

Ta=83±0.05℃

PT≦0.1mw

 0.538 0.554 0.569 kΩ
4-7. Resistance At 85℃ R85

Ta=85±0.05℃

PT≦0.1mw

 / 0.52
4-8. B Value B25/85   3906.5 3966 4025.5 k
4-9. Thermal Dissipation Constant δ T1=85±0.2℃,Ta=25±1℃ / 5.0 / mw/℃
4-10. Response Time τ

T1=47.1±0.2℃, T2=85±0.2℃ Ta=25±1℃

 / 16 / sec
4-11. Insulation test / 500VDC 1Sec 100 / / MΩ
4-12. Hi-Pot Test / AC3750V 1Sec / / 0.5 Sec
4-13. Product Working Temp.Range / / -20 / +130 ℃
4-14. Max Power rating at 25℃ / 200 / / / mW





Resistance Vs Temperature Table



R -T Table
R60=1.204KΩ±2% B25/85=3966K±1.5%
T(℃) Rnom(KΩ) Rmin(KΩ) Rmax(KΩ) dR/Rsoll (%) dT (℃) DeltaR/DeltaT
(KΩ/℃)
min max max min
0 15.768 15.031 16.505 -4.7 4.7 -0.94 0.94 0.784
1 14.984 14.292 15.676 -4.6 4.6 -0.94 0.94 0.740
2 14.244 13.593 14.894 -4.6 4.6 -0.93 0.93 0.700
3 13.544 12.933 14.156 -4.5 4.5 -0.93 0.93 0.660
4 12.884 12.309 13.459 -4.5 4.5 -0.92 0.92 0.625
5 12.259 11.718 12.800 -4.4 4.4 -0.92 0.92 0.590
6 11.669 11.160 12.178 -4.4 4.4 -0.91 0.91 0.559
7 11.110 10.631 11.589 -4.3 4.3 -0.91 0.91 0.528
8 10.582 10.131 11.033 -4.3 4.3 -0.90 0.90 0.500
9 10.082 9.658 10.506 -4.2 4.2 -0.90 0.90 0.473
10 9.609 9.209 10.008 -4.2 4.2 -0.89 0.89 0.450
11 9.159 8.783 9.535 -4.1 4.1 -0.88 0.88 0.426
12 8.733 8.378 9.088 -4.1 4.1 -0.88 0.88 0.403
13 8.330 7.995 8.664 -4.0 4.0 -0.87 0.87 0.383
14 7.947 7.632 8.262 -4.0 4.0 -0.87 0.87 0.363
15 7.584 7.287 7.881 -3.9 3.9 -0.87 0.87 0.343
16 7.241 6.960 7.521 -3.9 3.9 -0.86 0.86 0.327
17 6.914 6.650 7.178 -3.8 3.8 -0.85 0.85 0.310
18 6.604 6.355 6.854 -3.8 3.8 -0.85 0.85 0.294
19 6.310 6.075 6.546 -3.7 3.7 -0.84 0.85 0.279
20 6.031 5.809 6.253 -3.7 3.7 -0.83 0.83 0.266
21 5.765 5.556 5.975 -3.6 3.6 -0.83 0.83 0.252
22 5.513 5.315 5.711 -3.6 3.6 -0.82 0.83 0.240
23 5.273 5.086 5.460 -3.5 3.5 -0.82 0.82 0.228
24 5.045 4.868 5.221 -3.5 3.5 -0.82 0.81 0.217
25 4.828 4.661 4.995 -3.5 3.5 -0.81 0.81 0.207
26 4.621 4.464 4.779 -3.4 3.4 -0.80 0.81 0.196
27 4.425 4.276 4.574 -3.4 3.4 -0.80 0.80 0.187
28 4.238 4.097 4.379 -3.3 3.3 -0.79 0.79 0.178
29 4.060 3.927 4.193 -3.3 3.3 -0.78 0.78 0.170
30 3.890 3.764 4.016 -3.2 3.2 -0.78 0.78 0.162
31 3.728 3.610 3.847 -3.2 3.2 -0.77 0.77 0.154
32 3.574 3.462 3.687 -3.1 3.2 -0.76 0.77 0.147
33 3.427 3.321 3.534 -3.1 3.1 -0.76 0.76 0.140
34 3.287 3.187 3.388 -3.0 3.1 -0.75 0.76 0.133
35 3.154 3.059 3.249 -3.0 3.0 -0.75 0.75 0.127
36 3.027 2.936 3.117 -3.0 3.0 -0.75 0.74 0.122
37 2.905 2.820 2.990 -2.9 2.9 -0.73 0.73 0.116
38 2.789 2.708 2.870 -2.9 2.9 -0.74 0.74 0.110
39 2.679 2.602 2.755 -2.9 2.8 -0.73 0.72 0.106
40 2.573 2.500 2.645 -2.8 2.8 -0.72 0.71 0.101
41 2.472 2.403 2.540 -2.8 2.8 -0.71 0.70 0.097
42 2.375 2.310 2.440 -2.7 2.7 -0.71 0.71 0.092
43 2.283 2.222 2.344 -2.7 2.7 -0.69 0.69 0.088
44 2.195 2.137 2.253 -2.6 2.6 -0.69 0.69 0.084
45 2.111 2.055 2.166 -2.7 2.6 -0.69 0.68 0.081
46 2.030 1.978 2.082 -2.6 2.6 -0.68 0.68 0.077
47 1.953 1.903 2.002 -2.6 2.5 -0.68 0.66 0.074
48 1.879 1.832 1.926 -2.5 2.5 -0.67 0.67 0.070
49 1.809 1.764 1.853 -2.5 2.4 -0.66 0.65 0.068
50 1.741 1.699 1.783 -2.4 2.4 -0.65 0.65 0.065
51 1.676 1.637 1.716 -2.3 2.4 -0.64 0.66 0.061
52 1.615 1.577 1.652 -2.4 2.3 -0.63 0.62 0.060
53 1.555 1.519 1.591 -2.3 2.3 -0.63 0.63 0.057
54 1.498 1.464 1.532 -2.3 2.3 -0.63 0.63 0.054
55 1.444 1.412 1.476 -2.2 2.2 -0.62 0.62 0.052
56 1.392 1.361 1.422 -2.2 2.2 -0.62 0.60 0.050
57 1.342 1.313 1.371 -2.2 2.2 -0.60 0.60 0.048
58 1.294 1.266 1.321 -2.2 2.1 -0.61 0.59 0.046
59 1.248 1.222 1.274 -2.1 2.1 -0.59 0.59 0.044
60 1.204 1.180 1.228 -2.0 2.0 -0.56 0.56 0.043
61 1.161 1.137 1.186 -2.1 2.2 -0.60 0.62 0.040
62 1.121 1.097 1.145 -2.1 2.1 -0.62 0.62 0.039
63 1.082 1.058 1.105 -2.2 2.1 -0.63 0.61 0.038
64 1.044 1.021 1.067 -2.2 2.2 -0.64 0.64 0.036
65 1.0080 0.9859 1.0310 -2.2 2.3 -0.65 0.67 0.034
66 0.9739 0.9518 0.9959 -2.3 2.3 -0.67 0.66 0.033
67 0.9407 0.9191 0.9623 -2.3 2.3 -0.68 0.68 0.032
68 0.9088 0.8876 0.9300 -2.3 2.3 -0.69 0.69 0.031
69 0.8781 0.8574 0.8989 -2.4 2.4 -0.70 0.71 0.029
70 0.8487 0.8283 0.8690 -2.4 2.4 -0.72 0.72 0.028
71 0.8204 0.8004 0.8403 -2.4 2.4 -0.74 0.73 0.027
72 0.7932 0.7736 0.8127 -2.5 2.5 -0.75 0.74 0.026
73 0.7670 0.7478 0.7862 -2.5 2.5 -0.76 0.76 0.025
74 0.7418 0.7230 0.7606 -2.5 2.5 -0.78 0.78 0.024
75 0.7176 0.6992 0.7360 -2.6 2.6 -0.79 0.79 0.023
76 0.6943 0.6762 0.7123 -2.6 2.6 -0.80 0.80 0.023
77 0.6718 0.6541 0.6895 -2.6 2.6 -0.82 0.82 0.022
78 0.6502 0.6329 0.6675 -2.7 2.7 -0.83 0.83 0.021
79 0.6294 0.6124 0.6463 -2.7 2.7 -0.85 0.84 0.020
80 0.6093 0.5927 0.6260 -2.7 2.7 -0.86 0.87 0.019
81 0.5900 0.5738 0.6063 -2.7 2.8 -0.88 0.88 0.019
82 0.5715 0.5555 0.5874 -2.8 2.8 -0.89 0.89 0.018
83 0.5536 0.5379 0.5692 -2.8 2.8 -0.91 0.90 0.017
84 0.5363 0.5210 0.5516 -2.9 2.9 -0.92 0.92 0.017
85 0.5197 0.5047 0.5346 -2.9 2.9 -0.93 0.93 0.016
86 0.5036 0.4889 0.5183 -2.9 2.9 -0.95 0.95 0.016
87 0.4881 0.4738 0.5025 -2.9 3.0 -0.96 0.97 0.015
88 0.4732 0.4591 0.4873 -3.0 3.0 -0.98 0.98 0.014
89 0.4588 0.4450 0.4726 -3.0 3.0 -0.99 0.99 0.014
90 0.4449 0.4314 0.4585 -3.0 3.1 -1.02 1.02 0.013
91 0.4316 0.4183 0.4448 -3.1 3.1 -1.02 1.02 0.013
92 0.4186 0.4057 0.4316 -3.1 3.1 -1.04 1.05 0.012
93 0.4062 0.3935 0.4189 -3.1 3.1 -1.05 1.05 0.012
94 0.3941 0.3817 0.4066 -3.1 3.2 -1.07 1.08 0.012
95 0.3825 0.3703 0.3947 -3.2 3.2 -1.09 1.09 0.011
96 0.3713 0.3593 0.3832 -3.2 3.2 -1.10 1.09 0.011
97 0.3604 0.3487 0.3721 -3.2 3.2 -1.11 1.11 0.011
98 0.3499 0.3385 0.3614 -3.3 3.3 -1.13 1.14 0.010
99 0.3398 0.3286 0.3510 -3.3 3.3 -1.14 1.14 0.010
100 0.3300 0.3190 0.3410 -3.3 3.3 -1.17 1.17 0.009
101 0.3206 0.3099 0.3314 -3.3 3.4 -1.18 1.19 0.009
102 0.3115 0.3010 0.3221 -3.4 3.4 -1.21 1.22 0.009
103 0.3028 0.2924 0.3131 -3.4 3.4 -1.22 1.21 0.009
104 0.2943 0.2841 0.3044 -3.5 3.4 -1.23 1.22 0.008
105 0.2860 0.2761 0.2960 -3.5 3.5 -1.25 1.27 0.008
106 0.2781 0.2684 0.2878 -3.5 3.5 -1.3 1.3 0.008
107 0.2704 0.2609 0.2799 -3.5 3.5 -1.28 1.28 0.007
108 0.2630 0.2536 0.2723 -3.6 3.5 -1.31 1.29 0.007
109 0.2558 0.2466 0.2649 -3.6 3.6 -1.31 1.30 0.007
110 0.2488 0.2398 0.2578 -3.6 3.6 -1.32 1.32 0.007
111 0.2420 0.2332 0.2508 -3.6 3.6 -1.33 1.33 0.007
112 0.2354 0.2268 0.2440 -3.7 3.7 -1.34 1.34 0.006
113 0.2290 0.2206 0.2375 -3.7 3.7 -1.38 1.39 0.006
114 0.2229 0.2146 0.2311 -3.7 3.7 -1.38 1.37 0.006
115 0.2169 0.2088 0.2250 -3.7 3.7 -1.40 1.40 0.006
116 0.2111 0.2031 0.2190 -3.8 3.7 -1.43 1.41 0.006
117 0.2055 0.1977 0.2133 -3.8 3.8 -1.42 1.42 0.005
118 0.2000 0.1924 0.2077 -3.8 3.8 -1.46 1.48 0.005
119 0.1948 0.1873 0.2023 -3.9 3.9 -1.47 1.47 0.005
120 0.1897 0.1823 0.1970 -3.9 3.8 -1.45 1.43 0.005
121 0.1846 0.1774 0.1918 -3.9 3.9 -1.50 1.50 0.005
122 0.1798 0.1727 0.1868 -3.9 3.9 -1.48 1.46 0.005
123 0.1750 0.1681 0.1820 -3.9 4.0 -1.53 1.56 0.004
124 0.1705 0.1637 0.1772 -4.0 3.9 -1.51 1.49 0.005
125 0.1660 0.1594 0.1727 -4.0 4.0 -1.53 1.56 0.004
126 0.1617 0.1552 0.1682 -4.0 4.0 -1.55 1.55 0.004
127 0.1575 0.1512 0.1639 -4.0 4.1 -1.58 1.60 0.004
128 0.1535 0.1472 0.1597 -4.1 4.0 -1.62 1.59 0.004
129 0.1496 0.1434 0.1557 -4.1 4.1 -1.59 1.56 0.004
130 0.1457 0.1397 0.1517 -4.1 4.1 -1.60 1.60 　





How a NTC Sensor works on a washing machine





The temperature is controlled by the PCB by means of a NTC temperature sensor incorporated in the heating
element when you test it the Resistance drops as the temperature rises.



What is an NTC Sensor?
A thermistor is essentially a resistor that changes its electrical resistance at varying temperatures. The name is derived from a mix of thermal and resistor. They are used in washing machines Because their electrical resistance at various temperatures is known, it’s easy for the washing machine to monitor a thermistor and detect when certain temperatures are reached.

Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher 3

Check all connections first to the sensor and to the board they may have come loose, you are sometimes unlikely to see anything physically wrong but there might be a bad connection. Diagnosis is done by measuring the resistance with a continuity (or multi) meter. We can’t give readings for all thermistors because they vary, see my picture for an example, but you should be able to get a reading across both terminals. If it’s completely open circuit it’s likely to be faulty.



Thermostat Stainless Steel NTC Thermistor Temperature Sensor 1.204K 3966 For Bosch Siemens Washing Machine Dishwasher 4
