Name: Home Replacing Induction Cooker Glass NTC Thermistors Micro Temperature Sensor 100K 3950 With 2 Pin Wired 300mm
Brand: Aolittel
SKU: CWFB0104FC-301C12a
Price: 0.8 USD
Availability: InStock
Rating: 4.6 (191 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Induction Cooker Temperature Sensor

R25: 100KΩ±1%

B25/50: 3950±1%

Housing: Brass 2×0.3mm , Φ28×18.5 Silica Gel (Brown)

Casing: Φ2 L=15mm Heat Shrinkable Casing (Black)

Cable: L=300mm AWG26 200℃ Fluorine Plastic Wire (Black)

High Light:

miniature temperature sensor

micro bit temperature sensor

Basic Infomation

Brand Name: Aolittel

Model Number: CWFB0104FC-301C12a

Payment & Shipping Terms

Packaging Details: Bulk,1000pcs/6kg

Delivery Time: 2-4 Weeks

Payment Terms: T/T

Supply Ability: 1,000,000 Pieces Per Month

Gallery

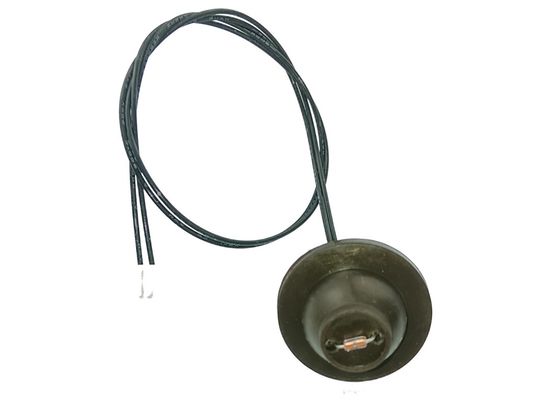

Home Replacing Induction Cooker Glass NTC Thermistors Micro Temperature Sensor 100K 3950 With 2 Pin Wired 300mm

Product Description

Home Replacing Induction Cooker Glass NTC Thermistors Micro Temperature Sensor 100K 3950 With 2 Pin Wired 300mm

Application: The sensor is installed on metallic surface for temperature detection, and the sensor is mostly installed in induction cooker, induction heating cooktop, and heat sink of kitchen appliances.

__________________________________________________________________________ Download________

Size (mm)

Home Replacing Induction Cooker Glass NTC Thermistors Micro Temperature Sensor 100K 3950 With 2 Pin Wired 300mm 1

Components

NO.	Name	Description
1	Thermistor	R25=100KΩ±1% B25/50=3950±1%
2	Housing	Brass 2×0.3mm , Φ28×18.5 Silica Gel (Brown)
3	Casing	Φ2 L=15mm Heat shrinkable casing (Black)
4	Cable	L=300mm AWG26 200℃ Fluorine plastic wire (Black)
5	Connector	XH-2Y/ XH-2.54(White)

Performances Requirements

Resistance at 25℃	100KΩ±1%
B25/50	3950±1%
Dissipation Factor	2.5mW/C
Thermal Time constant	10 sec
Operating temp.range	-40~+250C
Insulation resistance	100MOhm at 500VDC
Withstand voltage test	10 sec at 1500VAC

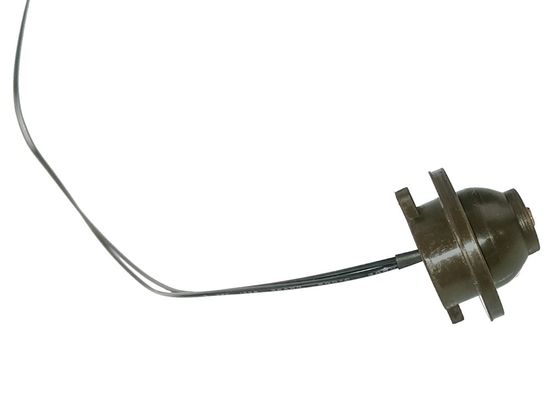

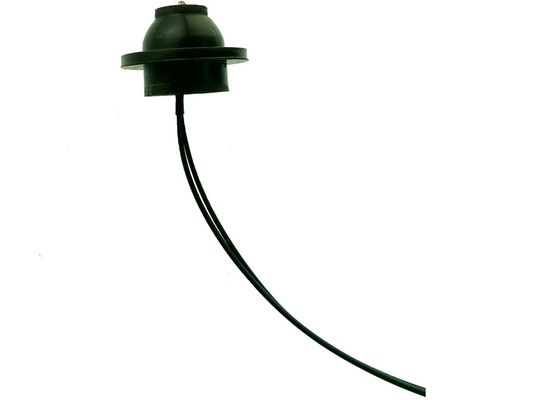

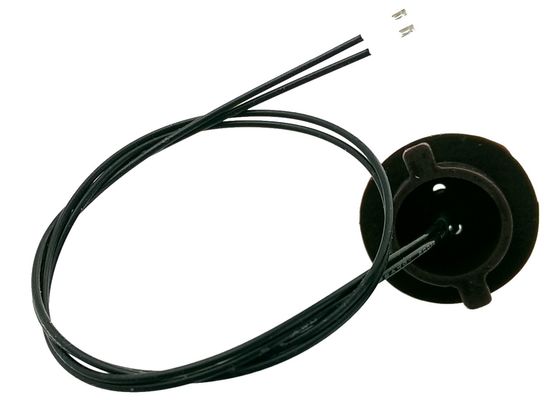

Actual Product Photos

Package

Bulk, 1000pcs per box,6kg/box.

How does an induction cooktop measure temperature?

Induction cookers use NTC Thermistor temperature sensors, more specifically thermocouples to measure temperature.
But for 60 deg. C, I don’t think it can be much useful, because the thermocouple cannot measure such precise temperature (it measures only in 100s from 100–2000) like you said.
If you have a thermometer, insert it in the cooktop and make sure thermometer bulb is immersed in liquid to be boiled. Keep a close watch on the thermometer all the time. On and off the induction continuously to maintain 60 deg. C in the cooktop.

Home Replacing Induction Cooker Glass NTC Thermistors Micro Temperature Sensor 100K 3950 With 2 Pin Wired 300mm 3

Reliability

NO	Item	Technical requirements	Test conditions and method
5-1.	High temp. Test	DR/R25£±3% DB/B£±3% No change with withstand voltage, Insalution performance. Appearance without damage.	100±5℃,power on 500±24 hrs,DC0.2mA
5-2.	Low temp. tes		-20±5℃,power on 500±24 hrs,DC0.2mA
5-3.	Endure moisture test		Store in environment 55±2℃,90%-95%RH for 500±24 hrs
5-4.	Temp. cycle test		–20℃×30min→Room temp.×10min→ in 100℃ water×30min→Room temp.×10min 10 cycles
5-5	Load electrify test		Power on DC1mA, 500hrs in room temp. and humid.
5-6	Drop test		Free fall into concrete floor from height 1M ,10 cycle.
5-7	Vibration test		Frequency range:10～55HZ Total amplitude 1.52mm 1 cycle 1 min ,direction and time X,Y,Z axs 2Hr each.
5-8	Bending test		Bend 180°binding site wire and epoxy resin.Back and forth 10 times
