Clip-spring Integrated Connector G18 Overmolded Probe Micro Temperature Sensor For Wall Mounted Condensing Gas Boiler
Overview
For gas boiler temperature control, a very fast thermal response is usually required. This is to ensure accurate temperature control of the hot water to help provide sufficient quantities, maximise boiler efficiency and also avoid the possibility of scalding.
We have a number of immersion and clip-on temperature sensors where the NTC thermistor is situated in the very tip of the sensor. This reduces the thermal path to the thermistor and thus minimises the response time.

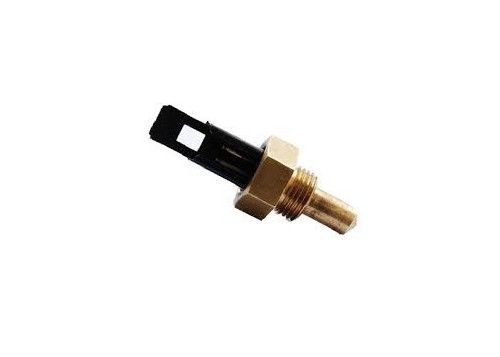

Screw threaded boss designs, surface sensor fixings for pipes and simple push-fit/clip-in versions are all available with industry standard connector options or flying leads if preferred.
______________________________________________________________________________
Download________
Model Specifications

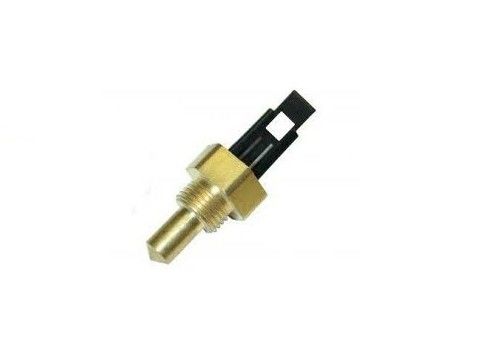

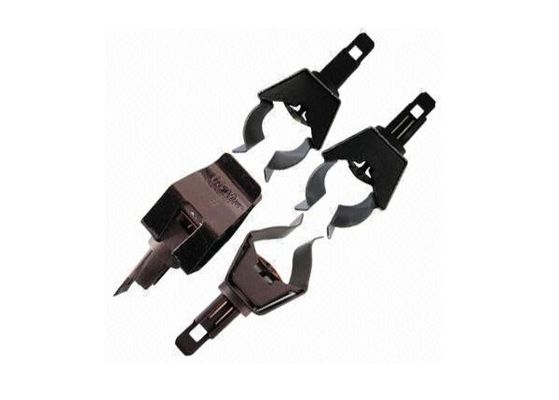

A : P/N: NSAB1103FB-43.5AT
| NO |
Material Name |
Model Description |
| 2-1 |
Thermistor |
R25=10Kohm±1% B25/85=3435±1% MF58R |
| 2-2 |
Line Pipe |
28AWG Black PVC Line Pipe |
| 2-3 |
Tube |
10L PTFE tube L=10mm |
| 2-4 |
Shell |
5.5*25.0+G1/8-28 Brass Shell(No tool marks) |
| 2-5 |
Epoxy Resin |
J105/J106B/J05X G108/GU01/GU-Mz Black |
| 2-6 |
Wafer |
2.5 MSF (3114) Black |

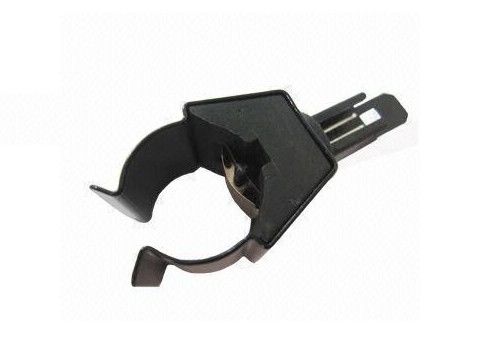

B: P/N: NSAB1103FB-57AC
| NO |
Material Name |
Model Description |
| 2-1 |
Pipe Clamp |
#18 Pipe Clamp/Blue Zinc Color |
| 2-2 |
Plastic Housing |
#18 Injection molding parts/Black/ Heightening type |
| 2-3 |
Copper Piece |
Elastic phosphor copper T0.1 |
| 2-4 |
Epoxy Resin |
GU108/GU01 G108/GU01/GU-Mz Black |
| 2-5 |
Silicone Grease |
Thermal conductivity white silicon grease |
| 2-6 |
Thermistor |
R25=10Kohm±1% B25/85=3435±1% MF58R |
| 2-7 |
Line Pipe |
28AWG Black PVC Line Pipe |
| 2-8 |
Polyimide Film |
8*15mm |
| 2-9 |
Silica gel |
704 Silica gel |
| 2-10 |
Wafer |
2.5 MSF (3114) Black |
C: P/N: NSAB1103FB–54.5AC
| NO |
Material Name |
Model Description |
| 2-1 |
Pipe Clamp |
#18 Pipe Clamp/Blue Zinc Color |
| 2-2 |
Plastic Housing |
#14 Injection molding parts/Black/ Heightening type |
| 2-3 |
Copper Piece |
Elastic phosphor copper T0.1 |
| 2-4 |
Epoxy Resin |
GU108/GU01 G108/GU01/GU-Mz Black |
| 2-5 |
Silicone Grease |
Thermal conductivity white silicon grease |
| 2-6 |
Thermistor |
R25=10Kohm±2.5% B25/85=3435±2% MF58R |
| 2-7 |
Line Pipe |
2651#28AWG Black PVC Line Pipe |
| 2-8 |
Polyimide Film |
8*15mm |
| 2-9 |
Wafer |
2.5 MSF (3114) Black |
Benefit
Suitable for measuring water temperature in various boiler systems
Standard industry style connector
Available in a variety of thread types
Custom tolerances available on request
Available in range of R/T curves
Temperature range -40ºC to +125ºC
Other RTD elements available (Platinum, Nickel)
Temperature measurement of water in hot water
Boiler systems
Industrial process control
Boiler control
Features
With clip-spring
Core element of temperature sensor glass-sealed thermistor,made in Shibuya, Japan
Encapsulation can resist humidity
Used spring steel as mounting bracket, so temperature sensorcan be easily and conveniently clamp onto the pipes
Durable
Fast response and humidity resistance
Nice stability for long-term use
Widely used in industry of wall-mounted boiler and dual-purposestove
Robust, compact design
Improved overall reliability
Integrated connector
RoHS Compliant
Suitable for measuring water temperature in various boiler systems
Standard industry style connector
Available in a variety of thread types
Custom tolerances available on request
Available in range of R/T curves
Temperature range -40ºC to +125ºC
Other RTD elements available (Platinum, Nickel)
Specifications
Resistor resistance value: R (25°C): 10kΩ ±1%B value of B (25/85°C): 3435K±1%
Withstand voltage test: 1800V AC/3 seconds should be no flickeror breakdown
Insulation resistance test: 500V DC than 100mΩ
Operating temperature: -30 to 125°C
Chip packaging technology: waterproof epoxy package
Compliant with RoHS Directive
Packaging: 1 piece/hole x 160 points/plate x 3 plates: 48pieces/box (small number of confirmed)
Suitable for measuring water temperature in various boiler systems
Standard industry style connector
Available in a variety of thread types
Custom tolerances available on request
Available in range of R/T curves
Temperature range -40ºC to +125ºC
Other RTD elements available (Platinum, Nickel)
Usage Conditions
Operating Temperature Range: (°C) -40 – 125
T_ref for Resistance (°C): 25
Temperature Accuracy (°C): ± 1 from 25 – 85
Package: Brass Immersion
