Name: AEC-Q200 Automotive Grade Certified EIA 1206 3216 Metric Slow Blow Surface Mount Chip Fuse 2.5A 24V 32V 63VDC 72VAC
Brand: Ao littel
SKU: 12 110 2.5
Rating: 4.6 (193 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Surface Mount Chip Fuse

Current Rating: 2.5A

Voltage Rating - DC: 63VDC/72VDC

Response Time: Slow

Package / Case: EIA 1206 (3216 Metric)

Mounting Type: Surface Mount

Breaking Capacity: 50A

Typical Cold. Resistance: 80 (mOhms) 2

Typical Voltage Drop: 240mV

Typical Pre-Arcing: 0.68 I2t (A2Sec) 3

MPQ: 3000PCS/Reel

Regulation/Standard: RoHS, Reach

High Light:

surface mount chip fuse

surface mount thermal fuse

Basic Infomation

Brand Name: Ao littel

Model Number: 12 110 2.5

Payment & Shipping Terms

Packaging Details: Tape,3000pcs Per Reel(Reel packaging per EIA-481-1 standard)

Delivery Time: 10 Workdays

Payment Terms: T/T

Supply Ability: 1,000,000,000 Pieces Per Month

Gallery

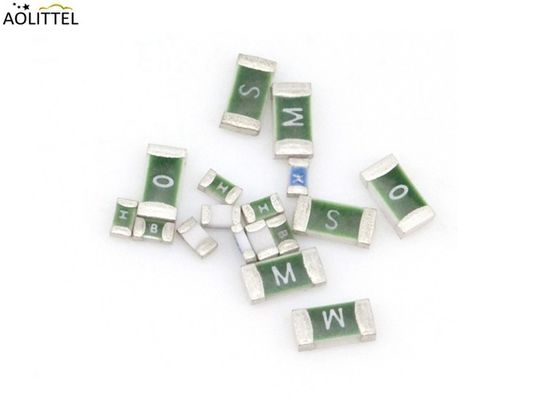

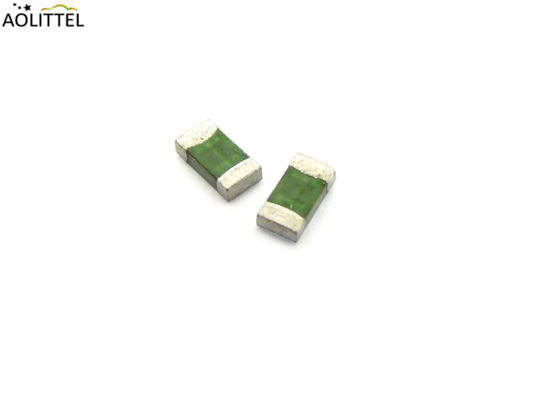

AEC-Q200 Automotive Grade Certified EIA 1206 3216 Metric Slow Blow Surface Mount Chip Fuse 2.5A 24V 32V 63VDC 72VAC

Product Description

AEC-Q200 Automotive Grade Certified EIA 1206 3216 Metric Slow Blow Surface Mount Chip Fuse 2.5A 24V 32V 63VDC 72VAC

Blow Electrical Characteristics

Electrical Characteristics
Rated Current	1.0In	2.0In	2.5In	3.0In	3.5In	10.0In
1A~3A	4 hour min.	1sec-60sec max.	5 sec max. max.	0.1sec – 3sec	-	0.2ms – 20ms
3.5A~5A	4 hour min.	-	5 sec max.	0.1sec – 3sec	-	0.2ms – 20ms
7A~10A	4 hour min.	-	-	-	5 sec max.	0.2ms – 10ms

______________________________________________________________________________ Download________

Performances

Part No.	Rated Voltage		Rated Current (A)	Breaking Capacity (A) ¹	Typical Cold. Resistance (mOhms) ²	Typical Voltage Drop (mV)	Typical Pre-Arcing I²t (A²Sec) ³	Alpha Mark
Part No.	DC		Rated Current (A)	Breaking Capacity (A) ¹	Typical Cold. Resistance (mOhms) ²	Typical Voltage Drop (mV)	Typical Pre-Arcing I²t (A²Sec) ³	Alpha Mark
12 110 1	72V	63V	1	50A	480	510	0.11	H
12 110 1.5			1.5	50A	230	367	0.17	K
12 110 2			2	50A	140	316	0.43	N
12 110 2.5			2.5	50A	80	240	0.68	O
12 110 3			3	50A	50	187	1.41	P
12 110 3.5			3.5	50A	38	180	1.72	R
12 110 4			4	50A	34	173	1.78	S
12 110 4.5	32V		4.5	50A	25	164	2.65	X
12 110 5			5	50A	21.5	145	2.91	T
12 110 7			7	50A	12.3	140	5.72	7
12 110 8	24V		8	300A	10	123	6.8	M
12 110 10	24V		10	300A	7	110	10.6	U

* DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source)

* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃

* Typical Pre-arching I²t are measured at 10In Current

Dimension (Unit: mm/inch)

Top view Side view

AEC-Q200 Automotive Grade Certified EIA 1206 3216 Metric Slow Blow Surface Mount Chip Fuse 2.5A 24V 32V 63VDC 72VAC 1

Environmental Characteristics

Storage Conditions ………………+40 °C Max. 70% RH Max. Packed in original packaging.

Package information

Model	Q’ty/Reel
12 110 X	3000pcs
Note: Reel packaging per EIA-481-1 standard

Description

12 110 Series are the fuses set the industry standard for performance,reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses.

Features

Slow blow
Small size,1206 SMD
Current rage from 1A to 10A
Wide operating range from -55C to 125C
Tape and reel for automatic SMD placement
Compatible with 260C IR Pb-free and wave soldering process
RoHS 2 complaint (MSL=1)
Halogen Free
Leadfree
