Name: Bourns SF-0603SP200-2 Cross 1608 Metric SMD SingleFuse Slow Blow Surface Mount Fuse 2A 32VDC For Overcurrent Protection
Brand: Ao littel
SKU: 06.110.2
Rating: 5 (147 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Category: Surface Mount Fuses

Fuse Type: Time Delay / Slow Blow

Current Rating: 2 A

Voltage Rating DC: 32 VDC

Fuse Size / Group: EIA 0603 (1608 Metric)

Minimum Operating Temperature: - 20 C

Maximum Operating Temperature: + 105 C

Packaging: Reel

Resistance: 72 MOhm

Height: 0.48 Mm

Length: 1.6 Mm

Width: 0.81 Mm

Interrupt Rating: 50 A At 32 VDC

Factory Pack Quantity: 5000 Pieces

Tradename: SinglFuse

Unit Weight: 0.000045 Oz (0.12g)

High Light:

surface mount resettable fuse

surface mount thermal fuse

Basic Infomation

Brand Name: Ao littel

Model Number: 06.110.2

Payment & Shipping Terms

Packaging Details: Tape ,5000pcs/Reel,unit weight: 2g/piece

Delivery Time: 10 Workdays

Payment Terms: T/T

Supply Ability: 800,000,000 Pieces

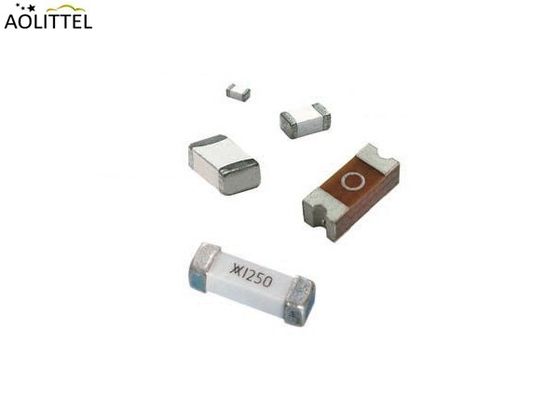

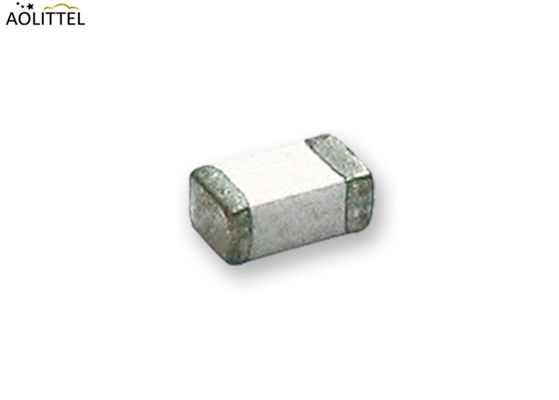

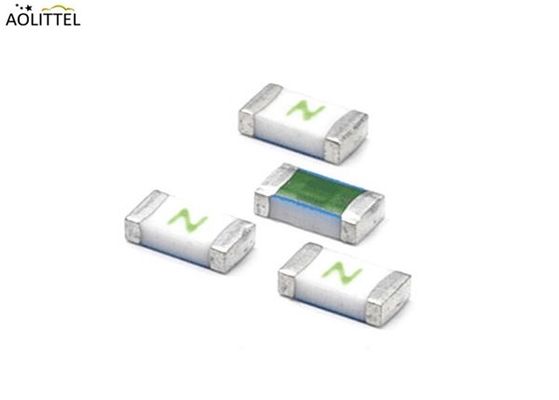

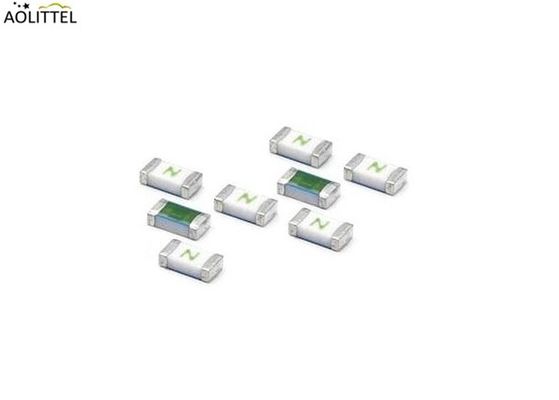

Gallery

Bourns SF-0603SP200-2 Cross 1608 Metric SMD SingleFuse Slow Blow Surface Mount Fuse 2A 32VDC For Overcurrent Protection

Product Description

Bourns SF-0603SP200-2 Cross 1608 Metric SMD SingleFuse Slow Blow Surface Mount Fuse 2A 32VDC For Overcurrent Protection

Description

06.110 Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses.

______________________________________________________________________________ Download________

Bourns SF-0603SP200-2 Cross 1608 Metric SMD SingleFuse Slow Blow Surface Mount Fuse 2A 32VDC For Overcurrent Protection 1

Features

Time lag thin film chip fuse for overcurrent protection
1608 (EIA 0603) miniature footprint
Surface mount packaging for automated assembly
UL listed (UL 248-14)
RoHS compliant* and halogen free

High inrush current withstanding capability
Compatible with reflow and wave solder
Ceramic and glass construction
Excellent environmental integrity
One time positive disconnect
Lea free and Halogen free material

AEC-Q200 Automotive Grade Certified

Application

Secondary protection for space constrained applications:

Cell phone DVD player
Hard disk drive

Portable memory

LCD monitors

PDAs

Digital cameras

Rechargeable battery packs

Battery chargers

Set top boxes

Industrial controllers

Clear Time Electrical Characteristics

Clear Time Electrical Characteristics
Rated Current	1.0In	2.0In	2.5In
1A~8A	4 hour minimum	1~60 sec	5 sec maximum

Electrical Characteristics

Part No.	Rated Voltage DC	Rated Current (A)	Breaking Capacity (A) ¹	Typical Cold. Resistance (mOhms) ²	Typical Voltage Drop (mV)	Typical Pre-Arcing I²t (A²Sec) ³	Alpha Mark
06 110 1	32V	1	50A	257.5	295	0.018	B/H
06 110 1.5		1.5	50A	137.5	220	0.065	H
06 110 2		2	50A	72	160	0.115	K
06 110 2.5		2.5	50A	52	145	0.14	L
06 110 3		3	50A	35	130	0.21	O
06 110 3.5		3.5	50A	23.8	130	0.55	R
06 110 4		4	50A	21	120	0.52	S
06 110 5		5	50A	14	110	1.70	T
06 110 6		6	50A	8	110	2.30	V
06 110 7		7	50A	5.6	90	3.0	X
06 110 8		8	50A	3.5	80	5.2	Z

* DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source)

* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25degrees

* Typical Pre-arching I²t are measured at 10In Current

Dimension (Unit: mm/inch)

Bourns SF-0603SP200-2 Cross 1608 Metric SMD SingleFuse Slow Blow Surface Mount Fuse 2A 32VDC For Overcurrent Protection 2

Clear Time Curve

Reliability Testing

Parameter	Requirement	Test Method
Carrying Capacity	No fusing	Rated current, 4 hours
Fusing Time	Within 120 seconds	200 % of its rated current
Interrupting Ability	No mechanical damages	After the fuse is interrupted, rated voltage applied for 30 seconds again
Bending Test	No mechanical damages .	Distance between holding points: 90 mm, Bending: 3 mm, 1 time, 30 seconds
Resistance to Solder Heat	±20 %	260 °C ±5 °C,10 seconds ±1 second
Solderability	95 % coverage minimum	235 °C ±5 °C, 2 ±0.5 second 245 °C ±5 °C, 2 ±0.5 second (lead free)
Temperature Rise	<75 ° C	100 % of its rated current, measure of surface temperature
Resistance to Dry Heat	±20 %	105 °C ±5 °C,1000 hours
Resistance to Solvent.	No evident damage on protective coating and marking	.23 °C ±5 °C of isopropyl alcohol, 90 seconds
Residual Resistance	10k ohms or more	Measure DC resistance after fusing
Thermal Shock	. DR < 10 %...	-20 °C / +25 °C /+125 °C /+25 °C, 10 cycles

Environmental Characteristics

Operating Temperature	-20 °C to +105 °C
Storage Conditions-Temperature	+5 °C to +35 °C
Storage Conditions- Shelf Life	2 years from manufacturing date
Storage Conditions-Humidity	40 % to 75 %
Moisture Sensitivity Level	1
ESD Classification (HBM)	Class 6

Package information

Model Q’ty/Reel

06 110 X 5000 pcs

Note: Reel packaging per EIA-481-1 standard
