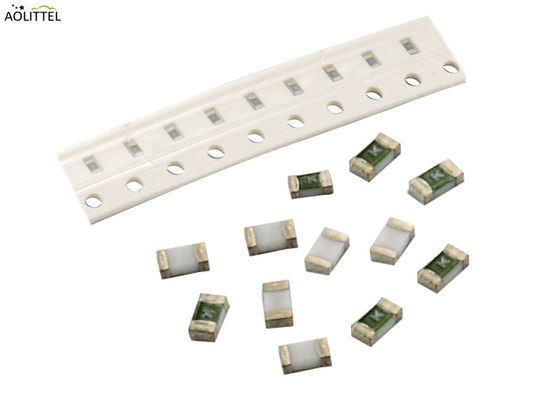

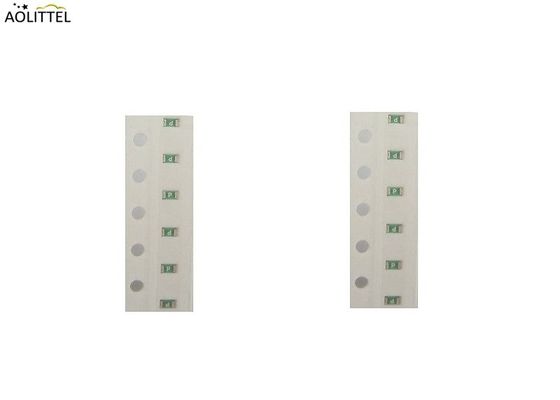

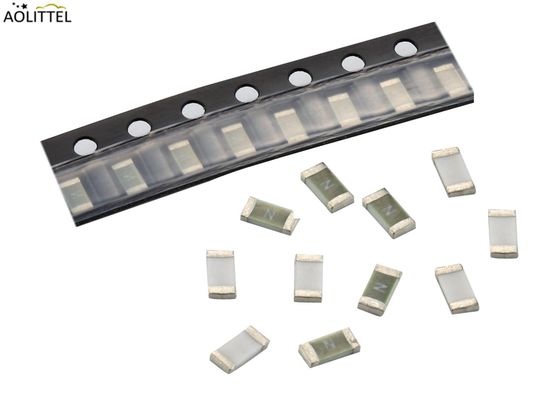

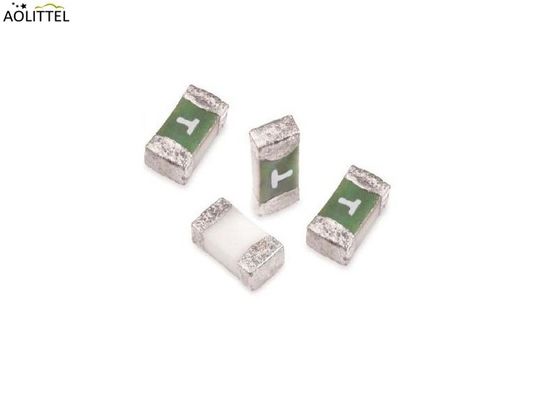

0603 Size Thin Film Very Fast-Acting Surface Mount Fuses With Rating 250mA-8A 63VDC 32VDC

5000 Pieces
MOQ
Negotiable
Price
0603 Size Thin Film Very Fast-Acting Surface Mount Fuses With Rating 250mA-8A 63VDC 32VDC
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Very Fast-Acting Surface Mount Fuses
Size: 0603
Current Range: 0.25-8A
Rated Voltage: 32VDC/63VDC
Breaking Capacity: 50A/80A
Packaging: Tape In Reel
High Light:

surface mount chip fuse

,

surface mount thermal fuse
Basic Infomation
Brand Name: Ao littel
Model Number: 06.000 Series
Payment & Shipping Terms
Packaging Details: Tape,5Kpcs per reel
Delivery Time: 10 Workdays
Payment Terms: T/T
Supply Ability: 500,000,000 Pieces
Product Description



0603 Size Thin Film Very Fast-Acting Surface Mount Fuses With Rating 250mA-8A 63VDC 32VDC





Features



• Compatible with leadfree solders and higher temperature profiles
• High performance materials provide improved performance in elevated ambient temperature applications
• Marked on top surface with code to allow amp rating identification without testing
• Low profile for height sensitive applications
• Flat top surface for pickand-place operations
• Element covering material is resistant to industry standard cleaning operations
• Mounting pad and electrical performance
• Halogen free, Lead-free and RoHS compliant
• High inrush current withstanding capability



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





General



The 06.100 Series Fast-Acting Surface Mount Fuse (SMF) is an ultra small (0603 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.

This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free fuses are available–to order use the “HF” suffix. See Part Numbering section for additional formation.





Applications



Secondary protection for space constrained applications:


• Cell phones
• Battery packs
• Digital cameras
• DVD players
• Hard disk drives.





Dimensions(Unit: mm/inch)



0603 Size Thin Film Very Fast-Acting Surface Mount Fuses With Rating 250mA-8A 63VDC 32VDC 1





Pad layout (Unit: mm/inch)



0603 Size Thin Film Very Fast-Acting Surface Mount Fuses With Rating 250mA-8A 63VDC 32VDC 2





Electrical Specifications by Item



Part No.

Rated

Voltage

DC

Rated Current

(A)

 Breaking Capacity (A) 1 Typical Cold. Resistance (mOhms) 2 Typical Voltage Drop (mV) Typical Pre-Arcing I2t (A2Sec) 3 Alpha Mark
06 100 0.25 63V 32V 0.250 50A 3250 893 0.00042 D
06 100 0.375 0.375 50A 1310 587 0.00093 E
06 100 0.5 0.500 50A 1070 582 0.0020 F
06 100 0.75 0.750 50A 470 427 0.0092 G
06 100 1 1 50A 257.5 295 0.018 B/H
06 100 1.5 1.5 50A 137.5 220 0.065 H
06 100 2 - 2 50A 72 160 0.115 K
06 100 2.5 2.5 50A 52 145 0.14 L
06 100 3 3 50A 35 130 0.21 O
06 100 3.5 3.5 50A 23.8 130 0.55 R
06 100 4 4 50A 21 120 0.52 S
06 100 5 5 50A 14 110 1.70 T
06 100 6 6 50A 8 110 2.30 V
06 100 7 7 50A 5.6 80 2.8 X
06 100 8 8 50A 3.5 75 4.96 Z


Blow Characteristics

Clear Time Electrical Characteristics
Rated Current 1.0In 2.0In
250mA~8A 4 hour minimum 60 sec maximum





Clear Time Curve



0603 Size Thin Film Very Fast-Acting Surface Mount Fuses With Rating 250mA-8A 63VDC 32VDC 3





Product Characteristics



Materials

Body: Advanced High Temperature Substrate

Terminations: 100% Tin over Nickel over Copper

Element Cover Coat: Conformal Coating
Operating Temperature -55C to 90C. Consult temperature re-rating curve chart. For operation above 90°C contact Ao littel
Humidity MIL-STD-202, Method 103, Condition D
Thermal Shock Withstands 5 cycles of – 55C to 125C
Vibration Per MIL-STD-202
Insulation Resistance (After Opening) Greater than 10,000 ohms
Resistance to Soldering Heat MIL-STD-202, Method 210, Condition D





Packaging



Packaging Option Packaging Specification Quantity
8mm Tape and Reel EIA-481 Rev. D (IEC 60286, part 3) 5000





Soldering Parameters



Reflow Condition Pb – Free assembly
Pre Heat   Temperature Min (Ts(min)) 150°C
Pre Heat  Temperature Max (Ts(max)) 200°C
Pre Heat- Time (Min to Max) (ts) 60 – 180 secs
Average ramp up rate (Liquidus Temp (TL) to peak 5°C/second max
TS(max) to TL - Ramp-up Rate 5°C/second max
Reflow - Temperature (TL) (Liquidus) 217°C
Reflow - Temperature (tL) 60 – 150 seconds
Peak Temperature (TP) 250+0/-5 °C
Time within 5°C of actual peak Temperature (tp) 20 – 40 seconds
Ramp-down Rate 5°C/second max
Time 25°C to peak Temperature (TP) 8 minutes Max.
Do not exceed 260°C
Wave Soldering 260°C, 10 seconds max.
