Name: 10.25x3.2mm Brick High Inrush Type Surface Mount Fast Blow Ceramic Tube Fuse 125VAC With Max. Current 30A
Brand: 10.25x3.2mm Brick High Inrush Type Surface Mount Fast Blow Ceramic Tube Fuse 125VAC With Max. Current 30A
SKU: R1032
Rating: 4.7 (198 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Ceramic Tube Fuse

Rated Voltage: 125V

Current Range: 50mA-30A

Size: 10.25*3.2mm

Body: Ceramic Tube

Cap: Brass With Gold Plated

Element: Alloy

Temp Range: -55℃ To +125℃

Blow: Fast Blow

MOQ: 2000PCS

Highlight:

surface mount chip fuse

surface mount thermal fuse

Basic Infomation

Certification: UL,cUL

Model Number: R1032

Payment & Shipping Terms

Packaging Details: 2000 pieces of fuses on 24mm tape and reel on 13 inch (330mm) reel

Delivery Time: 10 Workdays

Payment Terms: T/T, Western Union

Supply Ability: 5,000,000 Pieces Per Month

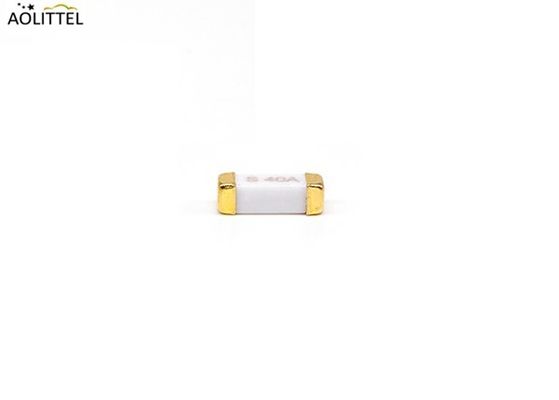

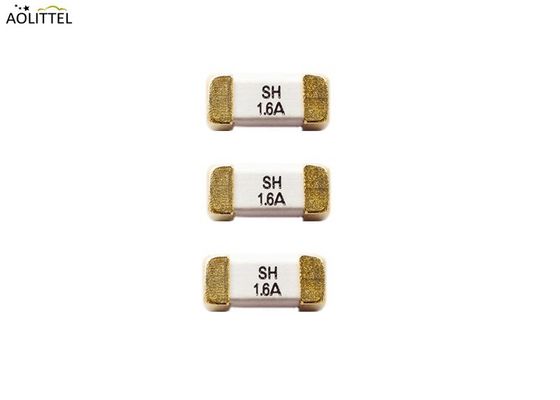

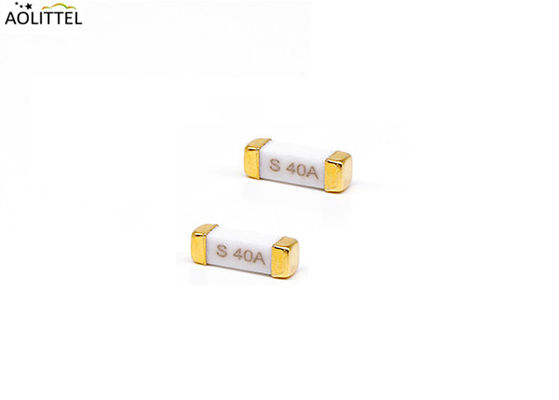

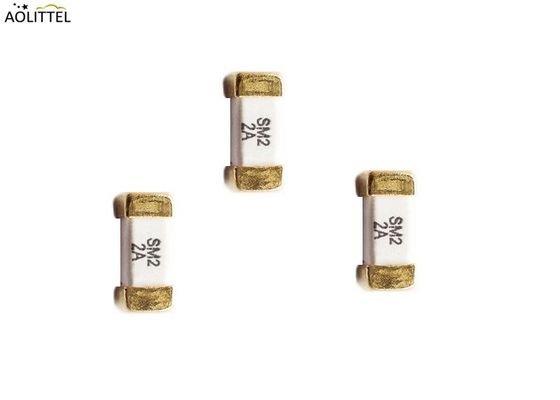

Gallery

10.25x3.2mm Brick High Inrush Type Surface Mount Fast Blow Ceramic Tube Fuse 125VAC With Max. Current 30A

Product Description

10.25x3.2mm Brick High Inrush Type Surface Mount Fast Blow Ceramic Tube Fuse 125VAC With Max. Current 30A

Current features

% of Ampere Rating(In)	Blowing Time
100% * In	4 hours Min
200% * In	120 sec Max

______________________________________________________________________________ Download________

Specification

Part.No.	Ampere Rating	Voltage Rating	Breaking Capacity	Nominal Cold Resistance (Ohms)	I2TMelting Integral(A2.S)
Part.No.	Ampere Rating	Voltage Rating	Breaking Capacity	Nominal Cold Resistance (Ohms)	I2TMelting Integral(A2.S)
R1032.0200	200mA	125VAC	50A@300VAC 50A@250VAC 200A@125VAC	0.92	0.125
R1032.0250	250mA			0.86	0.145
R1032.0300	300mA			0.62	0.162
R1032.0315	315mA			0.55	0.189
R1032.0375	375mA			0.47	0.2
R1032.0400	400mA			0.38	0.238
R1032.0500	500mA			0.32	0.275
R1032.0600	600mA			0.285	0.47
R1032.0630	630mA			0.256	0.566
R1032.0700	700mA			0.208	0.805
R1032.0750	750mA			0.175	1.24
R1032.0800	800mA			0.155	1.88
R1032.1100	1A			0.148	3.5
R1032.1125	1.25A			0.102	4.76
R1032.1150	1.5A			0.085	6.305
R1032.1160	1.6A			0.075	6.505
R1032.1200	2A			0.044	8.95
R1032.1250	2.5A			0.043	16.025
R1032.1300	3A			0.033	21.56
R1032.1315	3.15A			0.029	22.75
R1032.1350	3.5A			0.027	27.05
R1032.1400	4A			0.025	31.808
R1032.1500	5A			0.019	40.25
R1032.1600	6A			0.018	67.245
R1032.1630	6.3A			0.017	73.55
R1032.1700	7A			0.015	76.28
R1032.2100	10A			0.013	77.35
R1032.2120	12A			0.012	78.18
R1032.2150	15A			0.011	79.28
R1032.2200	20A			0.011	80.18
R1032.2250	25A			0.01	83.35
R1032.2300	30A			0.01	90.08

Size

10.25x3.2mm Brick High Inrush Type Surface Mount Fast Blow Ceramic Tube Fuse 125VAC With Max. Current 30A 1

Advantanges

• Fast ( Fast-Acting )	• Small size(10.2mm*3.2mm)
• Wide range of current rating available	• Wide operating temperature range
• Low temperature de-rating	• RoHS compliant
• Tape and Reel for automatic placement	• Conflict free metals

Application

• LED lighting	• Notebook PC	• Battery devices	• LCD/PDP devices
• LCD backlight inverter	• Portable Devices	• Power supply	•Networking devices
• PC server	• Cooling fan system	• Storage system	• Telecom system
• Wireless base station	• White goods	• Game console	• Office equipment
• Digital camera	• Industrial equipment	• Medical equipment	•Automotive devices

Material List

NO.	Part Name	Material
1	End caps	Au Plated Brass Cap
2	Body	Non-Transparent Square Ceramic Tube
3	Fuse element	Cu-Ag Alloy wire

List of Inspection Items

Salt spray test

Digital microscope test

Isolation test

Thermal shock

Soldering heat resistance test

Temperature raising test

Environmental test

Plated-thickness major material analysis

10.25x3.2mm Brick High Inrush Type Surface Mount Fast Blow Ceramic Tube Fuse 125VAC With Max. Current 30A 2
