Name: UL Approved 300V 3.15A Time Delay 2410 Series Surface Mount SMD Fuse SST1315 For LED Lighting
Brand: UL Approved 300V 3.15A Time Delay 2410 Series Surface Mount SMD Fuse SST1315 For LED Lighting
SKU: SST1315
Price: 0.035 USD
Availability: InStock
Rating: 4.8 (174 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Fuse Type: Surface Mount SMD Fuse

Size: 1808/6125/2410

Blow Type: Slow Blow

Current Value: 3.15A (50mA-7A)

Rated Voltage: 300VAC

Approvals: UL,CUL

Resistance: 0.029 Ohms

I2TMelting Integral(: 22.75 A2.S

End Caps: Au Or Sliver Plated Brass Cap

Body: Non-Transparent Square Ceramic Tube

Fuse Element: Cu-Ag Alloy Wire

Operating Temp Range: -55°C To 125°C

High Light:

surface mount chip fuse

surface mount thermal fuse

Basic Infomation

Certification: UL,CUL

Model Number: SST1315

Payment & Shipping Terms

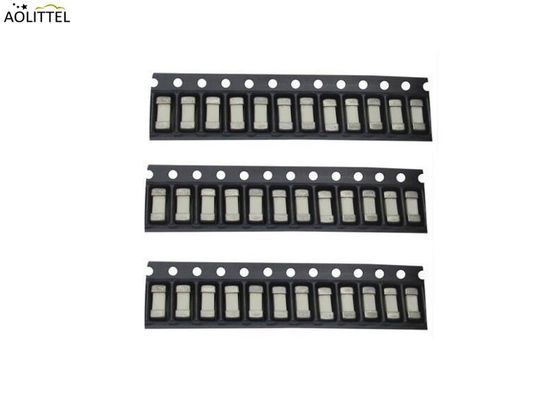

Packaging Details: Tape & reel , 1000pcs per reel.

Delivery Time: 7-10 Workdays

Payment Terms: T/T

Supply Ability: 5,000,000 Pieces Per Week

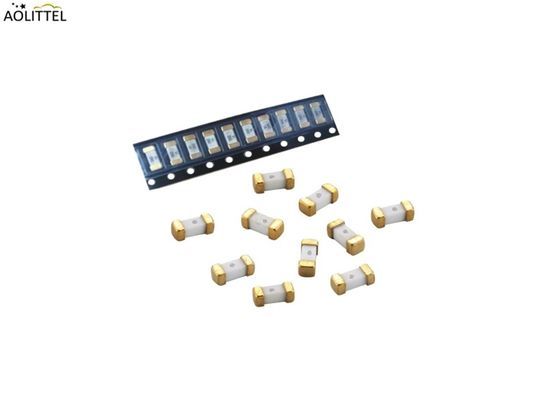

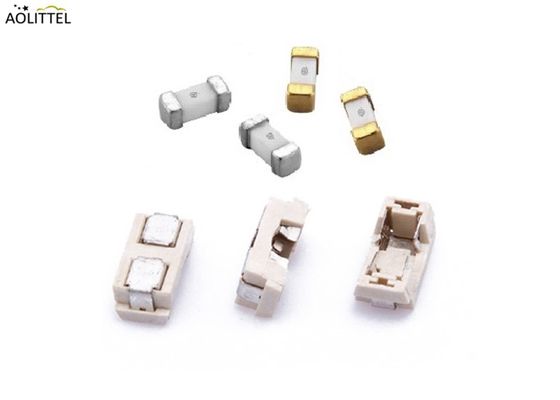

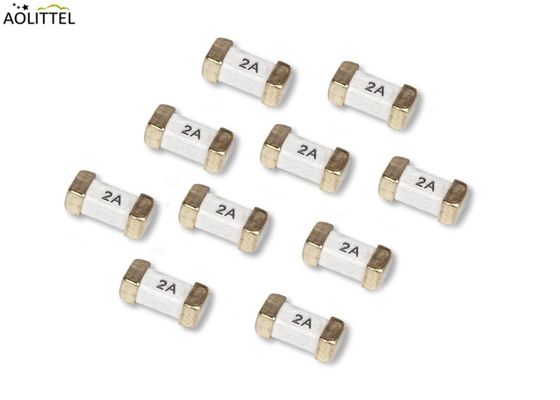

Gallery

UL Approved 300V 3.15A Time Delay 2410 Series Surface Mount SMD Fuse SST1315 For LED Lighting

Product Description

UL Approved 300V 3.15A Time Delay 2410 Series Surface Mount SMD Fuse SST1315 For LED Lighting

Application

Consumer Electronics
Home appliances
Power Supply device
Telecommunication System
Automotive Device
Industrial Equipment
Medical Equipment

Battery Charging Device

______________________________________________________________________________ Download________

Specification

P/N	Ampere Rating	Voltage Rating	Breaking Capacity	Nominal Cold Resistance (Ohms)	I²TMelting Integral(A².S)	Agency Approvals
P/N	Ampere Rating	Voltage Rating	Breaking Capacity	Nominal Cold Resistance (Ohms)	I²TMelting Integral(A².S)	UL	CUL
SST0250	250mA	300VAC	50A@300VAC 50A@250VAC 200A@125VAC	0.860	0.145	●	●
SST0300	300mA			0.620	0.162	●	●
SST0315	315mA			0.550	0.189	●	●
SST0375	375mA			0.470	0.200	●	●
SST0400	400mA			0.380	0.238	●	●
SST0500	500mA			0.320	0.275	●	●
SST0600	600mA			0.285	0.470	●	●
SST0630	630mA			0.256	0.566	●	●
SST0700	700mA			0.208	0.805	●	●
SST0750	750mA			0.175	1.240	●	●
SST0800	800mA			0.155	1.880	●	●
SST1100	1A			0.148	3.500	●	●
SST1125	1.25A			0.102	4.760	●	●
SST1150	1.5A			0.085	6.305	●	●
SST1200	2A			0.044	8.950	●	●
SST1250	2.5A			0.043	16.025	●	●
SST1300	3A			0.033	21.560	●	●
SST1315	3.15A			0.029	22.750	●	●
SST1350	3.5A			0.027	27.050	●	●
SST1400	4A			0.025	31.808	●	●
SST1500	5A			0.019	40.250	●	●
SST1600	6A			0.018	67.245	●	●
SST1630	6.3A			0.017	73.550	●	●
SST1700	7A			0.015	76.280	●	●

Structure (Unit:mm)

UL Approved 300V 3.15A Time Delay 2410 Series Surface Mount SMD Fuse SST1315 For LED Lighting 1

Material

NO.	Part Name	Material
1	End caps	Au Plated Brass Cap
2	Body	Non-Transparent Square Ceramic Tube
3	Fuse element	Cu-Ag Alloy wire

Operating Current Characteristics

% of Ampere Rating(In)	Blowing Time
100% * In	4 hours Min
200% * In	120 sec Max

Appearance and Configuration

Appearance : No significant stains, rust or crack, mark should be easy to recognize.

Shape: Surface Mount Fuse

Packing Information: MPQ:1000pcs, Tape&Reel

Reliability Test

NO.	Item	Content	Reference standards
1	Product Marking	Brand, Ampere Rating	AOLITEL marking standards
2	Operating Temperature	-55°C to 125°C	IEC60068-2-1/2
3	Solderability	T=240°C±5°C , t=3sec±0.5sec, Coverage≥95%	MIL-STD-202, Method 208
4	Resistance to Soldering Heat	10 sec at 260°C	MIL-STD-202, Method 210, Test condition B
5	Insulation Resistance (after Opening)	10,000 ohms minimum	MIL-STD-202, Method 302, Test Condition A
6	Thermal Shock	5 cycles, -65°C / +125°C, 15 minutes at each extreme	MIL-STD-202, Method 107, Test Condition B
7	Mechanical Shock	100G’s peak for 6 milliseconds, 3cycles	MIL-STD-202, Method 213, Test I
8	Vibration	0.03”amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs	MIL-STD-202, Method 201
9	Moisture Resistance	10 cycles	MIL-STD-202, Method 106

Average Time Current Curves

UL Approved 300V 3.15A Time Delay 2410 Series Surface Mount SMD Fuse SST1315 For LED Lighting 2

Environmental Characteristic

When choosing the fuse's specification, if the operating environmental temperature beyond the scope

from 20~30℃, engineer should consider the environmental temperature's affection to fuses.

Please refer: Temperature Rerating Curve:

UL Approved 300V 3.15A Time Delay 2410 Series Surface Mount SMD Fuse SST1315 For LED Lighting 3
