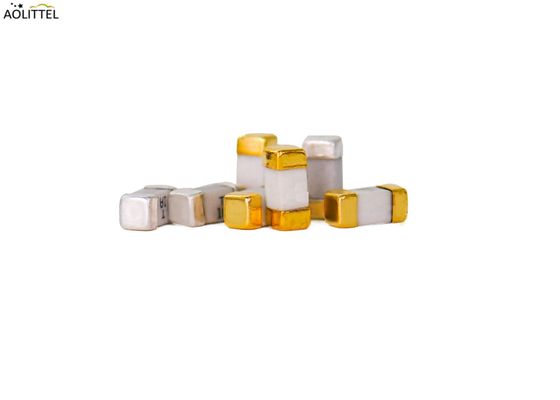

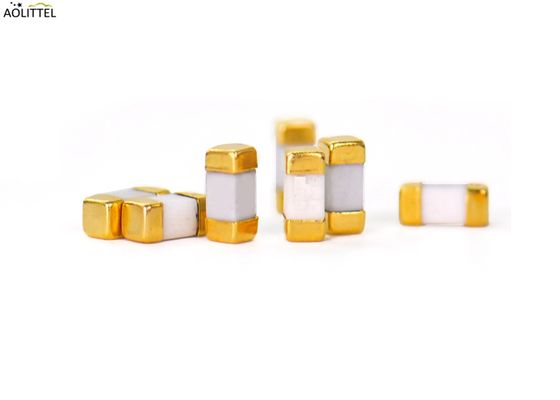

6.1x2.5x2.5mm Surface Mount Resettable Fuse , Smd Fuse 1a Ceramic Tube Body

1000 Pieces
MOQ
USD 0.035 to 0.06 Per Piece
Price
6.1x2.5x2.5mm Surface Mount Resettable Fuse , Smd Fuse 1a Ceramic Tube Body
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Ceramic Body Surface Mount Fuse
Kind Of Fuse: Ceramic
Mounting: SMD
Fuse Characteristics: Time-Lag
Breaking Capacity: 50A
Current Rating: 500mA
Rated Voltage: 125V DC, 125V AC
Fuse Size: 6.1*2.5*2.5mm
Case: 2410/6125/1808
Soldering Temperature: 260°C / 3 S
Contact Plating: Gold Plated Or Sliver Plated
Gross Weight: 0.15 G
High Light:

surface mount resettable fuse

,

surface mount thermal fuse
Basic Infomation
Place of Origin: CHINA
Brand Name: AO LITEL
Certification: UL,CUL
Model Number: STE0500
Payment & Shipping Terms
Packaging Details: 1,000 pcs in 7 inches dia. reel, 12mm wide tape, EIA Standard 481
Delivery Time: 5,000,000 Pieces Per Week
Payment Terms: T/T, Western Union
Product Description



0452.500MRL NANO 6.1x2.5x2.5mm Ceramic Tube Body Time-Lag Surface Mount Fuse STE0500 500mA 125VAC 125VDC





Size



unit:mm

6.1x2.5x2.5mm Surface Mount Resettable Fuse , Smd Fuse 1a Ceramic Tube Body 0





Specification



Model

No.

Ampere

Rating

Voltage

Rating

Breaking

Capacity

Nominal Cold

Resistance

(Ohms)

I2TMelting

Integral(A2.S)

 Agency Approvals
UL CUL
STE0250 250mA 125VAC

50A@300VAC

50A@250VAC

200A@125VAC

 0.860 0.145 ● ●
STE0300 300mA 0.620 0.162 ● ●
STE0315 315mA 0.550 0.189 ● ●
STE0375 375mA 0.470 0.200 ● ●
STE0400 400mA 0.380 0.238 ● ●
STE0500 500mA 0.320 0.275 ● ●
STE0600 600mA 0.285 0.470 ● ●
STE0630 630mA 0.256 0.566 ● ●
STE0700 700mA 0.208 0.805 ● ●
STE0750 750mA 0.175 1.240 ● ●
STE0800 800mA 0.155 1.880 ● ●
STE1100 1A 0.148 3.500 ● ●
STE1125 1.25A 0.102 4.760 ● ●
STE1150 1.5A 0.085 6.305 ● ●
STE1200 2A 0.044 8.950 ● ●
STE1250 2.5A 0.043 16.025 ● ●
STE1300 3A 0.033 21.560 ● ●
STE1315 3.15A 0.029 22.750 ● ●
STE1350 3.5A 0.027 27.050 ● ●
STE1400 4A 0.025 31.808 ● ●
STE1500 5A 0.019 40.250 ● ●
STE1600 6A 0.018 67.245 ● ●
STE1630 6.3A 0.017 73.550 ● ●
STE1700 7A 0.016 76.280 ● ●
STE1800 8A     0.015 80.750 ● ●
STE2100 10A     0.014 110.380 ● ●
STE2120 12A     0.013 158.080 ● ●
STE2150 15A     0.012 160.680 ● ●
  • *These catalog no. cold resistance and I2t value are pending due to fuse elements shall be customized;
  • DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃;
  • Typical Pre-arching I2t are calculated at 10*In Current or 8ms;
  • Min Interrupting Rating: 1.35*In.





Characteristics



Time-Lag /Slow Blow

Low teperature de-rating

Small size

Wide current range available 250mA-15A

Wide operating temperature range

RoHS Complaint

Halogen Free



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Application



Notebook PC
Telecom system
LCD/PDP TV
Wireless basestation
LCD Monitor
White goods
Game console
Office automation equipments
Power supply





Electrical Characteristics for Series



% of Ampere Rating(In)

Blowing Time
100% * In 4 hours Min
200% * In 120 sec Max
1000% * In 10ms Min





Description



Ceramic Tube Body Time-Lag Surface Mount Fuse has enhanced inrush withstand characteristics over the NANO2 Fast-Acting fuse. The unique time delay feature of this fuse design helps solve the problem of nuisance “opening” by accommodating inrush currents that normally cause a fast-acting fuse to open.



Surface Mount Fuse
No. Size Blow Voltage Seires
1 0603 F 32V 06.000
2 0603 T 32V 06.100
3 1206 F 32V 12.000
4 1206 T 32V 12.100
5 6125 T 250V SET
6 6125 F 250V SEF
7 2410 F 125V SFE
8 2410 T 125V STE
9 1808 F 300V SSF
10 1808 T 300V SST
11 1032 T 125V R1032
12 1032 F 125V R1032

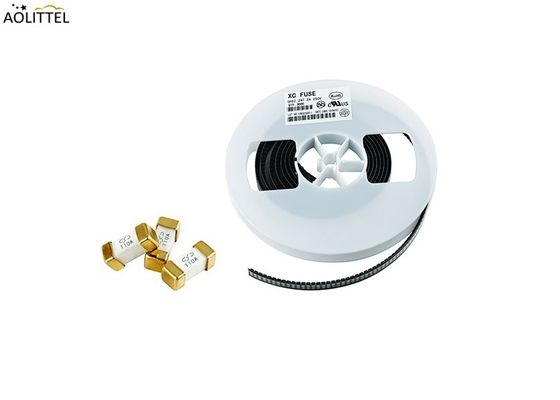

Package



1,000 pcs in 7 inches dia. reel, 12mm wide tape, EIA Standard 481



6.1x2.5x2.5mm Surface Mount Resettable Fuse , Smd Fuse 1a Ceramic Tube Body 2





Reliability Test



NO.

Item

Content

Reference standards
1

Product Marking

 Brand, Ampere Rating AOLITEL marking standards
2

Operating Temperature

 -55°C to 125°C IEC60068-2-1/2
3

Solderability

 T=240°C±5°C , t=3sec±0.5sec, Coverage≥95% MIL-STD-202, Method 208
4

Resistance to Soldering Heat

 10 sec at 260°C MIL-STD-202, Method 210, Test condition B
5

Insulation Resistance (after Opening)

 10,000 ohms minimum MIL-STD-202, Method 302, Test Condition A
6

Thermal Shock

 5 cycles, -65°C / +125°C, 15 minutes at each extreme MIL-STD-202, Method 107, Test Condition B
7

Mechanical Shock

 100G’s peak for 6 milliseconds, 3cycles MIL-STD-202, Method 213, Test I
8

Vibration

 0.03”amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202, Method 201
9

Moisture Resistance

 10 cycles MIL-STD-202, Method 106
10

Salt Spray

 5% salt solution, 48hrs MIL-STD-202, Method 101, Test Condition B
