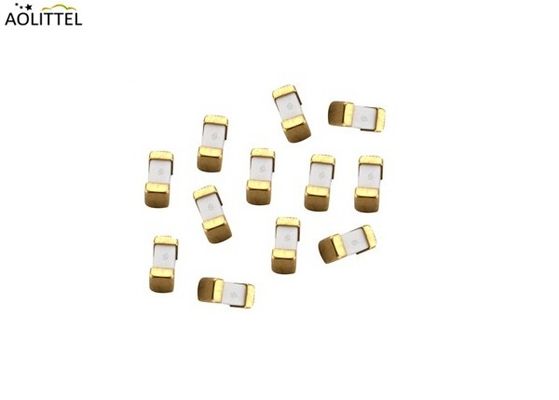

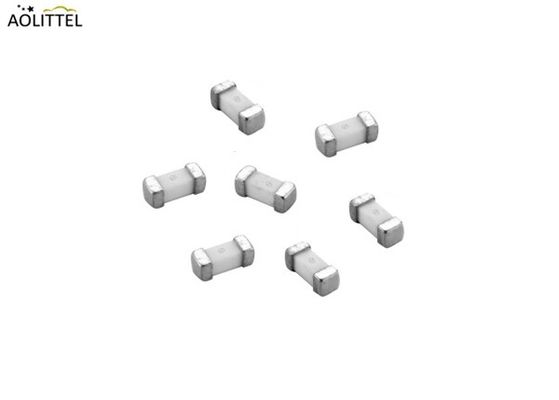

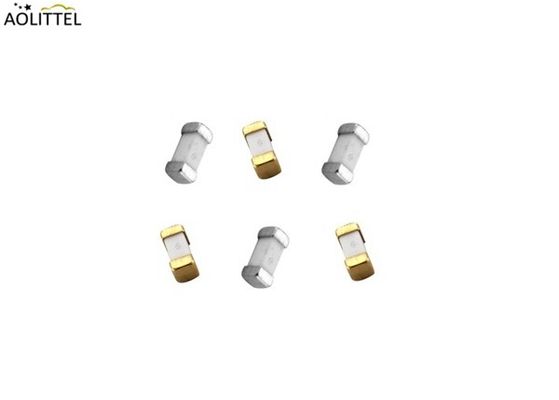

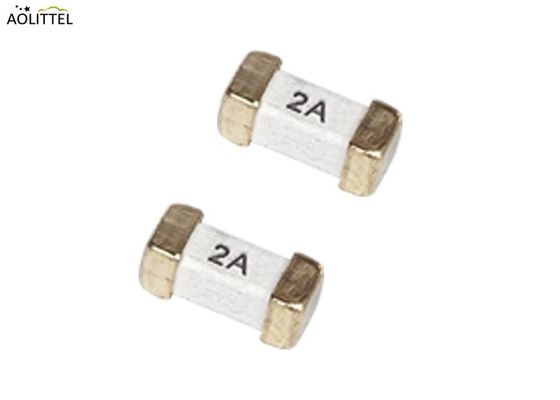

Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410

1000 Pieces
MOQ
0.035 to 0.06 USD Per Pieces
Price
Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410
Features Gallery Product Description Request A Quote
Features
Specifications
Product Category: Surface Mount Fuse
Manufacturer: Aolittel
RoHS: Yes
Fuse Type: Fast Blow
Current Rating: 1A (0.2-7A)
Voltage Rating AC: 250 VAC
Voltage Rating DC: 125 VDC
Fuse Size / Group: 2410 (6125 Metric)
Minimum Operating Temperature: -55C
Maximum Operating Temperature: +125C
Packaging: Tape In Reel
Nominal Cold Resistance: 0.044 Ohms
Factory Pack Quantity: 1000
Interrupt Rating: 100 A At 250 VAC, 50 A At 125 VDC, 300 A At 32 VDC
Highlight:

surface mount chip fuse

,

surface mount thermal fuse
Basic Infomation
Place of Origin: CHINA
Brand Name: AO LITTEL
Certification: UL
Model Number: SEF1100
Payment & Shipping Terms
Packaging Details: Tape in reel,1,000 pcs in 7 inches dia. reel, 12mm wide tape, EIA Standard 481
Delivery Time: 7-10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000 Pieces Per Week
Product Description



Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410





Application



LCD / LED TVs
White goods
PC servers

LCD monitors
DC/DC converters
DC/AC inverters
Notebooks / ultrabooks
Telecom systems
Chargers



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Features



Single blow fuse for overcurrent protection
6125 (EIA 2410) footprint
Fast acting precision
UL 248-14 listed
RoHS compliant* and halogen free
Wire core SMD design
Surface mount packaging for automated assembly





Dimension



Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410 1





Part Numbering



Catalog

No.

Ampere

Rating

Voltage

Rating

Breaking

Capacity

Nominal Cold

Resistance

(Ohms)

I2TMelting

Integral(A2.S)

 Agency Approvals
UL CUL
SEF0200 200mA 250VAC

50A@300VAC

50A@250VAC

200A@125VAC

 0.960 0.148 ● ●
SEF0250 250mA 0.860 0.145 ● ●
SEF0300 300mA 0.620 0.162 ● ●
SEF0315 315mA 0.550 0.189 ● ●
SEF0375 375mA 0.470 0.200 ● ●
SEF0400 400mA 0.380 0.238 ● ●
SEF0500 500mA 0.320 0.275 ● ●
SEF0600 600mA 0.285 0.470 ● ●
SEF0630 630mA 0.256 0.566 ● ●
SEF0700 700mA 0.208 0.805 ● ●
SEF0750 750mA 0.175 1.240 ● ●
SEF0800 800mA 0.155 1.880 ● ●
SEF1100 1A 0.148 3.500 ● ●
SEF1125 1.25A 0.102 4.760 ● ●
SEF1150 1.5A 0.085 6.305 ● ●
SEF1200 2A 0.044 8.950 ● ●
SEF1250 2.5A 0.043 16.025 ● ●
SEF1300 3A 0.033 21.560 ● ●
SEF1315 3.15A 0.029 22.750 ● ●
SEF1350 3.5A 0.027 27.050 ● ●
SEF1400 4A 0.025 31.808 ● ●
SEF1500 5A 0.019 40.250 ● ●
SEF1600 6A 0.018 67.245 ● ●
SEF1630 6.3A 0.017 73.550 ● ●
SEF1700 7A 0.015 76.280 ● ●





Environmental Characteristics



Operating Temperature -55 °C to +125 °C
Storage Conditions Temperature +5 °C to +35 °C
Humidity 40 % to 75 %
Shelf Life 2 years from manufacturing date
Moisture Sensitivity Level 1
ESD Classification (HBM) Class 6





Times Performances



% of Ampere Rating(In)

Blowing Time
100% * In 4 hours Min
200% * In 120 sec Max
1000% * In 10ms Min





Average Time Current Curves



Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410 2





Reliability Testing



No. Test Requirement Test Condition Test Reference
1 Reflow and bend

DCR change ≤ 20 % (≤ 10 % for ≤1 A)

No mechanical damage

 3 reflows at 245 °C followed by a
2 mm bend		 Refer to STP
document
2 Solderability Minimum 90 % coverage One dip at 245 °C for 5 seconds MIL-STD-202
Method 208
3 Soldering heat
resistance		 DCR change ≤ 20 % (≤ 10 % for ≤1 A)
New solder coverage ≤ 75 % 		 One dip at 260 °C for 10 seconds MIL-STD-202
Method 210
4 Moisture resistance DCR change ≤ ±15 % No excessive corrosion  10 cycles MIL-STD-202
Method 106
5 Salt spray DCR change ≤ ±10 %
No excessive corrosion		 48 hour exposure, 5 % salt solution MIL-STD-202
Method 101
6 Mechanical vibration DCR change ≤ ±10 %
No mechanical damage		 0.4 inch D.A. or 30 G between
5-3000 Hz		 MIL-STD-202
Method 204
7 Mechanical shock DCR change ≤ ±10 %
No mechanical damage		 1500 G, 0.5 ms, half-sine shocks MIL-STD-202
Method 213
8 Thermal Shock DCR change ≤ ±10 %
No mechanical damage		 100 cycles between -65 °C and +125 °C MIL-STD-202
Method 107
9 Life No electrical “opens” during testing
Voltage drop change shall be less
than ±20 % of initial value		 80 % rated current (75 % for < 1 A fuses)
for 2000 hours at ambient temperature
+25 °C		 Refer to STP
document


* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less;
(b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications.





Current Rating Thermal Derating Curve



Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410 3





Solder Reflow Recommendations



Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410 4

Reflow Condition Pb-Free assembly
Average ramp-up rate (Ts(max)to Tp) 5°C /second max.
Preheat Temperature Min (Ts(min)) 150°C
Temperature Max (Ts(max)) 200°C
Time (Min to Max) (ts) 60-120 seconds
Reflow Temperature (TL) 220°C
Time Max (tL) 60 seconds
Peak Temperature(Tp) 260°C max
Ramp-down Rate 5°C/second max
Time 25°C to peak Temperature (Tp) 8 minutes max





Recommended Temperature Profile for Wave Soldering



Bourns SinglFuse SF-2410FP100W-2 Cross UL 248-14 Precision Wire Core Surface Mount Fuses SEF 1.0A Fast Acting 2410 5



Wave soldering is suitable for 2410 size models.





Packaging



1,000 pcs in 7 inches dia. reel, 12mm wide tape, EIA Standard 481
