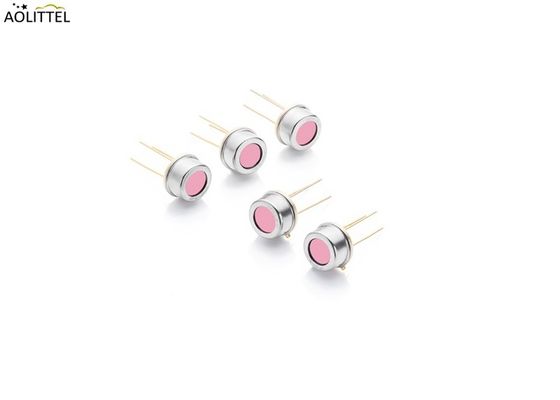

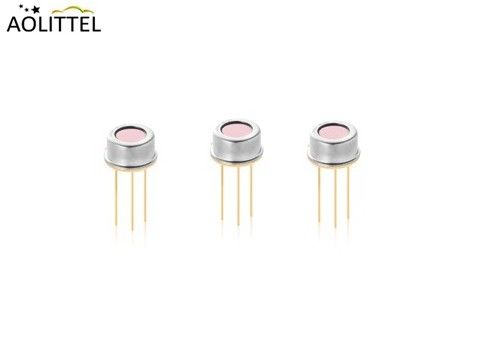

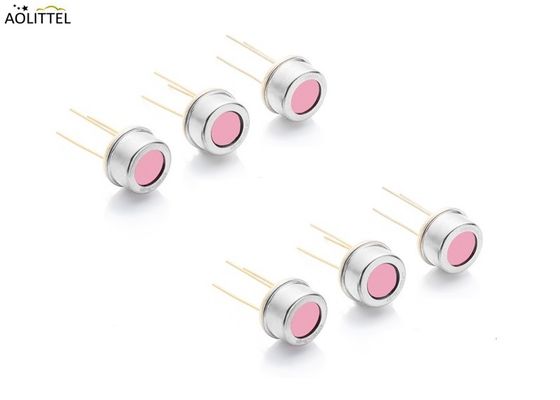

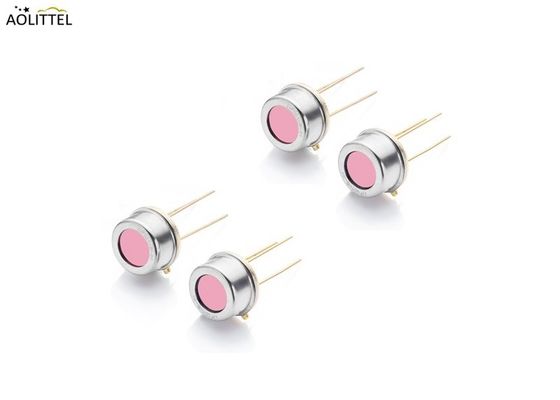

Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter

100 Pieces
MOQ
Negotiable
Price
Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Flame Dection Infared Sensor
Diameter: 5.5mm
Sensing Element Diameter: 2.5mm
Electric Time Constant: 6 Sec
Thermal Time Constant: 200 Msec
Offset Voltage: 0.4-0.7V
Voltage Responsivity: >500V/W
Detectivity: >4x108 Cm Hz /W
Noise: <170 NVrms/Hz
Field Of View: >110°
Operating Temperature: -40~80℃
Operating Voltage: 2~15V
Sensing Distance: >25m(0.1㎡ Dection Side)
Encapsulation: TO39
Highlight:

flame detector sensor

,

surface mount resettable fuse

Basic Infomation
Brand Name: Ao littel
Model Number: LVF001
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 10-12 Workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50,000 Pieces Per Month
Product Description



Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter





Application



Flame detector has been widely-used in all kinds of oil storage facilities, and large warehouses etc. It has become the standard equipments for high –risk fire areas, such as petroleum, chemical industry, paper making, metallurgy, nuclear power plants. It has also been more and more popular among high-level residence, commercial districts, and general industrial districts.







Flame Detection

Inductrial Control

Motion Sensing

Gas Analysis

Pyrometry

Instrumentation

Furnace Flame Control





______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Technical Parameters



Technique Data label Typical Value Unit
Detect window size   5.5(Diameter) mm
Element size As 2.5(Diameter) mm
Offset Voltage Vs 0.4—0.8 V
Operating Voltage Vd 2-15 V
View Angle   85 °
Output signal @10Hz Vs 35 uV
Noise@10Hz Vn <180 nVrms
Responsivity@10Hz Rv >500 V/W
D* @10Hz D >4×108 cm Hz1/2/W
Operating Temp T -25—+60
Fliter Size   Diameter 5.5 mm
Fliter Vavelength 4.3um,Band width600nm





Typical Filters parameters



Typical Filters parameters, and other parameters can be customized.



CWL 3800±40nm 4400±45nm
HPB 180±20nm 400±20nm
Detector type LVF001-H-01 LVF001-I-01




Test Circuit



Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter 1





Inside Diagram



Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter 2





Dimension



Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter 3





Transmission Spectrum of the window material



Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter 4





Filed of view



Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter 5





Features



Flame detector is made up of ultra-thin LiTaO3 single crystal sensitive elements, low-noise JEFT, and high transmittance filters.It has high response rate, strong anti-interference, and international advanced featueres.





Description



Spot-type multiband infrared flame detection technology is one of the best solutions to fire warning at present. It pre-warns fire disasters by detecting the special infrared ray. It has faster response than that of traditional smog or heat type fire detection technology, especially, the warning time can be 80% earlier in the open air. It provides more protection for people life and property safety.





How to Select a Flame Detector



Process and plant engineers in the oil and gas industry and a wide range of other hazardous process and manufacturing industries require continuous flame monitoring equipment to prevent catastrophic fires. In order to select such detection equipment, users should endeavor to understand the principles of flame detection and review the types of detectors available today. Armed with this knowledge they will be better able to match the appropriate flame detector to process and site performance requirements and to the type of hazard whose consequences the instrument is designed to mitigate.



Strong Anti-interference Flame Dection Infared Sensor LVF001 With Sensor Distance More Than 25 Meter 6
