SQP SQM SQZ SQH MPR SQS Coaxial High Alumina Ceramic Cement Fixed Wirewound Resistor CR-L 20W 500RJ 63x13x13mm
Overview
Cement resistors are power resistors that are heat and flame resistant.
Cement resistors are made to handle a large amount of power flowing through it with it being undamaged by heat or flames. If you are designing a circuit where a lot of current is being passed through a resistor and with it needing to be resistant to high heat and flame, cement resistors is a good design choice.
Typical power ratings range from 1W to 20W or more.
Tolerances from the stated resistance value are around 5 percent.
Main Specification
Packing: Bulk packing
Product type: SQP type , SQM type, SQZ type, SQH type, MPR type
Tolerance: ±5%, ±10%,
Resistance Value Range: 0.1 OHM-150K OHM
Testing Standard: JISC 5202
Non-inductive type also available.
Wirewound rods, value cut rods or fibre glass rods to be used.
Part Numbering
CR-(?) 5W 10K J
Type : CR-L,CR-M,CR-YA,CR-YB,CR-YC,CR-YD,CR-YD1,CR-YE,CR-YG,CR-V
Rated Power :2W,3W,5W,7W,10W,15W,20W,30W,40W
Nominal resistance value :E-12 Series / E-24 Series
Resistance tolerance : K ±10% , J ±5% , G ±2%
Power Rating
Rated power is maximum power which can be continuously loaded at specified ambient temperature
70℃,as Table-1;however when the ambient temperature exceeds 70℃,rated power should be determined
from the derating curve of Fig.1.
Table-1
|
Rated power
|
Maximum working
voltage
|
Maximum overload
voltage
|
Dielectric withstanding
voltage
|
Max Intermittence
Overload Voltage
|
| 1W |
350V |
700V |
1000V |
1500V |
| 2W |
350V |
700V |
1000V |
1500V |
| 3W |
500V |
1000V |
1000V |
1500V |
| 5W |
750V |
1500V |
1000V |
1500V |
| 7W |
1000V |
1500V |
1000V |
1500V |
| 10W |
1000V |
1500V |
1000V |
1500V |
| 15W |
1000V |
15000V |
1000V |
1500V |
| 20W |
1000V |
1500V |
1000V |
1500V |
| 30W |
1000V |
1500V |
1000V |
1500V |
| 40W |
1000V |
1500V |
1000V |
1500V |
Construction
|
NO
|
Item
|
Material
|
| 1 |
Ceramic core
|
High alumina ceramic is used.
|
| 2 |
Resistor element
|
The resistor element shall consist of metal oxide film or Resistance wire
(Exemple:CN49W Φ1.0mm) .
|
| 3 |
Terminal
|
Tinned iron cap.
|
| 4 |
Connection
|
The lead wire,which is plated with solder,shall be mounted to the caps by welding process.
|
| 5 |
Lead wire
|
Soldered or tinned annealed wire.
|
| 6 |
Silicon cement
|
Silicon resin is used. Accord with UL-94V-0 Nonflammable specification
|
| 7 |
Ceramic case
|
High thermal conductivity
|
Dimension (unit:mm)

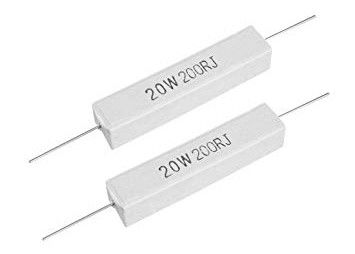

1) CR-L type Ceramic Cement Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L |
W |
H |
Φd±0.05 |
Wire Wound
|
Metal Oxide Film
|
| 1W |
14±1.0 |
6.5±1.0 |
6.5±1.0 |
0.50 |
0.1Ω~22Ω |
25Ω~56KΩ |
| 2W |
18±1.0 |
7.0±1.0 |
7.0±1.0 |
0.50 |
0.1Ω~22Ω |
25Ω~56KΩ |
| 3W |
22±1.0 |
8.0±1.0 |
8.0±1.0 |
0.68 |
0.1Ω~47Ω |
50Ω~100KΩ |
| 5W |
22±1.0 |
9.5±1.0 |
9.5±1.0 |
0.68 |
0.1Ω~47Ω |
50Ω~100KΩ |
| 7W |
35±1.5 |
9.5±1.5 |
9.5±1.5 |
0.68 |
0.5Ω~330Ω |
450Ω~100KΩ |
| 10W |
48±1.5 |
9.5±1.5 |
9.5±1.5 |
0.68 |
0.5Ω~450Ω |
470Ω~100KΩ |
| 15W |
48±1.5 |
13±1.5 |
13±1.5 |
0.68 |
1Ω~500Ω |
510Ω~100KΩ |
| 20W |
63±1.5 |
13±1.5 |
13±1.5 |
0.68 |
1Ω~600Ω |
620Ω~100KΩ |
| 30W |
75±2.0 |
19±2.0 |
17±2.0 |
0.68 |
1Ω~600Ω |
620Ω~100KΩ |
| 40W |
89±2.0 |
19±2.0 |
19±2.0 |
0.68 |
1Ω~600Ω |
620Ω~100KΩ |

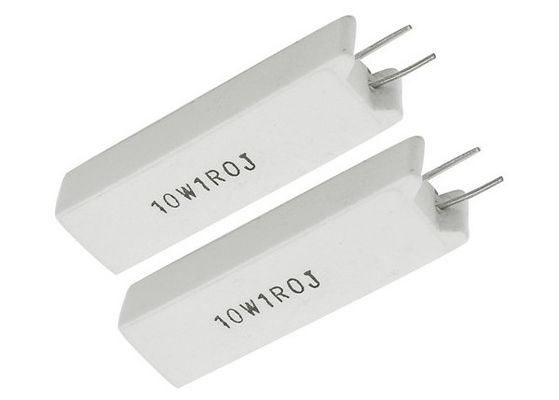

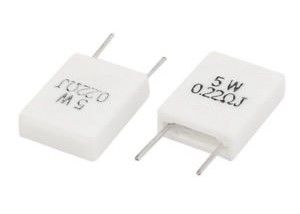

2)CR-M type Ceramic Cement Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| W±1.0 |
S±1.0 |
H±1.5 |
Φd±0.05 |
P±1.0 |
Wire Wound
|
Metal Oxide Film
|
| 2W |
11.5 |
7.5 |
20.5 |
0.50 |
4.5 |
0.1Ω~47Ω |
50Ω~100KΩ |
| 3W |
12 |
8.5 |
25 |
0.68 |
4.5 |
0.1Ω~47Ω |
50Ω~100KΩ |
| 5W |
13 |
9.5 |
25 |
0.68 |
4.5 |
0.1Ω~47Ω |
50Ω~100KΩ |
| 7W |
13 |
9.5 |
38 |
0.68 |
4.5 |
0.5Ω~330Ω |
450Ω~100KΩ |
| 10W |
13 |
9.5 |
52 |
0.68 |
4.5 |
0.5Ω~450Ω |
470Ω~100KΩ |
| 10W |
16 |
11.5 |
36 |
0.68 |
4.5 |
0.5Ω~450Ω |
470Ω~100KΩ |
3) CR-YB type Ceramic Type Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L |
P±1.5 |
W1±1.2 |
W2±0.2 |
W3±0.2 |
H1±1.2 |
H2±0.2 |
H3±1.5 |
| 15 |
48±1.5 |
32.5 |
12.5 |
10 |
2.7 |
12.5 |
15 |
36 |
1.0-820 |
| 20 |
63±2 |
44 |
12.5 |
10 |
2.7 |
12.5 |
15 |
36 |
1.0-1K |
4) CR-YD type Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L |
P±1.5 |
W±1.0 |
W1±0.2 |
W2±0.2 |
H±0.2 |
H1±0.2 |
H2±1.5 |
| 3 |
24±1.0 |
12 |
9.5 |
7.5 |
1.6 |
9.5 |
25 |
39 |
0.5-150 |
| 5 |
27±1.0 |
15 |
9.5 |
7.5 |
1.6 |
9.5 |
25 |
39 |
0.5-220 |
| 7 |
35±1.5 |
22.5 |
9.5 |
7.5 |
1.6 |
9.5 |
25 |
39 |
1-470 |
| 10 |
48±1.5 |
34 |
9.5 |
7.5 |
1.6 |
9.5 |
25 |
39 |
1-680 |
| 15 |
48±1.5 |
32.5 |
12.5 |
10 |
3 |
12.5 |
30 |
47.5 |
1-820 |
| 20 |
63±2.0 |
44 |
12.5 |
10 |
3 |
12.5 |
30 |
47.5 |
1-1K |
5) CR-YA type Fixed Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L |
P±1.5 |
W1±1.0 |
W2±0.2 |
W3±0.2 |
H1±0.2 |
H2±0.2 |
H3±0.2 |
| 3 |
24±1.0 |
12 |
9.5 |
5.3 |
0.9 |
9.5 |
10 |
25.5 |
0.5-150 |
| 5 |
27±1.0 |
15 |
9.5 |
5.3 |
0.9 |
9.5 |
10 |
25.5 |
0.5-220 |
| 7 |
35±1.5 |
22.5 |
9.5 |
5.3 |
0.9 |
9.5 |
10 |
25.5 |
1-470 |
| 10 |
48±1.5 |
34 |
9.5 |
5.3 |
0.9 |
9.5 |
10 |
25.5 |
1-680 |
6) CR-YC type Ceramic Type Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L |
P±1.5 |
W1±1.0 |
W2±0.2 |
W3±0.2 |
H1±1 |
H2±0.5 |
H3±1.5 |
| 3 |
24±1.0 |
12 |
9.5 |
7.3 |
1.6 |
9.5 |
10 |
25 |
0.5-150 |
| 5 |
27±1.0 |
15 |
9.5 |
7.3 |
1.6 |
9.5 |
10 |
25 |
0.5-220 |
| 7 |
35±1.5 |
22.5 |
9.5 |
7.3 |
1.6 |
9.5 |
10 |
25 |
1-470 |
| 10 |
48±1.5 |
34 |
9.5 |
7.3 |
1.6 |
9.5 |
10 |
25 |
1-680 |
7) CR-YE type Cement Type Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L |
P±1.5 |
W1±1.0 |
W2±0.2 |
W3±0.2 |
H1±0.2 |
H2±0.2 |
H3±1.5 |
H4±1.5 |
| 3 |
24±1.0 |
12 |
9.5 |
7.4 |
3 |
9.5 |
7.5 |
4.5 |
30.4 |
0.5-150 |
| 5 |
27±1.0 |
15 |
9.5 |
7.4 |
3 |
9.5 |
7.5 |
4.5 |
30.4 |
0.5-220 |
| 7 |
35±1.5 |
22.5 |
9.5 |
7.4 |
3 |
9.5 |
7.5 |
4.5 |
30.4 |
1-470 |
| 10 |
48±1.5 |
34 |
9.5 |
7.4 |
3 |
9.5 |
7.5 |
4.5 |
30.4 |
1-680 |
8) CR-YD1 type Cement Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L |
P±1.5 |
W±1 |
W2 |
W3 |
W1 |
H1 |
H2 |
H3 |
| 15 |
48±1.5 |
22 |
12.5 |
10 |
1.5 |
5 |
12.5 |
30 |
47.5 |
10-820 |
| 20 |
63±2.0 |
44 |
12.5 |
10 |
1.5 |
5 |
12.5 |
30 |
47.5 |
1.0-1K |

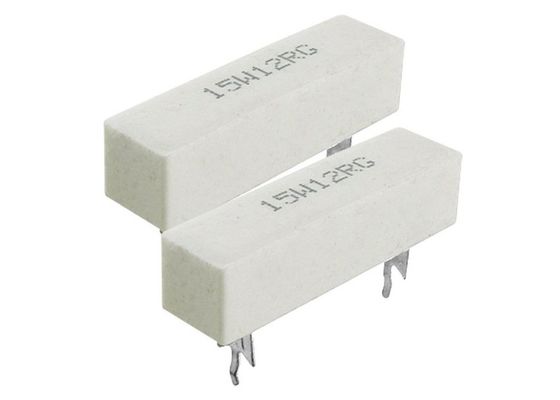

9) CR-V type Fixed Wirewound Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L1 |
L2±0.2 |
L3±0.2 |
H1±0.2 |
H2±0.2 |
H3±1.0 |
W1±1.0 |
W2±0.2 |
W3±0.5 |
| 5 |
31±1.0 |
5 |
4 |
1.5 |
11 |
9.5 |
9.5 |
1.5 |
11.5 |
0.5-220 |
| 7 |
49±1.5 |
10 |
4 |
1.5 |
11 |
9.5 |
9.5 |
1.5 |
11.5 |
1-470 |
| 10 |
62.5±2 |
10 |
4 |
1.5 |
11 |
9.5 |
9.5 |
1.5 |
11.5 |
1-680 |
| 15 |
63.5±2 |
10 |
4.5 |
2.5 |
14.5 |
13 |
13 |
2.5 |
15.5 |
1-820 |
| 20 |
75±2 |
10 |
4.5 |
2.5 |
17.5 |
13 |
13 |
2.5 |
15.5 |
1-1K |

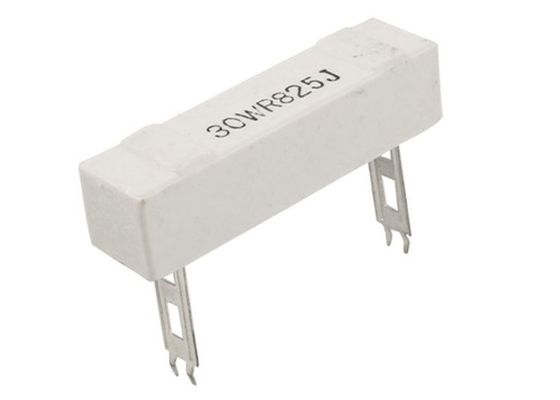

10) CR-H type Ceramic Resistor
|
Watt
|
Dimensions(mm) |
Resistance Range(Ω)
|
| L1 |
L2±1.0 |
W3±0.2 |
P2 |
P3 |
t2 |
h2 |
W1 |
W2 |
H1 |
H2 |
| 10 |
48±1.5 |
23 |
12 |
6 |
8 |
0.6 |
4 |
9.5±1.0 |
5 |
9.5±1.0 |
6±1.5 |
1-680 |
| 15 |
48±1.5 |
23 |
12 |
7 |
8 |
0.8 |
4 |
12.5±1.2 |
6 |
12.5±1.2 |
7.5±2.0 |
10-820 |
| 20 |
63±2.0 |
23 |
12 |
7 |
10 |
0.8 |
4 |
12.5±1.2 |
6 |
12.5±1.2 |
7.5±2.0 |
1-1K |
| 30 |
75±2.5 |
56 |
18 |
9 |
10 |
0.8 |
4.2 |
19±1.5 |
7.5 |
19±1.5 |
10±2.0 |
1-1K |
| 40 |
88±2.5 |
68 |
18 |
9 |
10 |
0.8 |
4.2 |
19±1.5 |
7.5 |
19±1.5 |
10±2.0 |
1-1K |
Journey Of The Manufacturing Process
Axial Leaded Type Resistors Department--Welding Division--Packing Division--SMD Resistors Department--Printing--Firing--Side Terminal
