Name: Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree
Brand: Aolittel
SKU: SB612
Rating: 4.8 (173 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Human Body Dectector PIR Module SB612

Part Number: SB612A-02-001

Dimension: 32*24mm

Supply Current: DC3V~15V

Current Drain: <20μA

Voltage Output: Input::3V~15V OutPut:3.3V

Delay Time: Delay Time、Sensitivity、Lighting Adjustable

Operation Temperature: -20℃~60℃

Infrared Sensor: Dual Element,Low Noise, High Sensitivity

Light Sensor: CdS(Can Be Add As Customer Requirement)

TTL Output: TTL Output Can Be Directly Connected To Micro-controller Or Logic Device

Sensitivity: High Sensitivity

High Light:

flame detector sensor

surface mount resettable fuse

Basic Infomation

Brand Name: Aolittel

Model Number: SB612

Payment & Shipping Terms

Packaging Details: Bulk

Delivery Time: 10 Working Days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 10,000,000 Pieces Per Month

Gallery

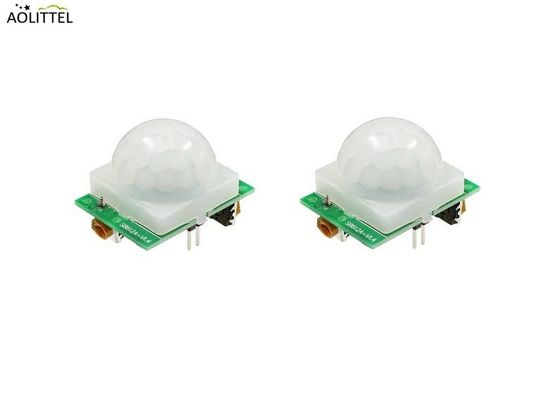

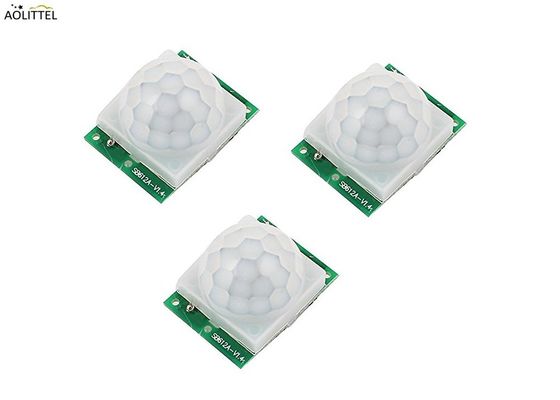

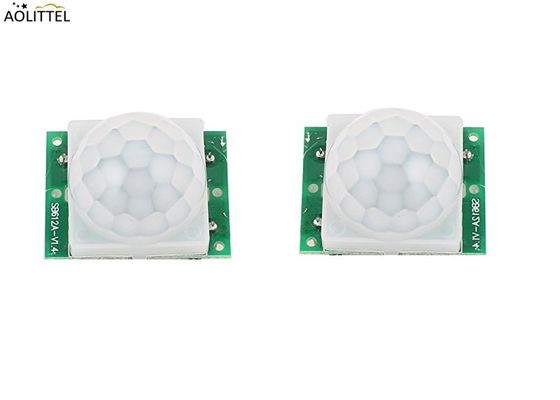

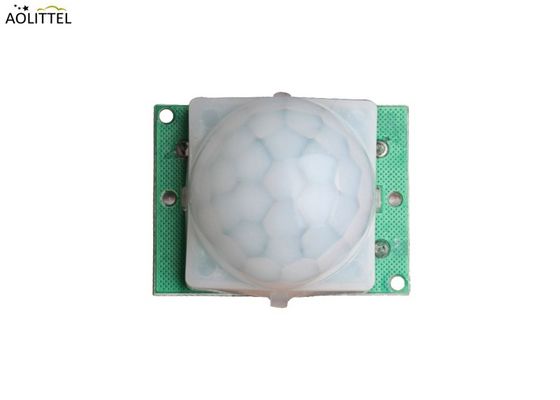

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree

Product Description

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree

Description

SB612A is a pyroelectric sensor module which developed for human body detection. An integrated
PIR sensor combined with a fresnel lens which is mounted on a compact PCB, and limited components to
form the module. Delay time, lux is adjustable. Customization is accepted.

______________________________________________________________________________ Download________

Features

Type:	SB612
Size:	32*24mm
Supply Current:	DC3V~15V
Current Drain:	<20μA
Voltage Output:	Input::3V~15V OutPut:3.3V
Delay Time:	Delay time. Sensitivity . Lighting adjustable
Operation Temperaute:	-20℃~60℃
Infrared Sensor:	Dual element,Low noise, High Sensitivity
Light Sensor:	CdS(Can be add as customer requirement)
TTL Output:	TTL Output can be directly connected to micro-controller or logic device
Sensitivity:	High Sensitivity

Schematic Diagram

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree 1

Lens

Lens diameter: 24mm (default), detecting angle≤120°, detecting range<10M.

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree 2

Dimension (Unit:mm)

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree 3

Application Guide

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree 4

Funtions:
1. DC-INPUT: supply voltage (DC3.0V-12V)
2. TEST: test pin for output. With output, high level signal (3.0V); no output, low level signal (0V)
3. LOAD+: anode of the load. LOAD-: cathode of the load. Voltage of the load and .
DC-INPUT are the same. Max current with load is 100mA.
4. DARK_ADJ: Lux adjustment.
5. DELAY_TIME: delay time adjustment.

Parameter Setting

1. Input voltage and Quiescent current

The module must be added one LDO.

2. Sensitivity adjustment

A voltage applied to the SENS input sets the threshold used to detect a PIR Signal between the PIRIN
and NPIPIN inputs.VSS selects the minimum threshold voltage.Any voltage above VDD/4 will select
the maximum threshold,which is the least sensitive setting for PIR signal detection.

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree 5

3. Light adjustment

When OEN voltage from low to high,when it higher 0.4DD(1.2V),Vout output enable. OEN voltage
from high to low,when lower 0.2VDD(0.6V),Vout output disable.

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree 6

4. Delay time adjustment

Step	ONTIME Center Voltage (V)	On time(s)	Voltage(V)	Pull-up resistor	Pull-down resistor
Step	(VDD(Step2)+3)/128	(Typical)	(VDD=3V)	Pull-up resistor	Pull-down resistor
0	3/128 or lower	2.3	0	NO	0R
1	(VDD*2+3)/128	4.7	0.07	1M	24K
2	(VDD*4+3)/128	7	0.117	1M	39K
3	(VDD*6+3)/128	9.4	0.164	1M	56K
4	(VDD*8+3)/128	18.7	0.21	1M	75K
5	(VDD*10+3)/128	37	0.257	1M	91K
6	(VDD*12+3)/128	56	0.304	1M	110K
7	(VDD*14+3)/128	1min 15 sec	0.351	1M	130K
8	(VDD*16+3)/128	2min 30 sec	0.398	1M	150K
9	(VDD*18+3)/128	5min	0.445	1M	174K
10	(VDD*20+3)/128	7min 29 sec	0.492	1M	200K
11	(VDD*22+3)/128	9min59 sec	0.539	1M	220K
12	(VDD*24+3)/128	19min 58 sec	0.585	1M	240K
13	(VDD*26+3)/128	39min 56sec	0.632	1M	270K
14	(VDD*28+3)/128	59min25 sec	0.679	1M	294K
15	(VDD*30+3)/128 or higher	1hour20min	3	0R	NO

Adjustable Low Noise Human Body Dectector PIR Module SB612 With Sensor Distance 10m Detecting Angle 120 Degree 7

Note

Due to the high sensitivity of PIR sensor device, it is not recommended to use the module in the following
or similar condition.

A) in rapid environmental changes
B) in strong shock or vibration
C) in a place where there are obstructing material (eg. glass) through which IR cannot pass within
detection area.
D) exposed to direct sun light
E) exposed to direct wind from a heater or air condition
