IEC 60127 8.5 mm Quick-Acting F 3.15A 250 VAC Box Type Miniature Chip Subminiature Fuse MFS1315A

1000 Pieces
MOQ
USD 0.025 to 0.06 Per Piece
Price
IEC 60127 8.5 mm Quick-Acting F 3.15A 250 VAC Box Type Miniature Chip Subminiature Fuse MFS1315A
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Box Type Subminiature Fuse
Current Value: 3.15A
Voltage: 250V AC
Breaking Capacity: 35A
Characteristic: Quick-Acting F
Mounting: PCB,THT
Admissible Ambient Air Temp: -40°C To 85°C
Unit Weight: 0.5gram
Storage Conditions: 0°C To 40°C, Max. 70% R.h.
Material: Terminals: Tin-Plated Copper
Material: Housing: Thermoplastic, UL 94V-0
Climatic Category: 40/085/21 Acc. To IEC 60068-1
Highlight:

micro mini fuse

,

mini auto fuse
Basic Infomation
Place of Origin: CHINA
Brand Name: AO LITTEL
Certification: UR,CUR,VDE,CQC,PSE,KTL
Model Number: MFS1315A
Payment & Shipping Terms
Packaging Details: Tape / Bulk
Delivery Time: 7 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 20,000,000 Pieces Per Day
Product Description


IEC 60127 8.5 mm Quick-Acting F 3.15A 250 VAC Box Type Subminiature Fuse MFS1315A


Specification


P/N

Ampere
Rating

Voltage
Rating

Max Voltage
Drop (mv)

I2TMelting
Integral(A2.S)
MFS0200A 200mA 250V 1700 0.04
MFS0250A 250mA 250V 1400 0.06
MFS0315A 315mA 250V 1300 0.10
MFS0400A 400mA 250V 1200 0.20
MFS0500A 500mA 250V 1100 0.35
MFS0630A 630mA 250V 650 0.50
MFS0800A 800mA 250V 240 1.3
MFS1100A 1A 250V 200 1.6
MFS1125A 1.25A 250V 200 2.4
MFS1160A 1.6A 250V 190 4.6
MFS1200A 2A 250V 170 7.9
MFS1250A 2.5A 250V 170 12
MFS1315A 3.15A 250V 150 22
MFS1400A 4A 250V 130 29
MFS1500A 5A 250V 130 78
MFS1630A 6.3A 250V 130 97
MFS1800A 8A 250V 100 290
MFS2100A 10A 250V 100 430



______________________________________________________________________________IEC 60127 8.5 mm Quick-Acting F 3.15A 250 VAC Box Type Miniature Chip Subminiature Fuse MFS1315A 0 Download________



Agency Approvals List



Agency

Ampere Range

Agency File Number
UR 50mA ~ 6.3A E340427(JDYX2)
C-UR 50mA ~ 6.3A E340427(JDYX8)
VDE 50mA ~ 6.3A 40039420
CQC 50mA ~ 6.3A CQC16012154495
PSE 50mA ~ 6.3A PSE16021073
KTL 50mA ~ 6.3A SU05052-16004/16005/16006



Excutive Standards

Standards:In accordance with IEC60127-1, IEC60127-3 Standard sheet4, GB9364.1-1997, GB9364.3-1997.


Technical Datas


Series MFS Box Type Subminiature Fuse
Dimension 8.4*8.4*8.2mm
Shape Box type
Color  Black or Red
Voltage Ratings 250V AC
Rated Current 200mA-10A
Breaking Capacity 35A
Characteristic Quick-Acting F
Mounting PCB,THT
-40°C to 85°C -40 to +85Deg
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Housing Thermoplastic, UL 94V-0
Material: Terminals Tin-Plated Copper
Storage Conditions 0°C to 40°C, max. 70% r.h.
Unit Weight 0.5 Gram



Box Type Subminiature Fuse Family


Ao littel Subminiature Fuse Family Member
No. Voltage Blow Series Remark
1 250V Time Lag MTS
2 250V Fact-acting MFS
3 300V Time Lag NTS
4 300V Fact-acting NFS
5 350V Fact-acting FMS
6 350V Time Lag TMS
7 250V/300V Time Lag MTC Mini size

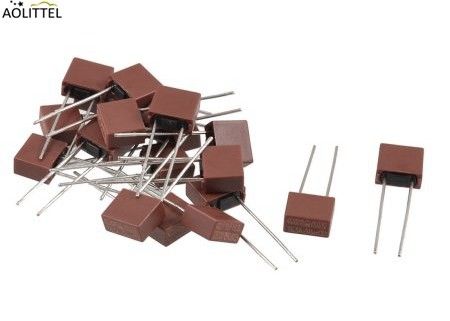

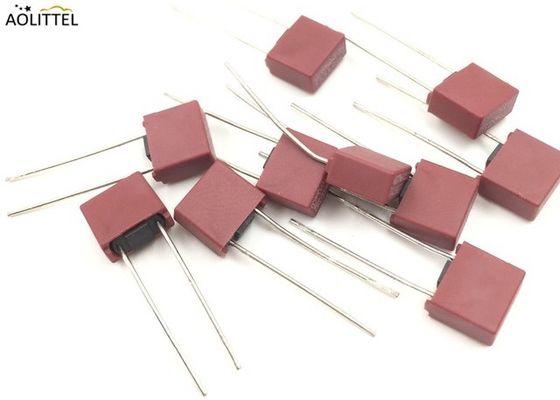

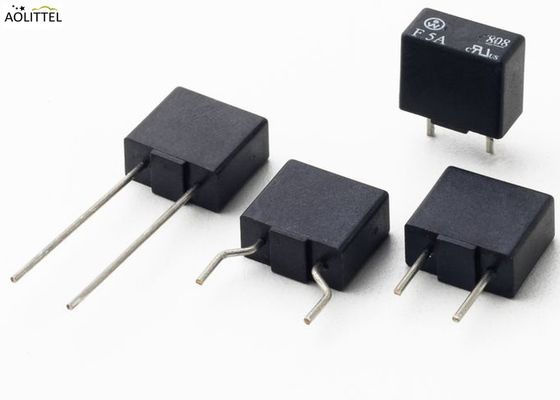

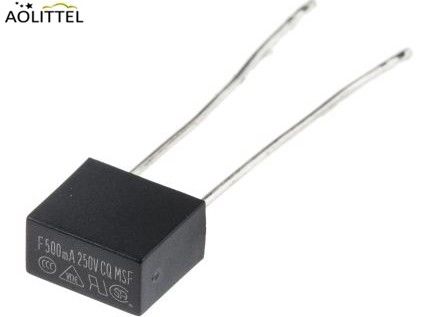

Product Photo

IEC 60127 8.5 mm Quick-Acting F 3.15A 250 VAC Box Type Miniature Chip Subminiature Fuse MFS1315A 1
