Name: Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL
Brand: AO LITTEL
SKU: FMS1200A
Price: 0.03 USD
Availability: InStock
Rating: 4.8 (134 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Item: Micro Subminiature Fuse FMS1200A

Rated Current: 2 Ampere (50mA~6.3A )

Voltage Ratings: 350V

Material: Plastic

Characteristic: F

Pig-Tail: Yes

Max Voltage Drop: 170mV

I2TMelting Integral(A2. S): 25.9

Color: Black(Red Could Be Available)

Unit Weight: 0.35419 G

Cold Resistance: 0.033 Ohms

Packaging: Tape Or Bulk

High Light:

micro mini fuse

mini cartridge fuse

Basic Infomation

Place of Origin: CHINA

Brand Name: AO LITTEL

Certification: UL,CUL,VDE,CQC,PSE,KTL

Model Number: FMS1200A

Payment & Shipping Terms

Packaging Details: A: Taping package 1000 pcs per box B: Bulk 1000 pcs / poly bag / 5 poly bags / box, altogether 5000 pcs

Delivery Time: 5-7 Workdays

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 20,000,000 Pieces Per Day

Gallery

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL

Product Description

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL

Application Filed

• Battery Chargers
• Consumer Electronics
• Power Supplies
• Industrial Controllers
• Flat-panel display TV
• LCD monitor
• LCD back light inverter
• Office machines
• Audio/Video system
• Lighting system
• Medical equipment

______________________________________________________________________________ Download________

Features

8.4*7.2 mm Micro fuse
Small volume
Rating Current : FMS 50mA~10A
Rating Voltage : 250V / 277V / 300 / 350Vac
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability.
Operating temperature range: -55 to +125C

Average Time Current Curves : FMS

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL 1

Electrical Characteristic

Rated Current	Blowing Time
210%	30 min Max.
275%	10 mSec ~ 3 mSec
1000%	20 mSec Max.

Mechanical Dimensions

Unit: mm

Material information

NO.	Part Name	Material
1	Cap	Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
2	Base	Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
3	Fuse element	Alloy
④	Lead wire	Copper, Tin-plated

Part Numbering

Part. No.	Ampere Rating	Voltage Rating	Max Voltage Drop (mv)	I2TMelting Integral(A2.S)	Agency Approvals
Part. No.	Ampere Rating	Voltage Rating	Max Voltage Drop (mv)	I2TMelting Integral(A2.S)	UL	VDE	CQC	PSE	JTK KTL
FMS0050A	50mA	350V	555	0.02	●	○	○	○	○
FMS0100A	100mA	350V	355	0.11	●	○	○	○	○
FMS0125A	125mA	350V	323	0.12	●	○	○	○	○
FMS0160A	160mA	350V	296	0.17	●	○	○	○	○
FMS0200A	200mA	350V	272	0.21	●	○	○	○	○
FMS0250A	250mA	350V	251	0.41	●	○	○	○	○
FMS0315A	315mA	350V	237	0.63	●	○	○	○	○
FMS0400A	400mA	350V	211	1.22	●	○	○	○	○
FMS0500A	500mA	350V	202	2.34	●	○	○	○	○
FMS0630A	630mA	350V	191	2.88	●	○	○	○	○
FMS0800A	800mA	350V	172	3.92	●	○	○	○	○
FMS1100A	1A	350V	200	5.77	●	○	○	○	○
FMS1125A	1.25A	350V	200	8.34	●	○	○	○	○
FMS1160A	1.6A	350V	190	13.60	●	○	○	○	○
FMS1200A	2A	350V	170	25.90	●	○	○	○	○
FMS1250A	2.5A	350V	170	42	●	○	○	○	○
FMS1300A	3A	350V	165	45	●	○	○	○	○
FMS1315A	3.15A	350V	150	64	●	○	○	○	○
FMS1400A	4A	350V	130	92	●	○	○	○	○
FMS1500A	5A	350V	130	140	●	○	○	○	○
FMS1630A	6.3A	350V	130	208	●	○	○	○	○
FMS1800A	8A	350V	100	265	○	○	○	○	○
FMS2100A	10A	350V	100	295	○	○	○	○	○

Installation Recommendations

a. Propose installation way as following picture.

b. Recommended Soldering Parameters

1) Wave Parameters:

Solder Pot Temperature: 260℃ Max

Solder Dwell Time: 2~5s

2) Hand-Solder Parameters:

Solder Iron Temperature: 350±5℃

Heating Time: 1~2 s Max

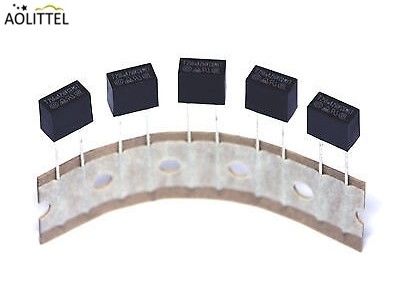

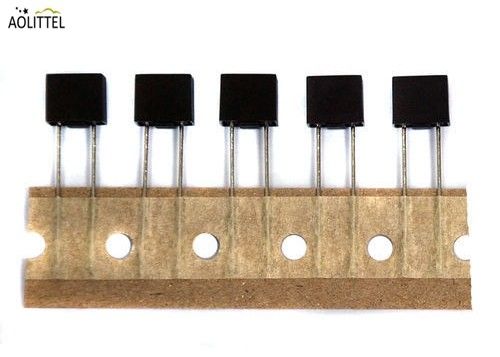

Product Photo
