UL94-V0 Slow Blow Lead Box Type 392 932 Micro Subminiature Fuse TMS1100A With Rating 1A 350VAC Time-Lag

1000 Pieces
MOQ
USD 0.03 to 0.06 Per Piece
Price
UL94-V0 Slow Blow Lead Box Type 392 932 Micro Subminiature Fuse TMS1100A With Rating 1A 350VAC Time-Lag
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Micro Subminiature Fuse TMS1100A
Color: Black (Default) Or Brown
Fuse Type: Board Mount (Cartridge Style Excluded)
Rated Current: 1A (50mA~15A)
Rated Voltage: 350V AC 72V DC (125V/250V/300V)
Response Time: Slow
Case: Radial, Box
Mount Type: Through Hole
Breaking Capacity @ Rated Voltage: 100 Amp
Melting I²t: 5.77
Operating Temp Range: -55°C ~ 125°C
DC Cold Resistance: 0.082 Ohms
Size / Dimension: 8.4mm X 4.00mm X 7.20mm (0.329" L X 0.157" W X 0.307" H )
High Light:

mini cartridge fuse

,

mini auto fuse
Basic Infomation
Place of Origin: CHINA
Brand Name: Aolittel
Certification: UL,VDE,CQC,PSE,KC
Model Number: TMS1100A
Payment & Shipping Terms
Packaging Details: A: Taping package 1000 pcs per box B: Bulk 1000 pcs / poly bag / 5 poly bags / box, altogether 5000 pcs
Delivery Time: 5-7 Workdays
Payment Terms: T/T, Western Union
Product Description



UL94-V0 Slow Blow Lead Micro Subminiature Fuse TMS1100A With Rating 1A 350VAC





Safety Agency Aprovals



Agency

Ampere Range

Agency File Number
UR 50mA ~ 6.3A E340427(JDYX2)
C-UR 50mA ~ 6.3A E340427(JDYX8)
VDE 50mA ~ 6.3A 40039420
CQC 50mA ~ 6.3A CQC16012154495
PSE 50mA ~ 6.3A PSE16021073
KC 50mA ~ 6.3A SU05052-16004/16005/16006



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Features



Compact, round or rectangular body with 5mm Pin Spacing
94V-0 Thermoplastic Housing
RoHS6 Compliant
Pb-Free
Halogen-Free
Bulk and Ammo Pack Available





Specification



  • Wave Solder Process - 260°C, 10 Sec., Max.
  • Multiple Safety Agency Approvals
  • Operating Temperature: -55°C to +125°C
  • Mil-Std 202G Environmental Compliant

Part.

No.

Ampere

Rating

Voltage

Rating

Max Voltage

Drop (mv)

I2TMelting

Integral(A2.S)

Agency Approvals
UL VDE CQC PSE



KC


TMS0050A 50mA 350V 555 0.02 ● ● ● ● ●
TMS0100A 100mA 350V 355 0.11 ● ● ● ● ●
TMS0125A 125mA 350V 323 0.12 ● ● ● ● ●
TMS0160A 160mA 350V 296 0.17 ● ● ● ● ●
TMS0200A 200mA 350V 272 0.21 ● ● ● ● ●
TMS0250A 250mA 350V 251 0.41 ● ● ● ● ●
TMS0315A 315mA 350V 237 0.63 ● ● ● ● ●
TMS0400A 400mA 350V 211 1.22 ● ● ● ● ●
TMS0500A 500mA 350V 202 2.34 ● ● ● ● ●
TMS0630A 630mA 350V 191 2.88 ● ● ● ● ●
TMS0800A 800mA 350V 172 3.92 ● ● ● ● ●
TMS1100A 1A 350V 200 5.77 ● ● ● ● ●
TMS1125A 1.25A 350V 200 8.34 ● ● ● ● ●
TMS1160A 1.6A 350V 190 13.60 ● ● ● ● ●
TMS1200A 2A 350V 170 25.90 ● ● ● ● ●
TMS1250A 2.5A 350V 170 42 ● ● ● ● ●
TMS1300A 3A 350V 165 45 ● ● ● ● ●
TMS1315A 3.15A 350V 150 64 ● ● ● ● ●
TMS1400A 4A 350V 130 92 ● ● ● ● ●
TMS1500A 5A 350V 130 140 ● ● ● ● ●
TMS1630A 6.3A 350V 130 208 ● ● ● ● ●
TMS1800A 8A 350V 100 265 ○ ○ ○ ○ ○
TMS2100A 10A 350V 100 295 ○ ○ ○ ○ ○
TMS2120A 12A 350V 98 295 ○ ○ ○ ○ ○
TMS2150A 15A 350V 95 299 ○ ○ ○ ○ ○





Description



Pre-dominant plastic body radial lead package subminiature fuse with U.S (UL/CSA)., Europe (VDE/Semko), China (CQC), Korea (KC) and Japan (PSE) safety agency approvals, allows use of a single fuse rating in products with true World-Wide acceptance. Provides board level primary circuit protection in a wide variety of battery chargers, power supplies, modems, routers, consumer electronics, etc.





Dimension



Unit:mm



UL94-V0 Slow Blow Lead Box Type 392 932 Micro Subminiature Fuse TMS1100A With Rating 1A 350VAC Time-Lag 1





Electrical Characteristics (UL-248-14)



Standards:In accordance with IEC60127-1, IEC60127-3 Standard sheet4, GB9364.1-1997, GB9364.3-1997.



Rating

Blowing Time
210% 2 min Max
275% 400 ms~10 s
1000% 20 ms~150 ms





Package Data



Requirements

The following items indicated on the label:

part number, ratings (voltage, current), interrupting type and safety mark.



The packing material conforms to ROHS/REACH/HF environmental protection request. And the packing materials will not have the chemical reaction with the components.
Packaging QTY

Taping package 1000 pcs per box

Bulk 1000 pcs / poly bag,5 poly bags / box, altogether 5000 pcs

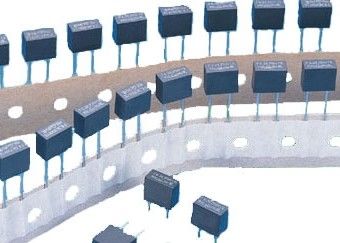

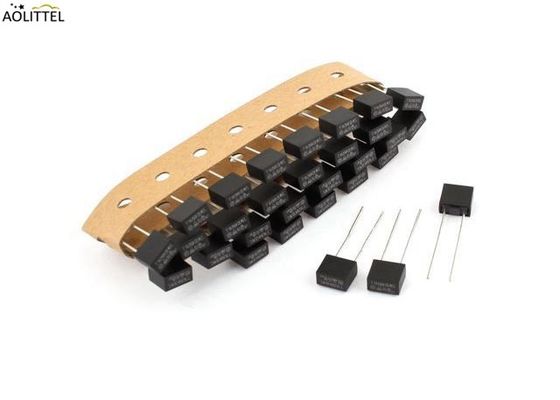

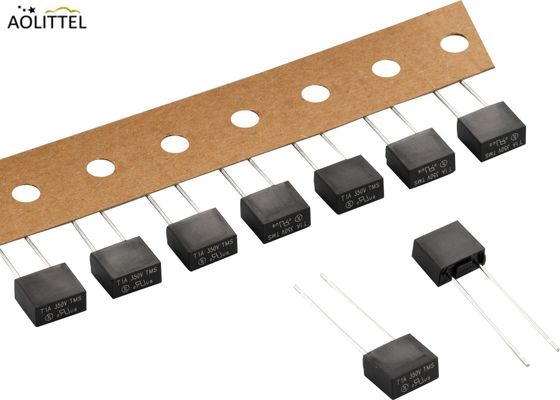

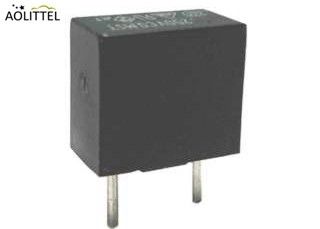

Actual Product Photo- Micro Subminiature Fuse



UL94-V0 Slow Blow Lead Box Type 392 932 Micro Subminiature Fuse TMS1100A With Rating 1A 350VAC Time-Lag 2





Related subminiature fuse info



Subminiature Fuse Family
No. Voltage Blow Series Remark
1 250V T MTS
2 250V F MFS
3 300V T NTS
4 300V F NFS
5 350V F FMS
6 350V T TMS
7 250V/300V T MTC Mini size
