Product Type: Time Lag Subminiature Fuse 8.4mm 250V

Color: Black (Brown Can Be Available If Required)

Rated Voltage: 250VAC

Rated Current: 50mA-10A

Breaking Capacity: 100A

Characteristic: Time-Lag T

Mounting: PCB,THT

Admissible Ambient Air Temp.: -55 °C To 125 °C

Climatic Category: 40/085/21 Acc. To IEC 60068-1

Housing Material: Thermoplastic, UL 94V-0

Terminal Material: Tin-Plated Copper

Unit Weight: 0.78 Gram

Storage Conditions: 0 °C To 40 °C, Max. 70% R.h.

Soldering Methods: Wave

Solderability: 235 °C / 2 Sec Acc. To IEC 60068-2-20, Test Ta

Resistance To Soldering Heat: 260 °C / 10 Sec Acc. To IEC 60068-2-20, Test Tb

Resistance To Vibration: Acc. To IEC 60068-2-6, Test Fc

Life Test: 1000h @ 0.60 X In @ 70°C (acc. To EIA/IS-722, Test 4.4.1)

Load Humidity Test: MIL-STD-202, Method 103B 0.1 X In @ 0.85 R.H. @ 85°C

Moisture Resistance Test: MIL-STD-202, Method 106E (50 Cycles In A Temp./mister Chamber)

Terminal Strength: Tensile Load Min. 9 N (acc. To EIA/IS-722, Test 4.5.5)

Case Resistance: Acc. To EIA/IS-722, Test 4.7 >100 MΩ (between Leeds And Body)

Mechanical Shock: MIL-STD-202, Method 213B (Shock 50g, Half Sine Wave, 11 Ms)

Resistance To Solvents: MIL-STD-202, Method 215A

Flammability: UL 94V-0 (acc. To EIA/IS-722, Test 4.12)

Current Carrying Capacity: Acc. To EIA/IS-722, Test 4.3.3

High Light:

mini cartridge fuse

mini auto fuse

Basic Infomation

Place of Origin: Dongguan,China

Brand Name: Aolittel

Certification: UL,CUL,VDE,CQC,PSE,KC,ROHS

Model Number: MTS

Payment & Shipping Terms

Packaging Details: Bulk;1000pcs/Bag 5 Bag/Box 4 box /Carton 40*26*25cm 16.5kg/Carton Tape:1000pcs/box 10 box /carton 58*36*23cm 9.5kg/Carton

Delivery Time: 7 Workdays

Payment Terms: T/T, Western Union, MoneyGram,Paypal

Supply Ability: 7,000,000 Pieces Per Week

Gallery

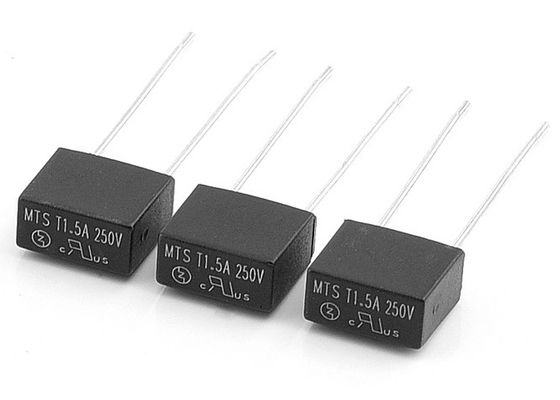

Eaton Cooper Bussmann SR-5 Substitute Time Lag Subminiature Fuse 8.4mm 250V With Global Certificates

Product Description

Eaton Cooper Bussmann SR-5 Substitute Time Lag Subminiature Fuse 8.4mm 250V With Global Certificates

Description

Ao littel MTS Subminiature Fuse are in radial leaded and time-lag thru-hole ,it is international accepted for primary and secondary overcurrent protection since designed to IEC 60127-3,Sheet 4 and can mount into PCB or plug into BK/PCS holder directly, also along with high inrush withstand capability.Nowadays, SMT technology became mature and trend would be SMT manufacturing and prodcut would be smaller and smaller, Ao littel MTS subminiature fuse is compatible with leaded and lead-free reflow and wave solder.Recently, we also developed new product smaller size and high voltage type-300V/350V,contact us to get further info.

__________________________________________________________________________ Download________

Ao littel Subminiature Fuse Family Member
Ao littel Subminiature Fuse Family Member
No.	Voltage	Blow	Series	Remark
1	250V	Time Lag	MTS
2	250V	Fact-acting	MFS
3	300V	Time Lag	NTS
4	300V	Fact-acting	NFS
5	350V	Fact-acting	FMS
6	350V	Time Lag	TMS
7	250V/300V	Time Lag	MTC	Mini size

Eaton Cooper Bussmann SR-5 Substitute Time Lag Subminiature Fuse 8.4mm 250V With Global Certificates 1

Agency Overview

Agency	Ampere Range	Agency File Number
UR	50mA ~ 6.3A	E340427(JDYX2)
C-UR	50mA ~ 6.3A	E340427(JDYX8)
VDE	50mA ~ 6.3A	40039420
CQC	50mA ~ 6.3A	CQC16012154495
PSE	50mA ~ 6.3A	PSE16021073
KC	50mA ~ 6.3A	SU05052-16004/16005/16006

Advantages

• Solderability: EIA-186-9E Method 9
• High frequency vibration: MIL-STD-202F,Method 201A
• Operating temperature: -55°C to +125°C
• Soldering heat resistance: 260°C, 10 Sec. max (IEC 60068-2-20)

• Reduced PCB space requirements
• Direct solderable or plug-in versions
• Internationally approved
• Low internal resistance
• Shock safe casing
• Vibration resistant
• Available from 0.050A to 10A

• Fully automatic production by machine can keep competitive

Electrical Characteristics

● Approved

○ Pending

Part No.	Ampere Rating	Voltage Rating	Max Voltage Drop (mv)	I²TMelting Integral(A².S)	Agency Approvals
Part No.	Ampere Rating	Voltage Rating	Max Voltage Drop (mv)	I²TMelting Integral(A².S)	UL	VDE	CQC	PSE	KC
MTS0050A	50mA	250V	555	0.02	●	○	○	○	○
MTS0100A	100mA	250V	355	0.11	●	○	○	○	○
MTS0125A	125mA	250V	323	0.12	●	○	○	○	○
MTS0160A	160mA	250V	296	0.17	●	○	○	○	○
MTS0200A	200mA	250V	272	0.21	●	○	○	○	○
MTS0250A	250mA	250V	251	0.41	●	○	○	○	○
MTS0315A	315mA	250V	237	0.63	●	○	○	○	○
MTS0400A	400mA	250V	211	1.22	●	○	○	○	○
MTS0500A	500mA	250V	202	2.34	●	●	●	●	●
MTS0630A	630mA	250V	191	2.88	●	○	○	○	○
MTS0800A	800mA	250V	172	3.92	●	○	○	○	○
MTS1100A	1A	250V	200	5.77	●	●	●	●	●
MTS1125A	1.25A	250V	200	8.34	●	○	○	○	○
MTS1160A	1.6A	250V	190	13.60	●	●	●	●	●
MTS1200A	2A	250V	170	25.90	●	●	●	●	●
MTS1250A	2.5A	250V	170	42	●	●	●	●	●
MTS1300A	3A	250V	165	45	●	○	○	○	○
MTS1315A	3.15A	250V	150	64	●	●	●	●	●
MTS1400A	4A	250V	130	92	●	○	○	○	○
MTS1500A	5A	250V	130	140	●	●	●	●	●
MTS1630A	6.3A	250V	130	208	●	●	●	●	●
MTS1800A	8A	250V	100	265	○	○	○	○	○
MTS2100A	10A	250V	100	295	○	○	○	○	○

Fusing Characteristics

% of Ampere Rating(In)	Blowing Time
150%* In	60 min Minimum
210%* In	2 min Max
275%* In	400 ms~10 s
400%* In	150 ms~3 s
1000%* In	20 ms~150 ms

Dimension in mm

Eaton Cooper Bussmann SR-5 Substitute Time Lag Subminiature Fuse 8.4mm 250V With Global Certificates 2

Packaging

a.The following items indicated on the label:

Part number, ratings (voltage, current), interrupting type and safety mark.

b. Packing Quantity

Bulk packing:

Bulk 1000 pcs in per poly bag;

5 poly bags in per inner box(L240±2 * W170±2 * H110±2);

4 inner boxes in per outer carton(L240±2 * W170±2 * H110±2)

Weight : 16.5kg/Carton

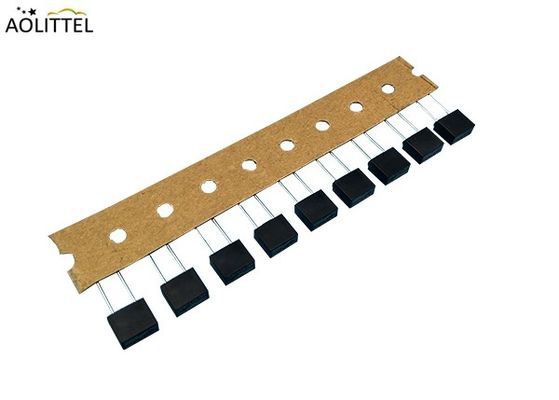

Taped packing:

1000 pcs per inner box(L328±2 * W197±2 * H40±2)

10 inner boxes per outer carton(L580±5 * W360±5 * H230±5)

Weight : 9.5kg/Carton

Reliable Test

Materials	Base/Cap: Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 Round Pins: Copper, Tin-plated
Lead Pull Strength	10 N (IEC 60068-2-21)
Solderability	260ºC, ≤ 3s. (Wave) 350ºC, ≤ 1s. (Soldering Iron)
Soldering Heat Resistance	260ºC, 10s. (IEC 60068-2-20) 350ºC, 3s. (Soldering Iron)
Operating Temperature	-40ºC to +85ºC (Consider re-rating)
Climatic Category	-40ºC/+85ºC/21 days IEC 60068-1,-2-1,-2-2,-2-78)
Stock Conditions	+10ºC to +60ºC RH ≤ 75% yearly average, without dew, maximum value for 30 days-95%
Vibration Resistance	24 cycles at 15 min. each (IEC 60068-2-6) 10 - 60 Hz at 0.75 mm amplitude 60 - 2000 Hz at 10G’s acceleration
