Schurter SPT Equivalent PCB Or THT Mounting 3.6x10mm Slow Blow Cartridge Ceramic Tube Fuse 125V 100mA-12A

1000PCS
MOQ
USD 0.03 to 0.06USD Per Piece
Price
Schurter SPT Equivalent PCB Or THT Mounting 3.6x10mm Slow Blow Cartridge Ceramic Tube Fuse 125V 100mA-12A
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Cartridge Ceramic Tube Fuse
Fuse Size: 3.6x10mm
Current Rating: 100mA~12A
Voltage Rating: 250Vac / 125Vac
Fuse Speed: T
Diameter: 3.6mm
Overall Length: 10mm
Body Material: Ceramic
Breaking Capacity At Maximum Voltage Rating: 50A
Minimum Operating Temperature: -55°C
Maximum Operating Temperature: +125°C
Series: PTU Series
Approvals: UL Recognised, CUL Approved
Standards: IEC 60127-3 / 4, UL 248-14, CSA C22.2 No. 248.14
Highlight:

ceramic thermal fuse

,

ceramic automotive fuses
Basic Infomation
Place of Origin: Dongguan,China
Brand Name: Aolittel
Certification: UL,CUL,SGS
Model Number: PTU
Payment & Shipping Terms
Packaging Details: Bulk;Bulk 500 pcs in per poly bag; 10 poly bags in per inner box L240±2 * W170±2 * H110±2; 4 inner boxes in per outer carton L390±5 * W240±5 * H250±5. 12kg/Carton
Delivery Time: 7 workdays
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1,000,000 Pieces Per Week
Product Description



Schurter SPT Equivalent PCB Or THT Mounting 3.6x10mm Slow Blow Cartridge Ceramic Tube Fuse 125V 100mA-12A





Applications


Primary circuit protection:


a. Power supplies
b. LED and general lighting
c. Consumer electronics
d. Desktop, laptop and notebook
e.Test equipment



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Product description



I Time-delay (Slow blow )

II Designed to IEC60127-3

III Nickel-plated brass single end cap construction

IV 3.6 mm x 10 mm compact design utilizes less board space

V Halogen free, lead free, RoHS compliant

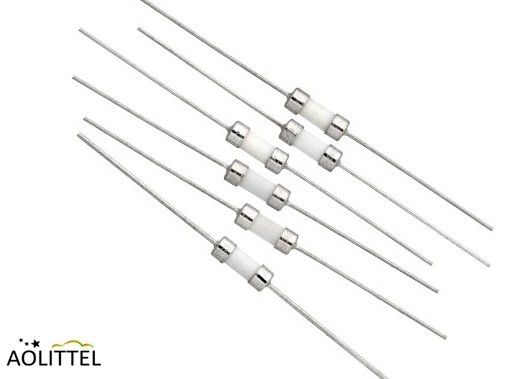

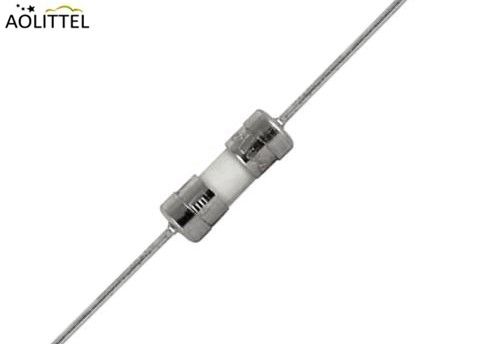

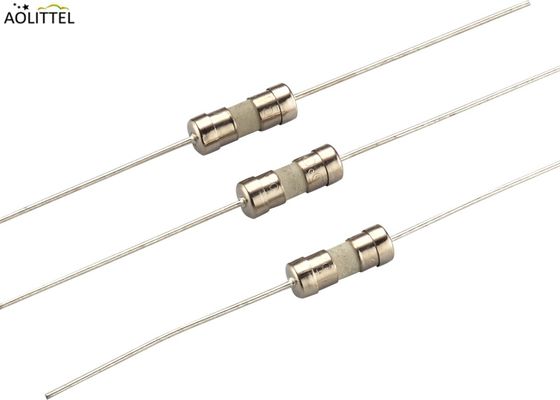

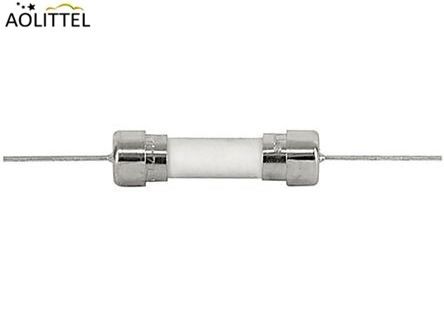

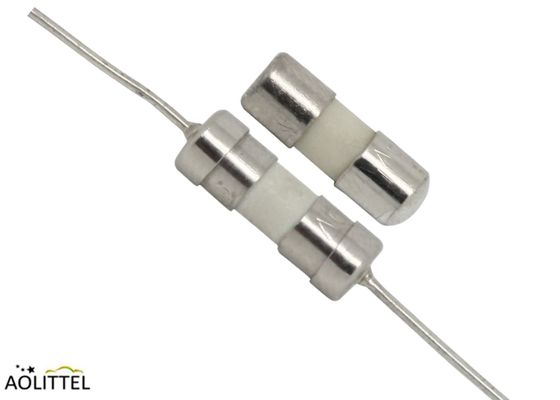

Schurter SPT Equivalent PCB Or THT Mounting 3.6x10mm Slow Blow Cartridge Ceramic Tube Fuse 125V 100mA-12A 1



Ao littel Ceramic Tube Fuse Family Member
No. Size Blow Voltage Series
1 3.6x10mm Slow Blow 125V/250V PTU
2 3.6x10mm Fast Blow 125V/250V PTU
3 4x11mm Slow Blow 125V/250V HTP
4 4x11mm Fast Blow 125V/250V HFP
5 5x20mm Slow Blow 125V/250V BTC
6 5x20mm Fast Blow 125V/250V BFC
7 6.32x32mm Slow Blow 125V/250V BMT
8 6.32x32mm Fast Blow 125V/250V BMF





Specification  (A = 250V/ B =125V,● Approved / ○ Pending)



Part

No.

Ampere

Rating

Voltage

Rating

Breaking

Capacity

I2TMelting

Integral(A2.S)

Agency Approvals
UL CUL



PSE


PTU0100A/B 100mA 250V/125V 50A@125V/250VAC 0.0042 ○ ○ ○
PTU0125A/B 125mA 250V/125V 50A@125V/250VAC 0.010 ○ ○ ○
PTU0160A/B 160mA 250V/125V 50A@125V/250VAC 0.025 ○ ○ ○
PTU0200A/B 200mA 250V/125V 50A@125V/250VAC 0.035 ○ ○ ○
PTU0250A/B 250mA 250V/125V 50A@125V/250VAC 0.056 ● ● ○
PTU0300A/B 300mA 250V/125V 50A@125V/250VAC 0.10 ● ● ○
PTU0315A/B 315mA 250V/125V 50A@125V/250VAC 0.12 ● ● ○
PTU0350A/B 350mA 250V/125V 50A@125V/250VAC 0.15 ● ● ○
PTU0400A/B 400mA 250V/125V 50A@125V/250VAC 0.25 ● ● ○
PTU0500A/B 500mA 250V/125V 50A@125V/250VAC 0.35 ● ● ○
PTU0630A/B 630mA 250V/125V 50A@125V/250VAC 0.55 ● ● ○
PTU0750A/B 750mA 250V/125V 50A@125V/250VAC 0.70 ● ● ○
PTU0800A/B 800mA 250V/125V 50A@125V/250VAC 1.1 ● ● ○
PTU1100A/B 1A 250V/125V 50A@125V/250VAC 2 ● ● ○
PTU1125A/B 1.25A 250V/125V 50A@125V/250VAC 3.8 ● ● ○
PTU1150A/B 1.5A 250V/125V 50A@125V/250VAC 4.2 ● ● ○
PTU1160A/B 1.6A 250V/125V 50A@125V/250VAC 6.2 ● ● ○
PTU1200A/B 2A 250V/125V 50A@125V/250VAC 13 ● ● ○
PTU1250A/B 2.5A 250V/125V 50A@125V/250VAC 18 ● ● ○
PTU1300A/B 3A 250V/125V 50A@125V/250VAC 28 ● ● ○
PTU1315A/B 3.15A 250V/125V 50A@125V/250VAC 32 ● ● ○
PTU1350A/B 3.5A 250V/125V 50A@125V/250VAC 39 ● ● ○
PTU1400A/B 4A 250V/125V 50A@125V/250VAC 43 ● ● ○
PTU1500A/B 5A 250V/125V 50A@125V/250VAC 50 ● ● ○
PTU1600A/B 6A 250V/125V 50A@125V/250VAC 56 ○ ○ ○
PTU1630A/B 6.3A 250V/125V 50A@125V/250VAC 60 ○ ○ ○
PTU1700A/B 7A 250V/125V 50A@125V/250VAC 65 ○ ○ ○
PTU1800A/B 8A 250V/125V 50A@125V/250VAC 70 ○ ○ ○
PTU2100A/B 10A 250V/125V 50A@125V/250VAC 78 ○ ○ ○
PTU2100A/B 12A 250V/125V 50A@125V/250VAC 80 ○ ○ ○





Product Characteristics



Material Body: Ceramic
Cap: Nickel Plated Brass
Tin Plated Copper
Terminal Strength MIL-STD-202, Method 211, Test Condition A
Solderability MIL-STD-202, Method 208
Product Marketing Body: Brand Logo, Current Rating ,Voltage Rating, Agency approval marks
Packaging Bulk (500 pcs/polybag,5000pcs/box,20000pcs/carton)
Operating Temperature -55ºC to 125ºC
Thermal Shock MIL-STD-202, Method 107 Test Condition B3 (5 cycles -65ºC to +125ºC)
Vibration MIL-STD-202, Method 201 (10-55 Hz)
Humidty MIL-STD-202, Method 106, High Humidity (90-98%RH), Heat (65ºC)
Salt Spray MIL-STD-202, Method 101, Test Condition B





Operating Characteristics



% of Ampere Rating(In)

Blowing Time
100% * In 4 hours Min
200% * In 60 sec Max





Packaging Datas



Bulk
Bulk 500 pcs in per poly bag Schurter SPT Equivalent PCB Or THT Mounting 3.6x10mm Slow Blow Cartridge Ceramic Tube Fuse 125V 100mA-12A 2
10 poly bags in per inner box 3.6x10mm Axial Leaded Time Delay Glass Tube Fuse 100mA-24A 250V With UL CUL L240±2 * W170±2 * H110±2
4 inner boxes in per outer carton 3.6x10mm Axial Leaded Time Delay Glass Tube Fuse 100mA-24A 250V With UL CUL

L390±5 * W240±5 * H250±5
