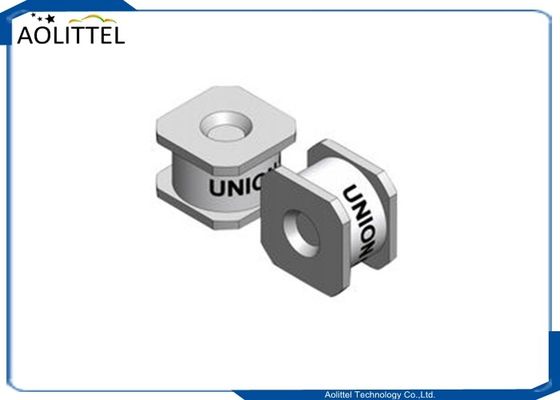

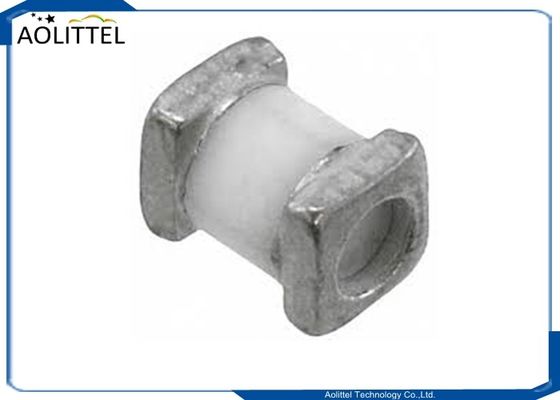

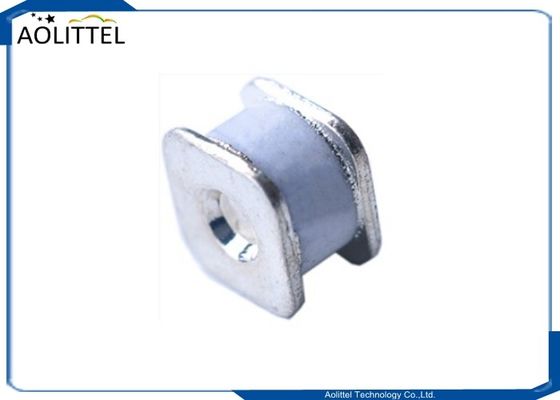

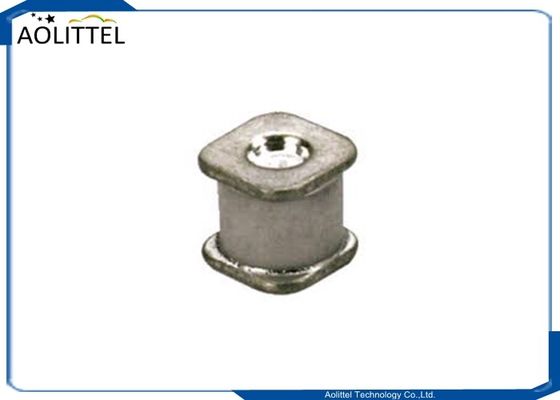

SMD 2-Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
Features
1. RoHS & HF compliant
2. SMD type series
3. DC spark-over voltage: 75~1000V
4. Low capacitance
5. Agency recognition: UL / cUL
6. Operating temperature: -40℃ ~ +85℃ Storage temperature: -40℃ ~ +115℃
Size in mm
Recommended Applications
1. Cable modem
2. xDSL
3. Set-top box
4. TV sets
5. Power supply
6. Consumer electronics
Ordering Information
| Part Number |
DC Spark-over voltage (V) |
1kV/s (V) |
AC 50Hz 1sec |
8/20μs (1 time)(KA) | DC Holdover Voltage(V) | Minimum Insulation Resistance(GΩ) | Maximum capacitance @1MHz(PF) | Impulse life (10/1000μs)@300A |
| SX4-75X | 75±20% | 800 | 3 | 5 | 52 | 1 | 0.5 | 300 |
| SX4-90X | 90±20% | 800 | 3 | 5 | 52 | 1 | 0.5 | 300 |
| SX4-150X | 150±20% | 800 | 3 | 5 | 80 | 1 | 0.5 | 300 |
| SX4-230X | 230±20% | 700 | 3 | 5 | 150 | 1 | 0.5 | 300 |
| SX4-250X | 250±20% | 700 | 3 | 5 | 150 | 1 | 0.5 | 300 |
| SX4-300X | 300±20% | 700 | 3 | 5 | 150 | 1 | 0.5 | 300 |
| SX4-350X | 350±20% | 800 | 3 | 5 | 150 | 1 | 0.5 | 300 |
| SX4-400X | 400±20% | 800 | 3 | 5 | 150 | 1 | 0.5 | 300 |
| SX4-470X | 470±20% | 900 | 3 | 5 | 150 | 1 | 0.5 | 300 |
| SX4-600X | 600±20% | 1000 | 3 | 5 | 150 | 1 | 0.5 | 300 |
| SX4-800X | 800±20% | 1400 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| SX4-102X | 1000±20% | 1600 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| SX4-122X | 1200±20% | 1800 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| SX4-142X | 1400±20% | 1800 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| SX4-152X | 1500±20% | 2100 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| SX4-162X | 1600±20% | 2100 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| SX4-182X | 1800±20% | 2600 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| SX4-202X | 1800±20% | 2600 | 2 | 3 | 150 | 1 | 0.5 | 100 |
| DC Spark-over Voltage | DC Measuring Voltage |
| 70-90V | 50V |
| 120-400V | 100V |
| 470-800V | 250V |
| 1000V | 500V |
Packaging Taping
Quantity: 900pcs per reel (13”)
Warehouse Storage Conditions of Products
Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight.
· Period of Storage: 1 year
