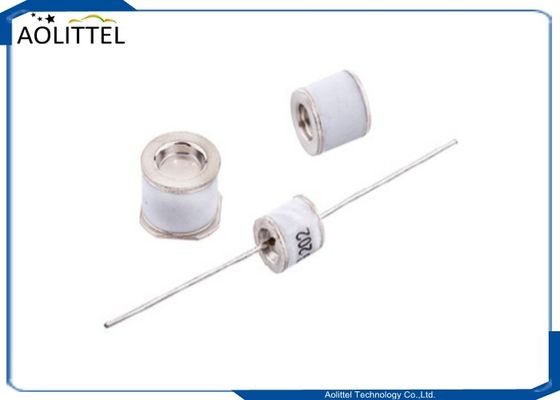

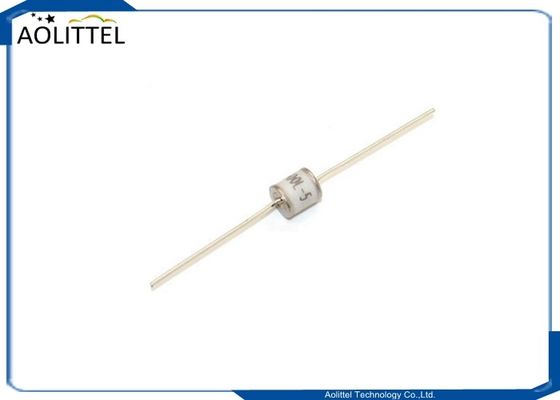

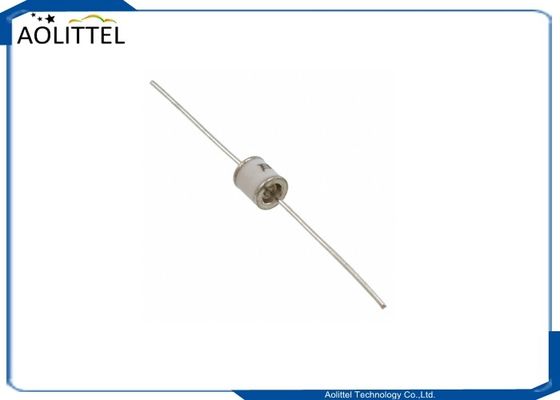

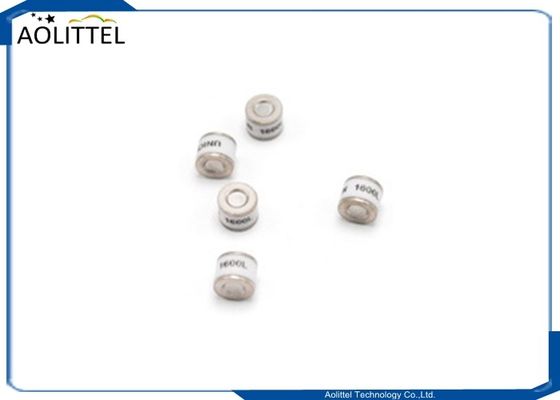

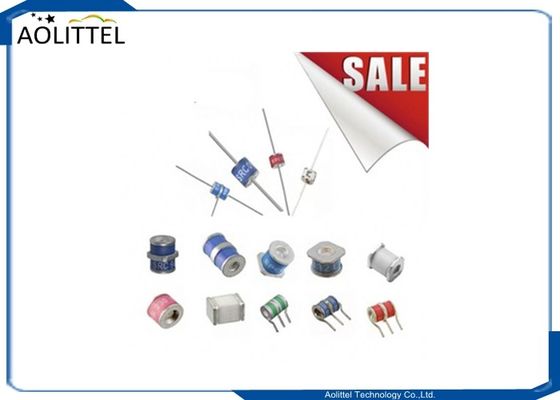

5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
Features
Provide ultra-fast response to surge voltage from slow-rising surge of 100V/s to rapid-rising surge of 10KV/µs.
Stable breakdown voltage.
High insulation resistance.
Low capacitance (<2pF).
High holdover voltage.
Large absorbing transient current capability.
Specification
| Part Number(No.) | DC BreakDown Voltage(V) | 1KV/μs (V) |
8/20μs (10 time) (KA) |
AC50Hz 1sec(A) | Insulation Resistance (GΩ) | Capacitance 1MHz(PF) |
Impulse Life(10/1000μs) @100A |
| SGH81-600X | 510～690 | 1100 | 5 | 10 | 10 | 1.5 | 500 |
| SGH81-800X | 680～920 | 1200 | 5 | 10 | 10 | 1.5 | 500 |
| SGH81-102X | 800～1200 | 1400 | 5 | 10 | 10 | 1.5 | 300 |
| SGH81-142X | 1120～1680 | 2200 | 5 | 2.5 | 10 | 1.5 | 10 |
| SGH81-162X | 1280～1920 | 2400 | 5 | 2.5 | 10 | 1.5 | 10 |
| SGH81-202X | 1600～2400 | 2800 | 5 | 2.5 | 10 | 1.5 | 10 |
| SGH81-252X | 2000～3000 | 3600 | 5 | 2.5 | 10 | 1.5 | 10 |
| SGH81-272X | 2160～3240 | 3800 | 5 | 2.5 | 10 | 1.5 | 300 |
| SGH81-302X | 2400～3600 | 4200 | 5 | 2.5 | 10 | 1.5 | 10 |
Recommended Application
Repeaters, Modems.
Telephone Interface, Line cards.
Data communication equipment.
Line test equipment.
DIMENSIONS
Description
Aolittel highly reliable SGH8 Series GDTs provide a high degree of surge protection in a small size ideal for board level circuit protection. GDTs function as switches which dissipate a minimum amount of energy and therefore handle currents that far surpass other types of transient voltage protection. Their gas-filled, rugged ceramic metal construction make them well suited to adverse environments. The SGH8 series comes in a variety of forms including surface mount, core, straight and shaped leads, to serve a variety of mounting methods. The SGH8 Series (75V-110V) is ideal for protection of test and communication equipment and other devices in which low voltage limits and extremely low arc voltages are required. The SGH8 Series (145V-1000V) is ideal for protecting equipment where higher voltage limits and holdover voltages are necessary.
Agency Approvals
* Non-Radioactive
* RoHS Compliant
* Fast breakdown-time
* Very high switch speed when switch voltage achieved, High di/dt allows for optimum performance of ignition transformers.
* Long service life
Cautions and warnings
* Switching spark gaps may be used only within their specified values.
* Damaged switching spark gaps must not be re-used.
