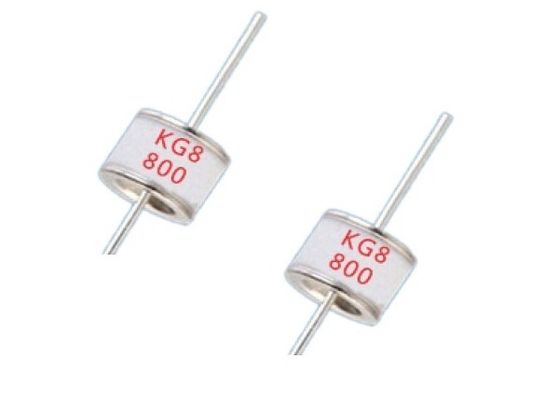

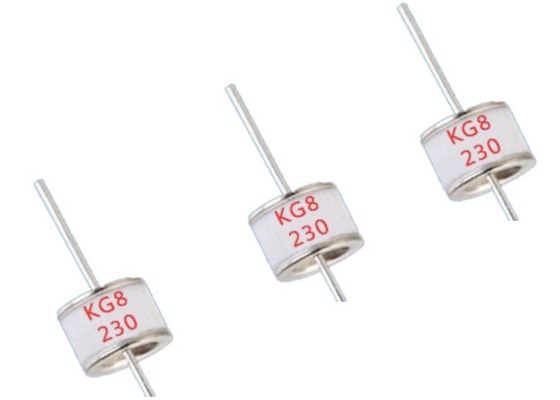

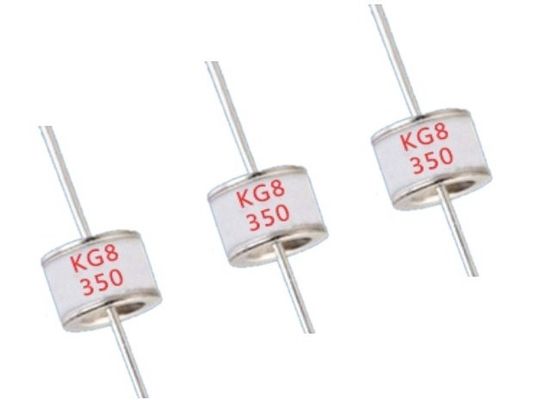

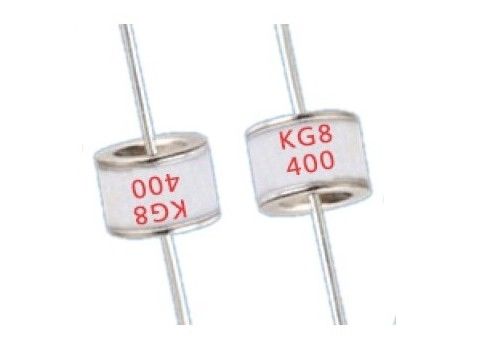

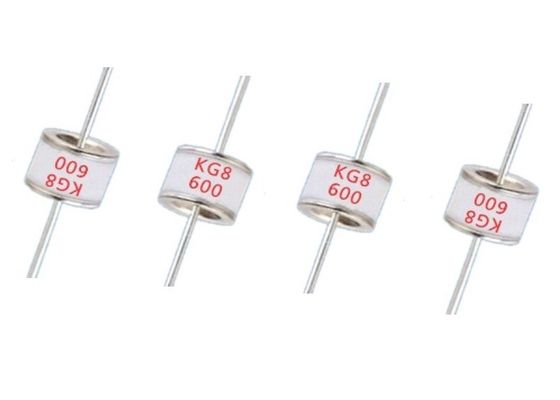

KG8 Series GDT Leaded 8x6mm 2 Electrode Switching Spark Gaps SSG 110V-800V Surge Arrestors Ignition Of HID Lamps
Features
Extremely long life time
Stable performance over life
Insensitive performance against variations in temperature
Extremely low switching losses
Very short breakdown time
High reliability by robust design
RoHS compatible
Dimensional drawing (Dimensions in mm )
Application
Ignition of HID lamps
Electrical Performances
| KG8 110L | 110±(20%) | 1000000 | ～300 | 70 | ≥1 | <1.3 | ≤50 |
| KG8 150L | 150±(15%) | 1000000 | ～300 | 30 | ≥1 | <1.3 | ≤50 |
| KG8 230L | 230±(15%) | 1000000 | ～300 | 20 | ≥1 | <1.3 | ≤50 |
| KG8 300L | 300±(12%) | 400000 | ～500 | 130 | ≥1 | <1.3 | ≤50 |
| KG8 350L- | 320±(12%) | 400000 | ～500 | 150 | ≥1 | <1.3 | ≤50 |
| KG8 350L | 350±(10%) | 400000 | ～500 | 150 | ≥1 | <1.3 | ≤50 |
| KG8 350L+ | 370±(10%) | 400000 | ～500 | 140 | ≥1 | <1.3 | ≤50 |
| KG8 400L | 400±(10%) | 400000 | ～500 | 130 | ≥1 | <1.3 | ≤50 |
| KG8 450L | 450±(10%) | 300000 | ～500 | 120 | ≥1 | <1.3 | ≤50 |
| KG8 500L | 500±(10%) | 300000 | ～400 | 170 | ≥1 | <1.3 | ≤50 |
| KG8 600L- | 560±(10%) | 300000 | ～400 | 140 | ≥1 | <1.3 | ≤50 |
| KG8 600L | 600±(10%) | 300000 | ～400 | 210 | ≥1 | <1.3 | ≤50 |
| KG8 800L- | 730±(10%) | 300000 | ～400 | 130 | ≥1 | <1.3 | ≤50 |
| KG8 800L | 800±(10%) | 300000 | ～400 | 120 | ≥1 | <1.3 | ≤50 |
Description
Switching Spark Gaps (SSG) are active components that work reliably even after igniting thousands of times. Switching Spark Gaps utilize the advantages of arc discharge principle: The enormous speed at which the arc is formed (<50 ns) as well as the high current capability allow the generation of short pulses of 10µs pulses with extremely high current or voltage rise times and low power loss. They can be used in all applications where high voltage pulses must be generated such as for the ignition of HID xenon lamps in automotive headlights.
Cautions and warnings
Switching spark gaps may be used only within their specified values.
Damaged switching spark gaps must not be re-used.
Figures
Fig. 1: QC- test circuit (100% outgoing inspection)
DUT device under test
ICU ignition control unit (sensitivity 10...30 uA)
Discharge current 10...20 mA
Fig. 2: Explanation of measurands
dVS/dt ~ dVN/dt
Fig. 3: QC- test circuit (sampling inspection at 25
KB PD AB E / KB PD AB PM
Fig. 4: Explanation of measurands
