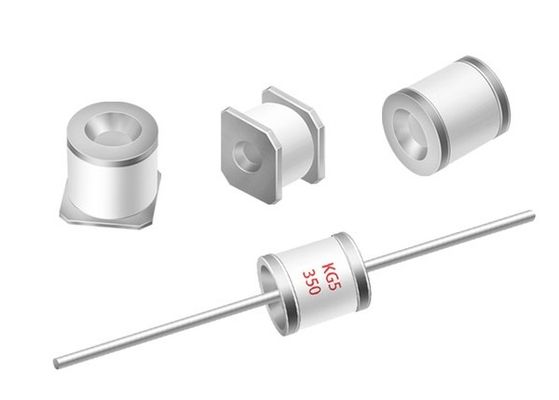

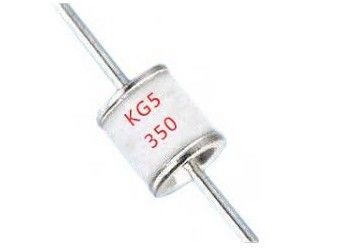

Less Than 50ns KG5 2R350L Switching Spark Gap 350V 15% 6x5.5mm Axial Leaded GDT Gas Discharge Tube
About us- Aolittel
Aolittel Technology Co.,Ltd., located in Dongguan- World manufacturing base,mainly engaged in electronic components sales business. Supply mainly to the spot quality assurance the price advantage is obvious.
Company has always been adhering to the "truth-seeking innovation integrity-based" business philosophy. With the high quality products reasonable price timely delivery and thoughtful service won the recognition and trust of customers and in the fierce competition in the market continue to expand sales network. Talent shows itself has already spread all over the country the the products have been widely used in many industries and fields. The products are mainly engaged in the dry reed pipe lightning protection tube
discharge tube fuse self recovery fuse varistor thermistor Matsushita Fala capacitor Murata EMI filter
transient diode against overcurrent and overvoltage protection device.
We will "innovation" as a strategic approach to development pay close attention to the development trend of electronic components to seek common development with you forever hand in hand make a contribution to the development of science and technology and the prosperity of the electronics industry!
Specification
Gas Discharge Tubes (GDTs) are used to protect personnel and sensitive equipment from hazardous transient voltages.
| Part Number | DC Spark-over Voltage(deviation) | Ignition switch time | Switching frequency(HZ) | Insulation resistance(GΩ) | Capacitance(PF) | Breakdown time(ns) |
| KG5 2R350L | 350±15% | 80000 | 150 | ≥1 | <1 | ≤50 |
Test Circuit
Note: On this line, the test sample is tested 10,000 times and divided into 10 test records, and 40,000 times
and 10 test records are again tested (the deviation between the lowest discharge voltage and the highest
discharge voltage).
Dimension (mm)
Approvals
ROHS
VDE
NOA QUALITY SYSTEM
UL
REACH
Features
* Standard size
* Very high current rating
* Fast response time
* Stable performance over life
* Very low capacitance
* High insulation resistance
* RoHS-compatible
Application
► Tower mounted amplifier
► Consumer electronic
► Alarm systems
Cautions and warnings
¡ Do not operate surge arresters in power supply networks, whose maximum operating voltage
exceeds the minimum spark-over voltage of the surge arresters.
¡ Surge arresters may become hot in the event of longer periods of current stress (burn risk). In the
event of overload the connectors may fail or the component may be destroyed.
¡ If the contacts of the surge arresters are defective, current load can cause sparks and loud
noises.
¡ Surge arresters must be handled with care and must not be dropped.
¡ Do not continue to use damaged surge arresters.
