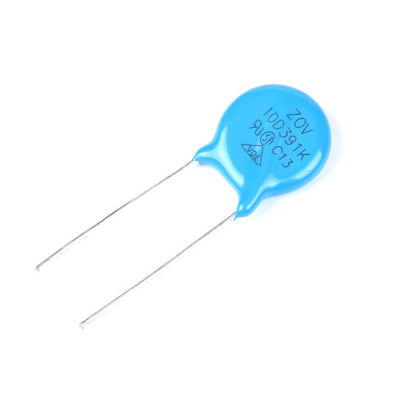

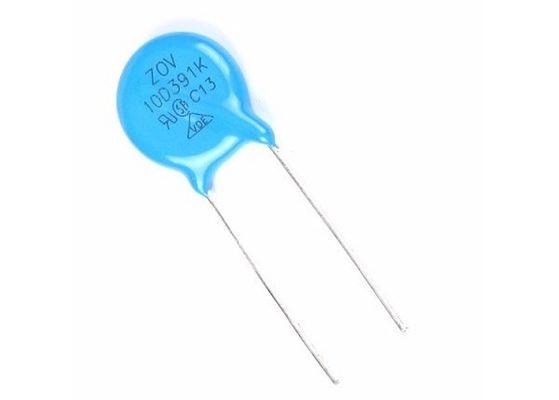

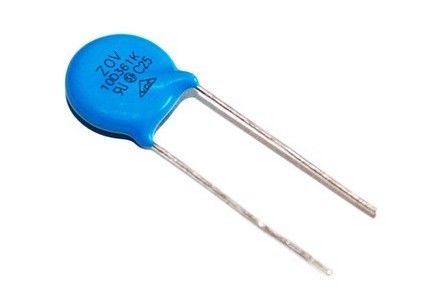

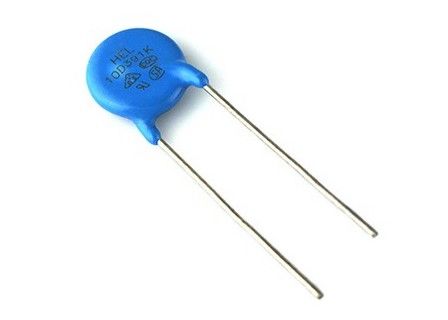

Customs Number 85334090 CNR TVS Metal Oxide Varistor Block 10D391K With Pitch 7.5mm 10mm 250VAC 320VDC For Power Supply
Description
The MOV-10DxxxK Series of 10 mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 820 V and Vrms voltages from 11 V to 510 V.
The devices have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits.
| Part Number | Vac(V) | Vdc(V) | V1mA(V) | Ip(A) | Vc(V) | I(A) | I(A) | (J) | (J) | Rated | C@1KHz |
| 10D180K(J) | 11 | 14 | 18(15-21.6) | 5 | 36 | 500 | 1000 | 2.1 | 3.0 | 0.05 | 5600 |
| 10D220K(J) | 14 | 18 | 22(19.5-26) | 5 | 43 | 500 | 1000 | 2.5 | 5.0 | 0.05 | 4500 |
| 10D270K(J) | 17 | 22 | 27(14-31) | 5 | 53 | 500 | 1000 | 3.0 | 6.0 | 0.05 | 3700 |
| 10D330K(J) | 20 | 26 | 33(29.5-36.5) | 5 | 65 | 500 | 1000 | 4.0 | 7.0 | 0.05 | 3000 |
| 10D390K(J) | 25 | 31 | 39(35-43) | 5 | 77 | 500 | 1000 | 4.6 | 9.0 | 0.05 | 2400 |
| 10D470K(J) | 30 | 38 | 47(42-52) | 5 | 93 | 500 | 1000 | 5.5 | 11 | 0.05 | 2100 |
| 10D560K(J) | 35 | 45 | 56(50-62) | 5 | 110 | 500 | 1000 | 7.0 | 13 | 0.05 | 1800 |
| 10D680K(J) | 40 | 56 | 68(61-75) | 5 | 135 | 500 | 1000 | 8.2 | 15 | 0.05 | 1500 |
| 10D820K(J) | 50 | 65 | 82(74-90) | 25 | 135 | 2500 | 3500 | 12 | 17 | 0.4 | 1200 |
| 10D101K(J) | 60 | 85 | 100(90-110) | 25 | 165 | 2500 | 3500 | 15 | 18 | 0.4 | 1000 |
| 10D121K(J) | 75 | 100 | 120(108-132) | 25 | 200 | 2500 | 3500 | 18 | 21 | 0.4 | 830 |
| 10D151K(J) | 95 | 125 | 150(135-165) | 25 | 250 | 2500 | 3500 | 22 | 25 | 0.4 | 670 |
| 10D181K(J) | 115 | 150 | 180(162-198) | 25 | 300 | 2500 | 3500 | 27 | 30 | 0.4 | 560 |
| 10D201K(J) | 130 | 170 | 200(180-220) | 25 | 340 | 2500 | 3500 | 30 | 35 | 0.4 | 500 |
| 10D221K(J) | 140 | 180 | 220(198-242) | 25 | 360 | 2500 | 3500 | 32 | 39 | 0.4 | 450 |
| 10D241K(J) | 150 | 200 | 240(216-264) | 25 | 395 | 2500 | 3500 | 35 | 42 | 0.4 | 420 |
| 10D271K(J) | 175 | 225 | 270(243-297) | 25 | 455 | 2500 | 3500 | 37 | 49 | 0.4 | 370 |
| 10D301K(J) | 190 | 250 | 300(270-330) | 25 | 500 | 2500 | 3500 | 40 | 54 | 0.4 | 330 |
| 10D331K(J) | 210 | 275 | 330(297-363) | 25 | 550 | 2500 | 3500 | 43 | 58 | 0.4 | 300 |
| 10D361K(J) | 230 | 300 | 360(324-396) | 25 | 595 | 2500 | 3500 | 47 | 65 | 0.4 | 280 |
| 10D391K(J) | 250 | 320 | 390(351-429) | 25 | 650 | 2500 | 3500 | 60 | 70 | 0.4 | 260 |
| 10D431K(J) | 275 | 350 | 430(387-473) | 25 | 710 | 2500 | 3500 | 65 | 80 | 0.4 | 230 |
| 10D471K(J) | 300 | 385 | 470(423-517) | 25 | 775 | 2500 | 3500 | 67 | 85 | 0.4 | 210 |
| 10D511K(J) | 320 | 415 | 510(459-561) | 25 | 845 | 2500 | 3500 | 69 | 90 | 0.4 | 200 |
| 10D561K(J) | 350 | 460 | 560(504-616) | 25 | 925 | 2500 | 3500 | 70 | 92 | 0.4 | 180 |
| 10D621K(J) | 385 | 505 | 620(558-682) | 25 | 1025 | 2500 | 3500 | 72 | 95 | 0.4 | 160 |
| 10D681K(J) | 420 | 560 | 680(612-748) | 25 | 1120 | 2500 | 3500 | 75 | 98 | 0.4 | 150 |
| 10D751K(J) | 460 | 615 | 750(675-825) | 25 | 1240 | 2500 | 3500 | 77 | 100 | 0.4 | 130 |
| 10D781K(J) | 485 | 640 | 780(702-858) | 25 | 1290 | 2500 | 3500 | 80 | 105 | 0.4 | 130 |
| 10D821K(J) | 510 | 670 | 820(738-902) | 25 | 1355 | 2500 | 3500 | 85 | 110 | 0.4 | 120 |
| 10D911K(J) | 550 | 745 | 910(819-1001) | 25 | 1500 | 2500 | 3500 | 93 | 130 | 0.4 | 110 |
| 10D102K(J) | 625 | 825 | 1000(900-1100) | 25 | 1650 | 2500 | 3500 | 102 | 140 | 0.4 | 100 |
| 10D112K(J) | 680 | 895 | 1100(990-1210) | 25 | 1815 | 2500 | 3500 | 115 | 155 | 0.4 | 90 |
Dmax | 13 |
Hmax | 15 |
Lmin | 25 |
A±1 | 7.5 |
±0.02 | 0.8 |
Thickness
180K--680K | 5.0 | 621K--681K | 7.0 |
820K--201K | 5.0 | 751K--821K | 7.5 |
221K--331K | 5.5 | 102K--122K | 8.0 |
361K--471K | 6.0 | 142K--162K | 10 |
511K--561K | 6.5 | 182K | 12 |
