3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A

UL cUL Listed 3AB 3AG 6.3x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A

Description

The 6.250MFC Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Features

In accordance with UL Standard 248-14

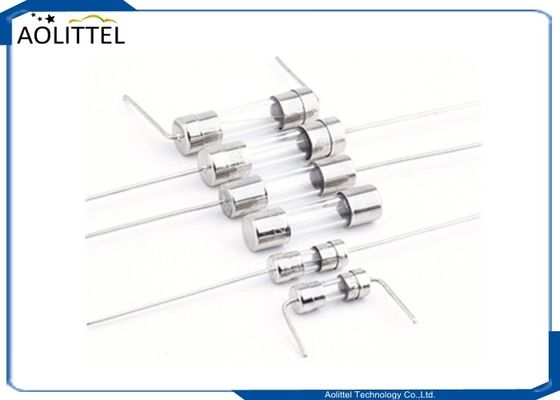

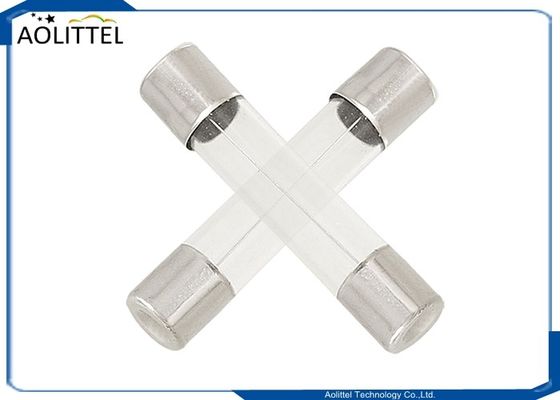

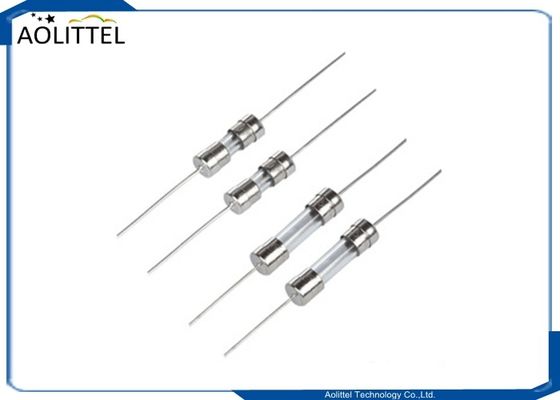

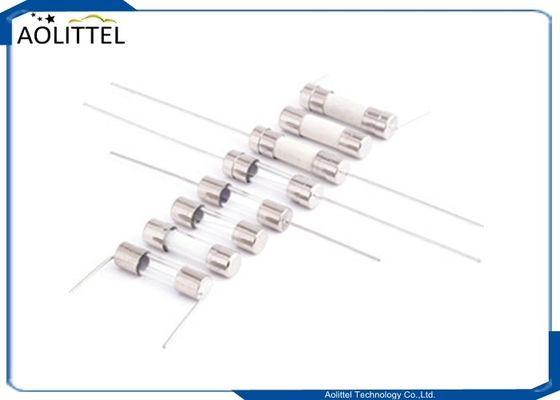

Available in cartridge and axial lead format and with various forming dimensions
RoHS compliant and Lead-free

Certifications

Specification

A Means 250V ; B means 125V .

Dimension and Material

Unit:mm

Operating Characteristics

Interrupting Rating

Breaking Capacity:

10000A at125 V AC (6.250MFC In range 100mA~10A);

35A at 250V AC (6.250MFC In range 100mA~1A);

100A at 250V AC (6.250MFC In range 1.25A~3.5A);

200A at 250V AC (6.250MFC In range 4A~10A).

Recommended Soldering Parameters

A Wave Parameters:

   Solder Pot Temperature: 260℃ Max

   Solder Dwell Time: 2~5s

B Hand-Solder Parameters:

   Solder Iron Temperature: 350±5℃

   Heating Time: 5s Max

Packing Quantity

Bulk 200 pcs in per poly bag;10 poly bags in per inner box;4 inner boxes in per outer carton

Box: L240±2 * W170±2 * H110±2mm

Outer carton : L390±5 * W240±5 * H250±5mm
