Name: Low Breaking Capacity AC 250V 3.15A 4x11mm Fast-blow Acting Axial Lead Glass Fuse Tube With UL cUL VDE CQC Approved
Brand: AOLITTEL
SKU: FBP1315A
Rating: 5 (112 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Glass Tube Fuse

Dimension: 4x11mm

Body: Glass Tube

Fuse Element: Alloy

MPQ: 500PCS/Polybag

Ratings: 3.15A 250VAC/125VAC

Blown Type: Fast-acting

Leaded: Yes Or No

Highlight:

small glass fuses

mini glass fuse

Basic Infomation

Brand Name: AOLITTEL

Model Number: FBP1315A

Payment & Shipping Terms

Packaging Details: Bulk,5.5g/pcs,20Kpcs per outer carton.

Delivery Time: 7 days

Payment Terms: T/T

Supply Ability: 10,000,000 Pieces Per Month

Gallery

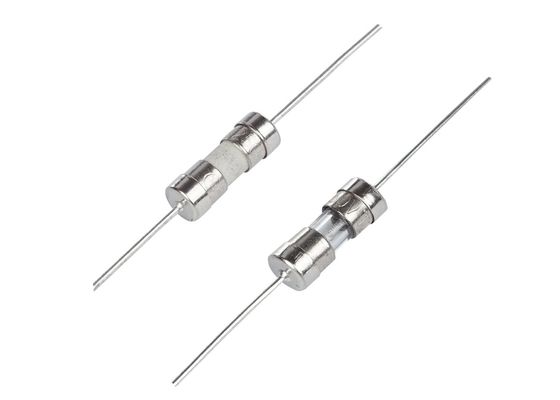

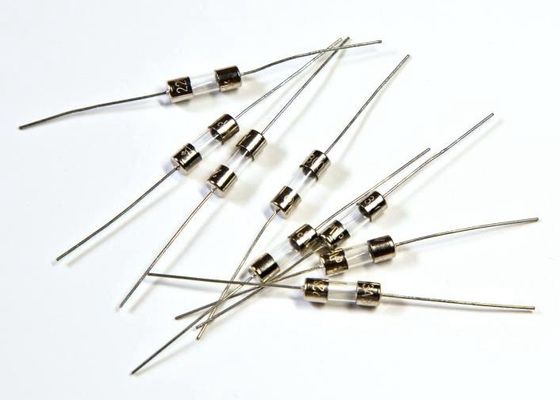

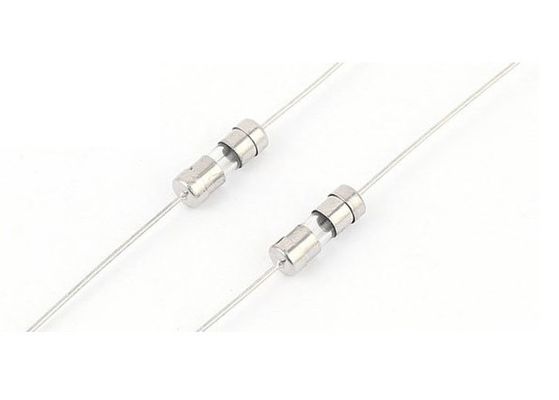

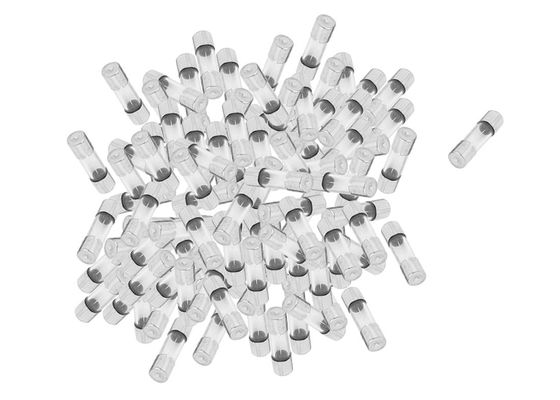

Low Breaking Capacity AC 250V 3.15A 4x11mm Fast-blow Acting Axial Lead Glass Fuse Tube With UL cUL VDE CQC Approved

Product Description

Low Breaking Capacity AC 250V 3.15A 4x11mm Fast-blow Acting Axial Lead Glass Fuse Tube With UL cUL VDE CQC Approved

Quick details

Glass fuses are commonly used in household appliances, such as refrigerators and stoves.

Product Name	Glass Tube Fuse
P/N	FBP1315A
Rated Voltage	AC250V
Current Rating	3.15A
Function	Fast Blow
Body Size	11 x 4mm/ 0.4" x 0.15" (L*D)
Unit weight	5.5gram
Color	Clear,Siliver Tone
Mateiral	Glass,Alloy
Package	Bulk,500/Bag,5000/box,20000pcs/carton

___________________________________________________________ Download________

Blown Features

% of Ampere Rating(In)	Blowing Time
210%* In	30 min Max
275%* In	10 ms~3 s
400%* In	3 ms~300 ms

Specifications

Catalog No.	Ampere Rating	Voltage Rating	Max Voltage Drop (mv)	I²TMelting Integral(A².S)	Agency Approvals
Catalog No.	Ampere Rating	Voltage Rating	Max Voltage Drop (mv)	I²TMelting Integral(A².S)	UL	VDE	CQC	PSE	KC
FBP0250A	250mA	250V	440	0.02	●	○	○	○	○
FBP0315A	315mA	250V	400	0.03	●	○	○	○	○
FBP0400A	400mA	250V	370	0.05	●	○	○	○	○
FBP0500A	500mA	250V	350	0.20	●	○	○	○	○
FBP0630A	630mA	250V	320	0.3	●	○	○	○	○
FBP0800A	800mA	250V	300	0.7	●	○	○	○	○
FBP1100A	1A	250V	280	0.8	●	●	●	○	○
FBP1125A	1.25A	250V	280	2.4	●	○	○	○	○
FBP1160A	1.6A	250V	250	3.5	●	○	○	○	○
FBP1200A	2A	250V	240	3.9	●	●	●	○	○
FBP1250A	2.5A	250V	200	4.7	●	○	○	○	○
FBP1315A	3.15A	250V	180	10.8	●	●	●	○	○
FBP1400A	4A	250V	180	13.9	●	○	○	○	○
FBP1500A	5A	250V	150	25.4	●	○	○	○	○
FBP1630A	6.3A	250V	145	26.4	●	○	○	○	○

*Pls contact us for furthermore info ,customized is available.

How to Identify a Glass Fuse

Replace blown fuses with the correct size and type of fuse. Glass fuses are one of many types of fuses available on the market. The most common types of glass fuses are slow-blow fuses and fast-acting fuses. Slow-blow fuses handle a heavy power load for a short time. Fast-acting fuses blow quickly to open the electrical current. Household appliances commonly use glass fuses.

Low Breaking Capacity AC 250V 3.15A 4x11mm Fast-blow Acting Axial Lead Glass Fuse Tube With UL cUL VDE CQC Approved 1

Step 1

Examine the ends of the glass fuse where the metal seals the tube.

Step 2

Use a magnifying glass, if necessary, to make the small printed numbers and letters on the fuses easier to read. The writing can be difficult to read without the assistance of a handheld magnifying glass.

Step 3

Read the markings from left to right. The printed code at one end of the fuse has a number followed by two letters. The voltage ranking of the fuse is printed on the other end.

Step 4

Determine if the letters say AG between the numbers at the one end of the fuse tube. AG is the code that signifies a glass fuse. The voltage rating of the fuse will be printed on the opposite end of the fuse. Ensure you are replacing the glass fuse with one that has the same glass rating. Failure to do so could result in serious damage.
