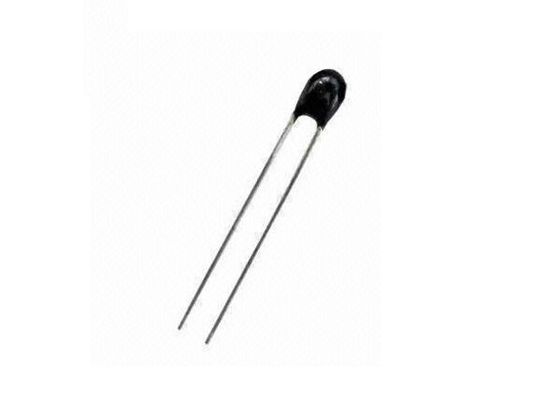

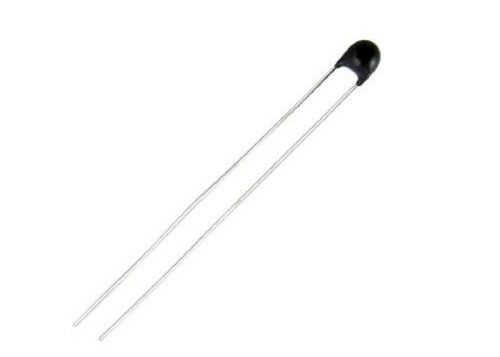

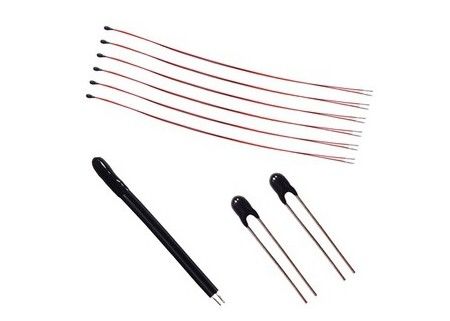

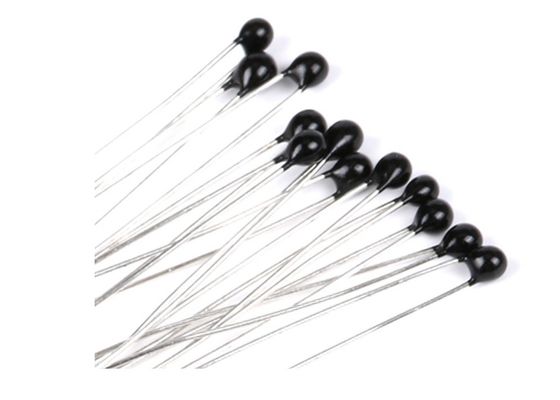

Interchangeable Precision Radial Epoxy Coated Thermometrics NTC Thermistor 2.7KOhm 3950 For Car Automotive Electronics
Short Describ
Epoxy Encapsulated Precision Interchangeable NTC Thermistor utilizing high stability pressed-disk ceramic sensor for general applications.
______________________________________________________________________________
Download________
Features
• Advanced NTC technology
• Temperature range from -55 °C to +125 °C
• Highly resistant to thermal shocks
• Small body diameter of max. 2.5 mm
• AEC-Q200 qualified
• Fast response time
• High sensitivity
• Delivery in bulk or in tape with extra long leads (for automatic mounting)
• Thermally Conductive Epoxy Coating for good mechanical strength and resistance to solvents
• Non-condensing Moisture Environments
• RoHS Compliance
• 2,700 ohm Resistance @ 25°C
• Interchangeable ±0.2°C, 0°C to 70°C
• Pressed Disk Ceramic Sensor
Application
Temperature sensing, control and compensation.E.g. inlet air temperature sensing thermistors or ECT in
automotive applications, sensor elements in industrial and commercial applications, heating systems and industrial systems.
High-range Temperature Applications
Tight Tolerance Instrumentation
General Applications Requiring Stability
Applications Requiring Sensing Small Changes in Temperature
Non-condensing Moisture Environments
Allows use in Applications World-wide
Automotive engine management
Air conditioning
Medical
Clinical thermometers
Blood analysis
Dimension (mm)
|
A
|
B
|
C
|
D
|
L
|
|
Max 2.5
|
Max 4.0
|
1.7±.5
|
0.3±0.05
|
25±1
|
|
Max 3
|
Max 4.5
|
2.2±.5
|
0.45±0.05
|
25±1
|
Materials
|
NO
|
Material Name
|
Item/PN
|
|
E.
|
Element
|
R25=2.7KΩ±1% B25/50=3950±1%
|
|
B
|
Coating
|
Epoxy resin
|
|
D.
|
Lead Wire
|
CP Wire
|
Performances
|
NO
|
Item
|
Sign
|
Test Conditions
|
Min.
|
Normal value
|
Max.
|
Unit
|
|
1.
|
Resistance at 25℃
|
R25
|
Ta=25±0.05℃
PT≦0.1mw
|
2.673
|
2.7
|
2.727
|
kΩ
|
|
2.
|
B Value
|
B25/50
|
|
3910.5
|
3950
|
3989.5
|
k
|
|
3.
|
Dissipation factor
|
σ
|
In still air
|
≥2
|
mw/℃
|
|
4.
|
Time constant
|
τ
|
In still air
|
≤7
|
sec
|
|
5.
|
Operating temp.range
|
/
|
/
|
-55
|
/
|
+125
|
℃
|
|
6
|
Insulation resistance
|
/
|
100V DC 1min
|
≥100
|
MΩ
|
|
7.
|
Maximum rated power
|
Pmax
|
/
|
≤50
|
mW
|
MOUNTING
The thermistors are suitable for all standard assembly processes like crimping, soldering, welding. The parameters of the assembly process should be chosen in accordance with the lead-wire material (tinned nickel) and validated in application. The mounting process should be in compliance with the following guidelines and recommendations:
• Peeling forces on the leads should be reduced to a minimum and should never exceed 3 N
• Avoid large temperature gradients between the welding region and the sensor
PACKAGING
• Bulk components are delivered in boxes of 500 components
Resistance Vs. Temperature Chart
|
R－T CONVERSION TABLE
|
|
R25=2.7KΩ±1% B25/50=3950K±1%
|
|
T/℃
|
Rmax
|
Rcen
|
Rmin
|
T/℃
|
Rmax
|
Rcen
|
Rmin
|
|
-55
|
211.966
|
223.777
|
236.223
|
-18
|
21.618
|
22.303
|
23.006
|
|
-54
|
197.640
|
208.505
|
219.946
|
-17
|
20.470
|
21.106
|
21.760
|
|
-53
|
184.388
|
194.389
|
204.911
|
-16
|
19.389
|
19.981
|
20.588
|
|
-52
|
172.123
|
181.332
|
191.014
|
-15
|
18.371
|
18.921
|
19.486
|
|
-51
|
160.761
|
169.246
|
178.160
|
-14
|
17.411
|
17.923
|
18.448
|
|
-50
|
150.230
|
158.051
|
166.262
|
-13
|
16.507
|
16.983
|
17.471
|
|
-49
|
140.463
|
147.675
|
155.242
|
-12
|
15.654
|
16.097
|
16.551
|
|
-48
|
131.398
|
138.052
|
145.027
|
-11
|
14.850
|
15.262
|
15.684
|
|
-47
|
122.980
|
129.121
|
135.555
|
-10
|
14.092
|
14.475
|
14.867
|
|
-46
|
115.158
|
120.828
|
126.764
|
-9
|
13.376
|
13.732
|
14.097
|
|
-45
|
107.885
|
113.122
|
118.602
|
-8
|
12.700
|
13.032
|
13.371
|
|
-44
|
101.119
|
105.958
|
111.018
|
-7
|
12.062
|
12.371
|
12.686
|
|
-43
|
94.821
|
99.294
|
103.968
|
-6
|
11.459
|
11.746
|
12.040
|
|
-42
|
88.955
|
93.092
|
97.411
|
-5
|
10.890
|
11.157
|
11.429
|
|
-41
|
83.489
|
87.316
|
91.309
|
-4
|
10.351
|
10.600
|
10.853
|
|
-40
|
78.393
|
81.934
|
85.626
|
-3
|
9.843
|
10.074
|
10.309
|
|
-39
|
73.640
|
76.918
|
80.333
|
-2
|
9.361
|
9.576
|
9.795
|
|
-38
|
69.204
|
72.239
|
75.399
|
-1
|
8.906
|
9.106
|
9.310
|
|
-37
|
65.062
|
67.873
|
70.798
|
0
|
8.475
|
8.662
|
8.851
|
|
-36
|
61.193
|
63.797
|
66.505
|
1
|
8.068
|
8.241
|
8.417
|
|
-35
|
57.577
|
59.990
|
62.498
|
2
|
7.682
|
7.843
|
8.006
|
|
-34
|
54.195
|
56.433
|
58.756
|
3
|
7.316
|
7.466
|
7.618
|
|
-33
|
51.033
|
53.107
|
55.260
|
4
|
6.970
|
7.109
|
7.250
|
|
-32
|
48.073
|
49.996
|
51.992
|
5
|
6.642
|
6.771
|
6.902
|
|
-31
|
45.301
|
47.086
|
48.936
|
6
|
6.331
|
6.451
|
6.573
|
|
-30
|
42.706
|
44.362
|
46.077
|
7
|
6.036
|
6.148
|
6.261
|
|
-29
|
40.274
|
41.810
|
43.402
|
8
|
5.757
|
5.860
|
5.965
|
|
-28
|
37.994
|
39.420
|
40.896
|
9
|
5.492
|
5.588
|
5.685
|
|
-27
|
35.855
|
37.180
|
38.550
|
10
|
5.243
|
5.333
|
5.423
|
|
-26
|
33.850
|
35.080
|
36.351
|
11
|
5.001
|
5.084
|
5.167
|
|
-25
|
31.967
|
33.110
|
34.289
|
12
|
4.775
|
4.851
|
4.928
|
|
-24
|
30.199
|
31.261
|
32.356
|
13
|
4.559
|
4.630
|
4.702
|
|
-23
|
28.539
|
29.526
|
30.543
|
14
|
4.355
|
4.421
|
4.487
|
|
-22
|
26.980
|
27.896
|
28.841
|
15
|
4.161
|
4.222
|
4.283
|
|
-21
|
25.513
|
26.365
|
27.243
|
16
|
3.976
|
4.032
|
4.089
|
|
-20
|
24.135
|
24.927
|
25.742
|
17
|
3.801
|
3.853
|
3.905
|
|
-19
|
22.838
|
23.574
|
24.332
|
18
|
3.634
|
3.682
|
3.730
|
|
R－T CONVERSION TABLE
|
|
R25=2.7KΩ±1% B25/50=3950K±1%
|
|
T/℃
|
Rmax
|
Rcen
|
Rmin
|
T/℃
|
Rmax
|
Rcen
|
Rmin
|
|
19
|
3.475
|
3.520
|
3.564
|
56
|
0.764
|
0.782
|
0.799
|
|
20
|
3.324
|
3.365
|
3.407
|
57
|
0.736
|
0.753
|
0.771
|
|
21
|
3.181
|
3.219
|
3.257
|
58
|
0.710
|
0.727
|
0.744
|
|
22
|
3.044
|
3.079
|
3.114
|
59
|
0.684
|
0.701
|
0.717
|
|
23
|
2.914
|
2.946
|
2.978
|
60
|
0.660
|
0.676
|
0.692
|
|
24
|
2.790
|
2.820
|
2.849
|
61
|
0.637
|
0.652
|
0.668
|
|
25
|
2.673
|
2.700
|
2.727
|
62
|
0.614
|
0.629
|
0.645
|
|
26
|
2.558
|
2.585
|
2.612
|
63
|
0.593
|
0.608
|
0.623
|
|
27
|
2.449
|
2.476
|
2.503
|
64
|
0.572
|
0.587
|
0.602
|
|
28
|
2.345
|
2.372
|
2.399
|
65
|
0.552
|
0.566
|
0.581
|
|
29
|
2.246
|
2.273
|
2.299
|
66
|
0.533
|
0.547
|
0.561
|
|
30
|
2.152
|
2.178
|
2.205
|
67
|
0.515
|
0.528
|
0.542
|
|
31
|
2.062
|
2.088
|
2.115
|
68
|
0.497
|
0.511
|
0.524
|
|
32
|
1.977
|
2.002
|
2.029
|
69
|
0.480
|
0.493
|
0.507
|
|
33
|
1.895
|
1.921
|
1.946
|
70
|
0.464
|
0.477
|
0.490
|
|
34
|
1.817
|
1.843
|
1.868
|
71
|
0.448
|
0.461
|
0.474
|
|
35
|
1.743
|
1.768
|
1.793
|
72
|
0.433
|
0.446
|
0.458
|
|
36
|
1.672
|
1.697
|
1.722
|
73
|
0.419
|
0.431
|
0.443
|
|
37
|
1.605
|
1.629
|
1.654
|
74
|
0.405
|
0.417
|
0.429
|
|
38
|
1.540
|
1.564
|
1.588
|
75
|
0.392
|
0.403
|
0.415
|
|
39
|
1.479
|
1.502
|
1.526
|
76
|
0.379
|
0.390
|
0.402
|
|
40
|
1.420
|
1.443
|
1.467
|
77
|
0.367
|
0.378
|
0.389
|
|
41
|
1.364
|
1.387
|
1.410
|
78
|
0.355
|
0.366
|
0.377
|
|
42
|
1.310
|
1.333
|
1.356
|
79
|
0.343
|
0.354
|
0.365
|
|
43
|
1.259
|
1.281
|
1.304
|
80
|
0.332
|
0.343
|
0.353
|
|
44
|
1.210
|
1.232
|
1.254
|
81
|
0.322
|
0.332
|
0.342
|
|
45
|
1.163
|
1.184
|
1.206
|
82
|
0.312
|
0.322
|
0.332
|
|
46
|
1.118
|
1.139
|
1.161
|
83
|
0.302
|
0.311
|
0.321
|
|
47
|
1.075
|
1.096
|
1.117
|
84
|
0.292
|
0.302
|
0.312
|
|
48
|
1.035
|
1.055
|
1.075
|
85
|
0.283
|
0.293
|
0.302
|
|
49
|
0.995
|
1.015
|
1.036
|
86
|
0.274
|
0.284
|
0.293
|
|
50
|
0.956
|
0.976
|
0.995
|
87
|
0.266
|
0.275
|
0.284
|
|
51
|
0.922
|
0.941
|
0.961
|
88
|
0.258
|
0.267
|
0.276
|
|
52
|
0.888
|
0.906
|
0.926
|
89
|
0.250
|
0.258
|
0.267
|
|
53
|
0.855
|
0.873
|
0.892
|
90
|
0.242
|
0.251
|
0.259
|
|
54
|
0.823
|
0.841
|
0.860
|
91
|
0.235
|
0.243
|
0.252
|
|
55
|
0.793
|
0.811
|
0.829
|
92
|
0.228
|
0.236
|
0.244
|
|
R－T CONVERSION TABLE
|
|
R25=2.7KΩ±1% B25/50=3950K±1%
|
|
T/℃
|
Rmax
|
Rcen
|
Rmin
|
T/℃
|
Rmax
|
Rcen
|
Rmin
|
|
93
|
0.221
|
0.229
|
0.237
|
|
|
|
|
|
94
|
0.215
|
0.222
|
0.230
|
|
|
|
|
|
95
|
0.208
|
0.216
|
0.224
|
|
|
|
|
|
96
|
0.202
|
0.210
|
0.217
|
|
|
|
|
|
97
|
0.196
|
0.203
|
0.211
|
|
|
|
|
|
98
|
0.191
|
0.198
|
0.205
|
|
|
|
|
|
99
|
0.185
|
0.192
|
0.199
|
|
|
|
|
|
100
|
0.180
|
0.187
|
0.193
|
|
|
|
|
|
101
|
0.175
|
0.181
|
0.188
|
|
|
|
|
|
102
|
0.170
|
0.176
|
0.183
|
|
|
|
|
|
103
|
0.165
|
0.171
|
0.178
|
|
|
|
|
|
104
|
0.160
|
0.166
|
0.173
|
|
|
|
|
|
105
|
0.156
|
0.162
|
0.168
|
|
|
|
|
|
106
|
0.151
|
0.157
|
0.164
|
|
|
|
|
|
107
|
0.147
|
0.153
|
0.159
|
|
|
|
|
|
108
|
0.143
|
0.149
|
0.155
|
|
|
|
|
|
109
|
0.139
|
0.145
|
0.151
|
|
|
|
|
|
110
|
0.135
|
0.141
|
0.147
|
|
|
|
|
|
111
|
0.132
|
0.137
|
0.143
|
|
|
|
|
|
112
|
0.128
|
0.133
|
0.139
|
|
|
|
|
|
113
|
0.125
|
0.130
|
0.135
|
|
|
|
|
|
114
|
0.121
|
0.127
|
0.132
|
|
|
|
|
|
115
|
0.118
|
0.123
|
0.128
|
|
|
|
|
|
116
|
0.115
|
0.120
|
0.125
|
|
|
|
|
|
117
|
0.112
|
0.117
|
0.122
|
|
|
|
|
|
118
|
0.109
|
0.114
|
0.119
|
|
|
|
|
|
119
|
0.106
|
0.111
|
0.116
|
|
|
|
|
|
120
|
0.104
|
0.108
|
0.113
|
|
|
|
|
|
121
|
0.101
|
0.105
|
0.110
|
|
|
|
|
|
122
|
0.098
|
0.103
|
0.107
|
|
|
|
|
|
123
|
0.096
|
0.100
|
0.104
|
|
|
|
|
|
124
|
0.093
|
0.098
|
0.102
|
|
|
|
|
|
125
|
0.091
|
0.095
|
0.099
|
|
|
|
|
