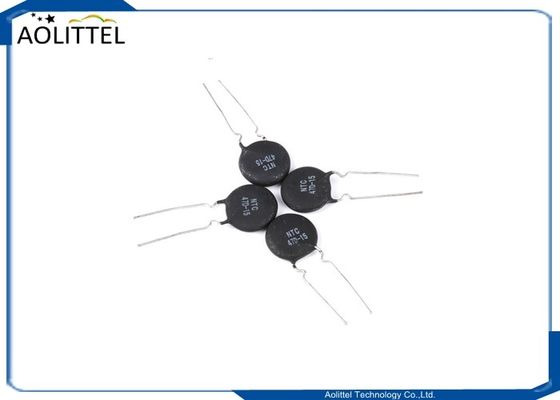

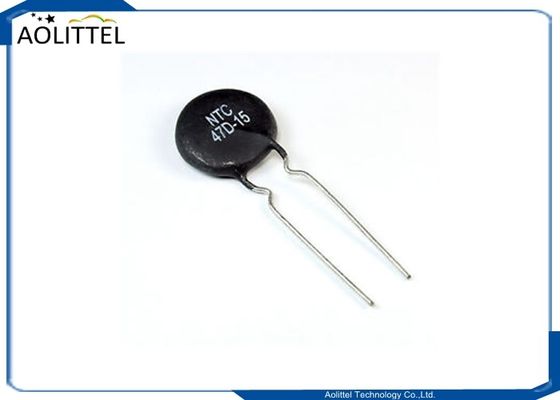

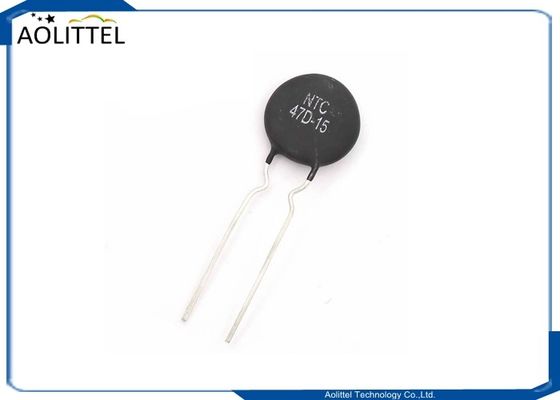

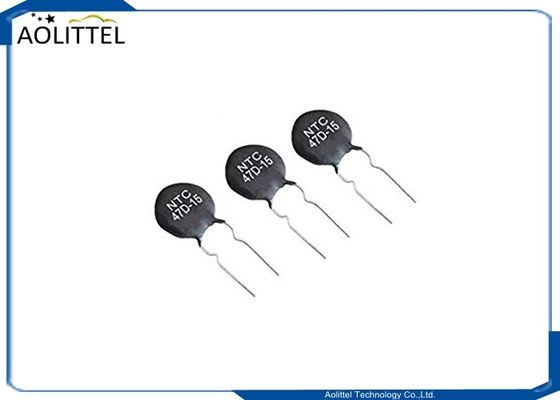

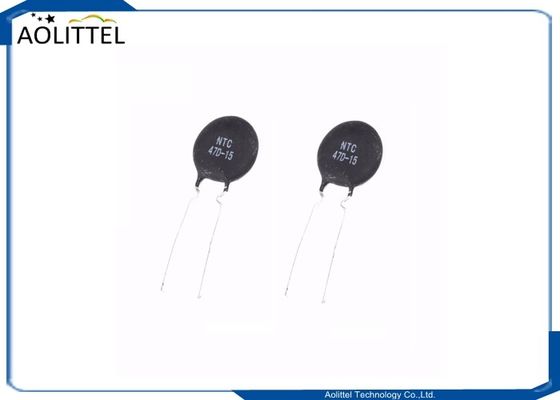

Disk NTC Thermistor Resistor NTC 47D-15 47D15 Thermal Resistor 47Ohm 15mm 3A Current Inrush Limited

1000PCS
MOQ
0.055~0.1USD/PC
Price
Disk NTC Thermistor Resistor NTC 47D-15 47D15 Thermal Resistor 47Ohm 15mm 3A Current Inrush Limited
Features Gallery Product Description Request A Quote
Features
Specifications
Name: NTC 47D-15
R25: 47 Ohm
Tolerance: -/+ 20%
Rated Power: 16mW
Thermal Time Constant: 84 Sec
Dissipation Factor: 25mW/C
High Light:

negative temperature coefficient thermistor

,

ntc thermistor sensor
Basic Infomation
Brand Name: AOLITTEL
Model Number: 47D-15
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 7-10 Workdays
Payment Terms: T/T, Western Union
Supply Ability: 100000000PCS/Month
Product Description





Disk NTC Thermistor Resistor NTC 47D-15 47D15 Thermal Resistor 47Ohm 15mm 3A Current Inrush Limited





General Introduction


When you turn on an electrical equipment, the surge current can be restrained by a power
NTC thermistor connected in series with the power circuit. Because of the continuing action
of current, temperature of power NTC thermistor raising, the resistance will rapidly drop to
a small value, so the consumed power can be ignored.Therefore, using power NTC thermistor
is a most effectively and most brief measure to restrain surge current,protecting electrical
equipment from destruction.

Disk NTC Thermistor Resistor NTC 47D-15 47D15 Thermal Resistor 47Ohm 15mm 3A Current Inrush Limited 0





Application


1.Conversion power-supply, switch power, ups power.
2.Electronic energy saving lamps, electronic ballast and all kinds of electric heater.
3.All kinds of RT, display.
4.Bulb and other lighting lamps.




Feature


1.Small size, strong power and strong capability of surge current protection.
2.Fast response to surge current.
3.Big material constant (B value), Small remain resistance.
4.Longevity of service, High reliability.
5. Integral series, extensive operating range.





Dimensions



Disk NTC Thermistor Resistor NTC 47D-15 47D15 Thermal Resistor 47Ohm 15mm 3A Current Inrush Limited 1



Model for Choice




Model		 D L F T d
Max Min ±1 Max ±0.06
D-5 6.5 25 5/2.5 5 0.6/0.45
D-7 8.5 25 5 5 0.6
D-9 10.5 25 7.5/5 5 0.8/0.6
D-11 12.5 25 7.5/5 5 0.8/0.6
D-13 14.5 25 7.5 6 0.8/0.6
D-15 16.5 25 10/7.5 6 0.8
D-20 22.5 25 10/7.5 7 1.0
D-25 26.5 25 10 8 1.0




Parameter



Model Rated R Max Steady State Current Residual R Power Dissipation Time Constant
(Ω) (A) (Ω) (mW/ºC) (S)
5D-5 5 1 0.318 9 18
10D-5 10 0.7 0.694 9 18
60D-5 60 0.5 1.690 9 17
200D-5 200 0.1 5.633 9 16
5D-7 5 2 0.255 14 27
8D-7 8 1 0.485 12 27
10D-7 10 1 0.554 12 28
12D-7 12 1 0.734 12 28
16D-7 16 0.7 0.903 12 28
22D-7 22 0.6 0.997 12 25
33D-7 33 0.5 1.337 13 26
200D-7 200 0.2 5.610 14 26
3D-9 3 4 0.108 15 28
4D-9 4 3 0171 15 28
5D-9 5 3 0.189 15 29
6D-9 6 2 0.194 15 28
8D-9 8 2 0.360 15 30
10D-9 10 2 0.412 15 30
12D-9 12 1 0.587 15 30
16D-9 16 1 0.722 15 31
20D-9 20 1 0.724 15 30
22D-9 22 1 0.855 15 30
30D-9 30 1 0.920 15 31
33D-9 33 1 1.012 15 31
50D-9 50 1 0.125 15 31
60D-9 60 0.8 0.352 15 30
80D-9 80 0.8 1.809 15 31
120D-9 120 0.8 2.714 15 30
200D-9 200 0.5 4.506 15 30
400D-9 400 0.2 8.868 15 30
2.5D-11 2.5 5 0.086 17 43
3D-11 3 5 0.900 17 45
4D-11 4 4 0.135 17 45
5DD-11 5 4 0.140 17 46
6D-11 6 3 0.216 17 46
8D-11 8 3 0.230 17 46
10D-11 10 3 0.248 17 46
12D-11 12 2 0.416 18 46
16D-11 16 2 0.423 18 47
Model Rated R Max Steady State Current Residual R Power Dissipation Time Constant
(Ω) (A) (Ω) (mW/ºC) (S)
20D-11 20 2 0.461 18 47
22D-11 22 2 0.507 19 48
30D-11 30 1.5 0.600 19 48
33D-11 33 1.5 0.661 19 48
50D-11 50 1.5 0.919 19 50
60D-11 60 1.5 1.094 19 50
80D-11 80 1.2 1.490 19 50
1.3D-13 1.3 7 0.056 18 60
1.5D-13 1.5 7 0.066 18 62
2.5D-13 2.5 6 0.079 18 62
3D-13 3 6 0.083 18 62
4D-13 4 5 0.108 20 63
5D-13 5 5 0.113 20 64
6D-13 6 4 0.153 20 64
7D-13 7 4 0.169 20 62
8D-13 8 4 0.175 20 62
10D-13 10 4 0.185 20 62
12D-13 12 3 0.284 21 63
15D-13 15 3 0.303 21 63
16D-13 16 3 0.304 21 62
20D-13 20 3 0.335 21 62
30D-13 30 2.5 0.465 21 62
47D-13 47 2 0.729 21 63
120D-13 120 1.5 1.912 21 63
Model Rated R Max Steady State Current Residual R Power Dissipation Time Constant
(Ω) (A) (Ω) (mW/ºC) (S)
1.3D-15 1.3 8 0.043 21 76
1.5D-15 1.5 8 0.067 25 76
3D-15 3 7 0.680 25 80
5D-15 5 6 0.101 25 81
6D-15 6 5 0.140 25 82
7D-15 7 5 0.156 25 82
8D-15 8 5 0.160 25 80
10D-15 10 5 0.162 25 78
12D-15 12 4 0.225 25 75
15D-15 15 4 0.234 25 83
16D-15 16 4 0.248 25 84
20D-15 20 4 0.259 25 83
30D-15 30 3.5 0.394 25 83
47D-15 47 3 0.612 25 84
120D-15 120 2.5 1.482 25 85
0.7D-20 0.7 12 0.016 31 85
1.3D-20 1.3 9 0.033 31 99
3D-20 3 8 0.049 31 102
5D-20 5 7 0.078 31 103
6D-20 6 6 0.102 31 100
8D-20 8 6 0.128 31 97
10D-20 10 6 0.146 30 97
12D-20 12 5 0.176 30 98
16D-20 16 5 0.191 30 98
Model Rated R Max Steady State Current Residual R Power Dissipation Time Constant
(Ω) (A) (Ω) (mW/ºC) (S)
0.7D-25 0.7 13 0.013 36 124
1.5D-25 1.5 10 0.024 36 124
3D-25 3 9 0.039 38 124
5D-25 5 8 0.063 38 123
8D-25 8 7 0.103 38 123
10D-25 10 7 0.117 38 124
12D-25 12 6 0.140 38 125
16D-25 16 6 0.044 40 125




How to order


In order to help you get the exact model, pls offer the following necessary info:
1.The rated resistance at 25°C: R25°C=________.
2.The B value: B25/50=________ or B25/85=__________.
3.Resistance tolerance:________.
4.The application of ________.
5.The range of operation temperature: ______°C to _______°C




Our Service


1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.
