CE Certificated 451 453 Series NANO2 Very Fast-Acting Subminiature Surface Mount Fuse 2410 6125 1A 125VAC
Part Numbering System
0451 001. M R L

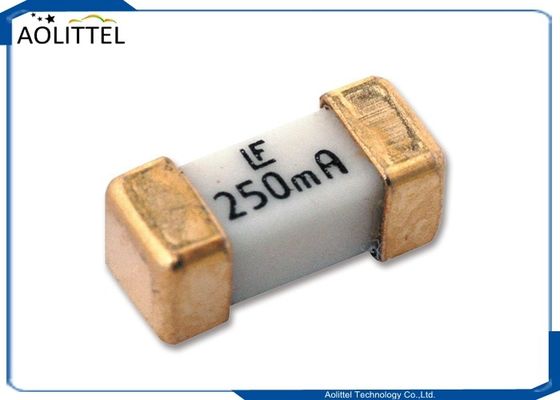

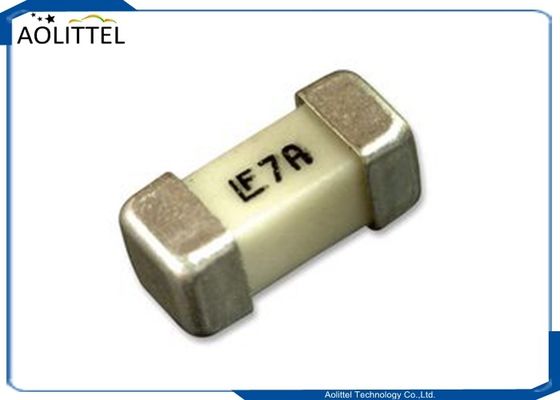

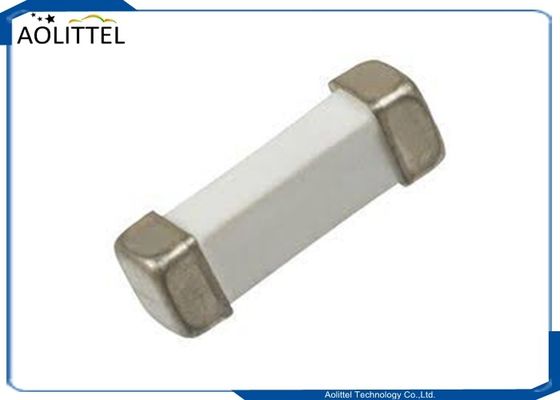

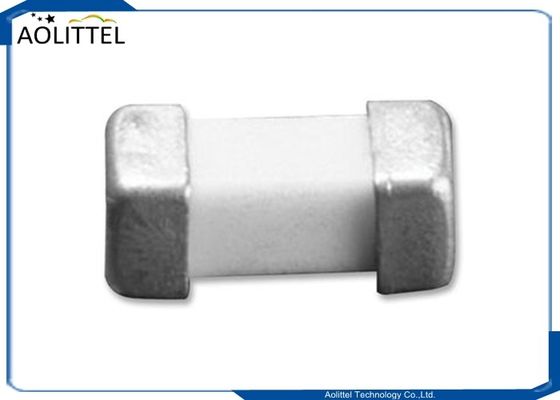

0451 : Series-451 = Gold / SnPb / Silver Plated Caps 453 = Silver Plated Caps
001. : AMP Code : Refer to Electrical characteristics table
M : QUANTITY Code : M = 1000 pcs N = 5000 pcs
R : Package Code -R = Tape and Reel
L: L-RoHS Compliant & Halogen Free (Gold Plated Caps) ; SN-RoHS Compliant & Halogen Free (Sn-dipped Caps)
NOTE: “L” suffix applies to 451 series only - 451 series may be ordered as either “RoHS and HF” (“L” suffix) or non-RoHS (no suffix) version. - 453 series is available only as RoHS compliant version and does not require “L” suffix. Please do not include “L” suffix within 453 series ordering instructions.
Dimensions
Electrical Characteristics for Series
| % of Ampere Rating | Ampere Rating | Opening Time |
| 100% | 0.062 – 20 | 4 hours, Minimum |
| 200% | 0.062 – 10 | 5 sec., Maximum |
| 12 – 20 | 20 sec., Maximum |
Packaging
| Packaging Option | Packaging Specification | Quantity | Quantity & Packaging Code |
| 12mm Tape and Reel | EIA RS-481-2 (IEC 286, part 3) | 1000 | NR |
| 12mm Tape and Reel | EIA RS-481-2 (IEC 286, part 3) | 5000 | MR |
Agency Approvals
| AGENCY | AGENCY FILE NUMBER | AMP RANGE |
| UL | E10480 | 6.3A - 20A |
| CSA | 29862 | 0.062A - 15A |
| PSE |
NBK030205-E10480A/B NBK101105-E184655 |
1A - 5A 6.3A - 10A |
| CUL | E10480 | 0.062A - 5A |
Description
The Nano2® SMF Fuse is a very small, Wire-in-Air (WIA) square shape surface mount fuse that was designed for secondary side circuit over-current protection applications. These fuses are designed for PCB using surface mount technology.
Features
• Very fast-acting • Small size • Wide range of current rating available (0.062A to 20A) • Wide operating temperature range • Low temperature rerating • RoHS compliant and Halogen Free
Application
• Notebook PC • LCD/PDP TV • LCD monitor • LCD/PDP panel • LCD backlight inverter • Portable DVD player • Power supply • Networking • PC server • Cooling fan system • Storage system • Telecom system • Wireless basestation • White goods • Game console • Office Automation equipment • Battery charging circuit protection • Industrial equipment
451/453 Series Fuse Datasheet
