High Voltage Time Delay Ceramic Cartridge Fuses 5x20mm 500V 500mA With Explosion-proof Sand
Description

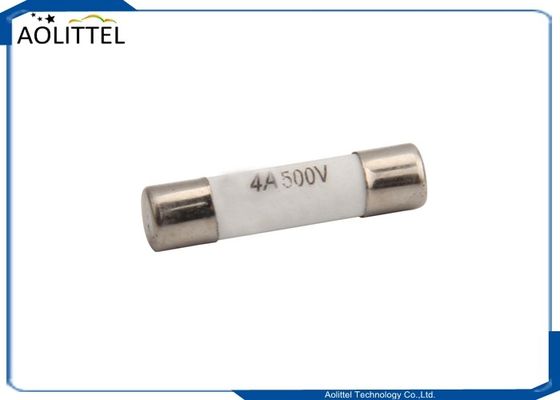

A 500V rated ceramic tube cartridge fuse in a compact 5 x 20mm Package.
Features
- Time-delay, high breaking capacity
- Ceramic tube, Silver plated copper cap construction

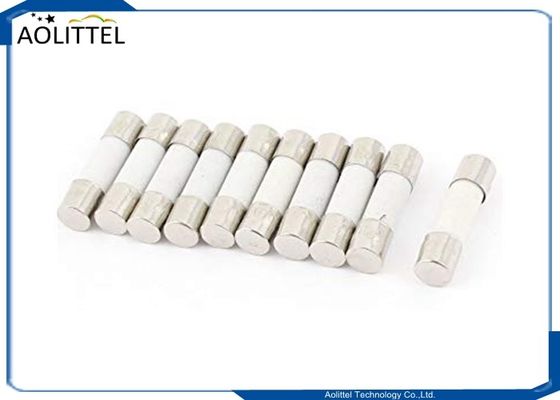

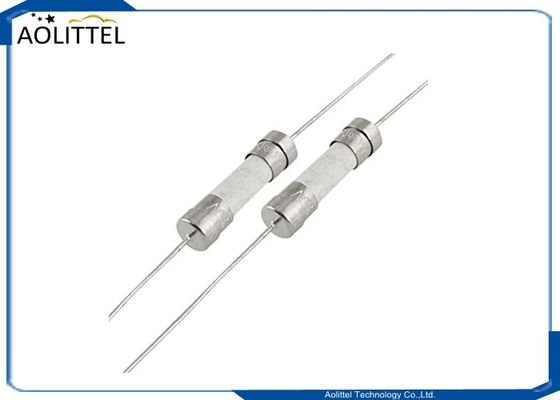

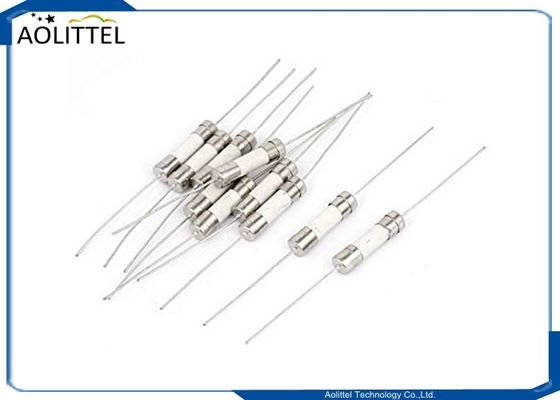

- Available in cartridge and pigtail axial lead
- RoHS 2 compliant
- Halogen Free
- Lead Free
Specification
| Catalog | Ampere | Voltage | Breaking | I2TMelting |
| No. | Rating | Rating | Capacity | Integral(A2.S) |
| 5.5000100A/B | 100mA | 500V | 10000A@125 V AC (200mA~10A); 35A@250V AC (200mA~1A); 100A@250V AC (1.25A~3.5A); 200A@250V AC (4A~10A); 100A@500V AC (4A~10A). | 0.002 |
| 5.5000125A/B | 125mA | 500V | 0.003 | |
| 5.5000160A/B | 160mA | 500V | 0.005 | |
| 5.5000200A/B | 200mA | 500V | 0.01 | |
| 5.5000250A/B | 250mA | 500V | 0.02 | |
| 5.5000300A/B | 300mA | 500V | 0.04 | |
| 5.5000315A/B | 315mA | 500V | 0.045 | |
| 5.5000350A/B | 350mA | 500V | 0.055 | |
| 5.5000400A/B | 400mA | 500V | 0.07 | |
| 5.5000500A/B | 500mA | 500V | 0.1 | |
| 5.5000630A/B | 630mA | 500V | 0.2 | |
| 5.5000750A/B | 750mA | 500V | 0.35 | |
| 5.5000800A/B | 800mA | 500V | 0.45 | |
| 5.5001100A/B | 1A | 500V | 0.9 | |
| 5.5001125A/B | 1.25A | 500V | 1.3 | |
| 5.5001150A/B | 1.5A | 500V | 1.6 | |
| 5.5001160A/B | 1.6A | 500V | 2.5 | |
| 5.5001200A/B | 2A | 500V | 5.8 | |
| 5.5001250A/B | 2.5A | 500V | 7.6 | |
| 5.5001300A/B | 3A | 500V | 8.1 | |
| 5.5001315A/B | 3.15A | 500V | 11 | |
| 5.5001350A/B | 3.5A | 500V | 19 | |
| 5.5001400A/B | 4A | 500V | 28 | |
| 5.5001500A/B | 5A | 500V | 40 | |
| 5.5001600A/B | 6A | 500V | 50 | |
| 5.5001630A/B | 6.3A | 500V | 64 | |
| 5.5001700A/B | 7A | 500V | 107 | |
| 5.5001800A/B | 8A | 500V | 133 | |
| 5.5002100A/B | 10A | 500V | 242 | |
| 5.5002150A/B | 15A | 500V | 368 | |
| 5.5002160A/B | 16A | 500V | 388 | |
| 5.5002200A/B | 20A | 500V | 442 | |
| 5.5002250A/B | 25A | 500V | 568 |
| % of Ampere Rating(In) | Blowing Time |
| 100%* In | 4 hours Min |
| 135%* In | 1 hour Max |
| 200%* In | 5 sec Max |
| Voltage Rating | Agency | Ampere Range | Agency File Number |
| 125V/250V | UL | 200mA ~ 10A | E340427(JDYX) |
| C-UL | 200mA ~ 10A | E340427( JDYX7) |
Applications
- Industrial Power Supplies
- DC/DC modules
Environmental Specifications
Operating Temperature -40℃ to +125℃
Terminal Strength MIL-STD-202G, Method 211 Test Condition A
Lead Solderability MIL-STD-202, Method 208 Mechanical
Vibration MIL-STD-202, Method 201
Thermal Shock MIL-STD-202, Method 107 Test Condition B ( 5 cycles -65℃ to +125℃ )
Humidity MIL-STD-202, Method 103, Test Condition A ( 95%RH and 40℃ for 240 hours )
